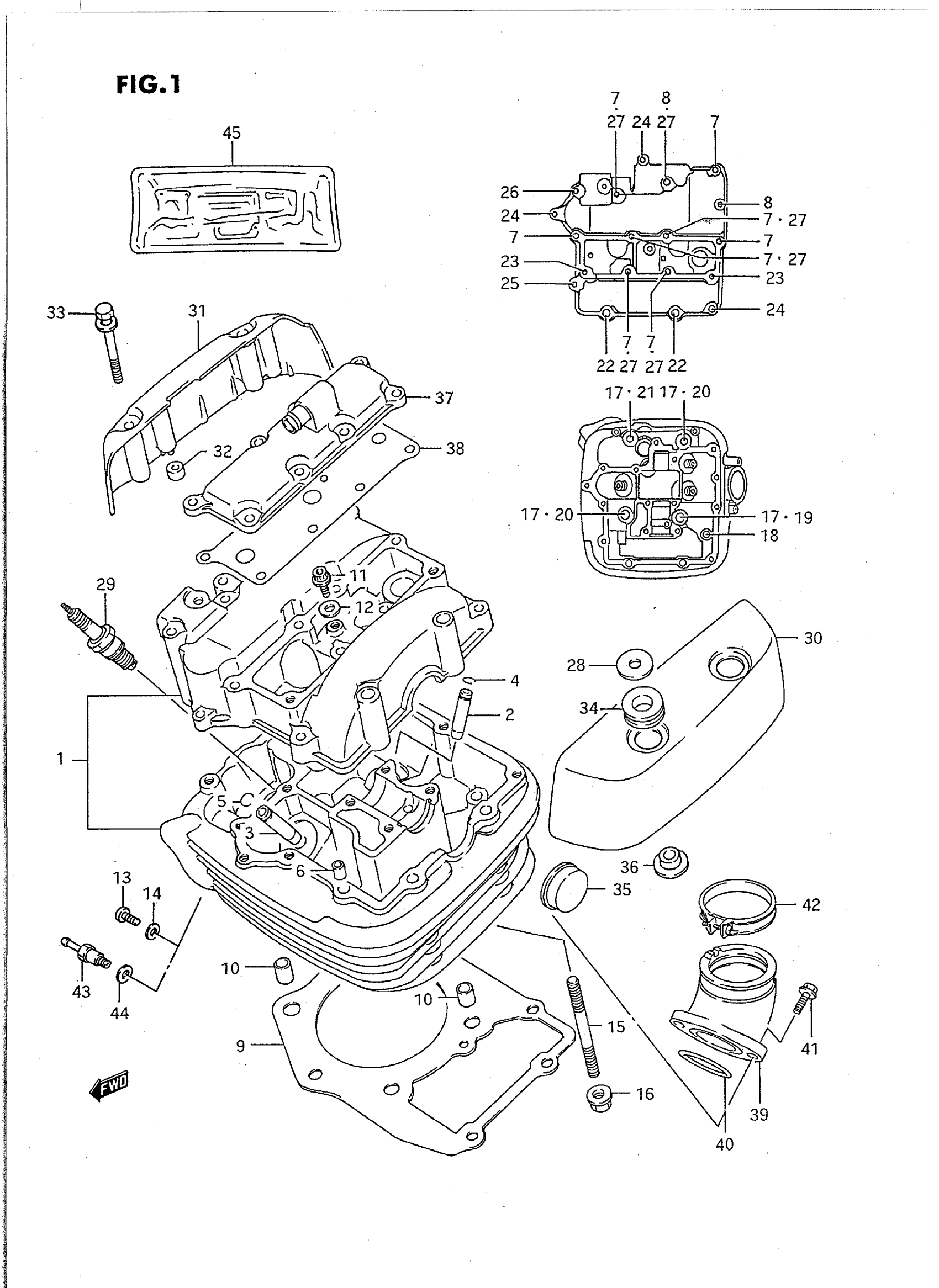

Suzuki VS1400GLPS (1995) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT | MODEL H/J This part replaces 11101-38B00.

11101-38B20

Unavailable

1

HEAD ASSY, CYLINDER FRONT | MODEL L/M/N This part replaces 11101-38B10.

11101-38B20

Unavailable

1

HEAD ASSY, CYLINDER FRONT | MODEL P/R/S; Includes Item(s) 2 - 8

11101-38B20

Unavailable

2

GUIDE, VALVE INTAKE

11115-38B70

Unavailable

3

GUIDE, VALVE EXHAUST

11115-45740

$40.73

4

.RING (10X85)

09381-10004

$1.50

5

RING, VALVE GUIDE EXHAUST

09381-10003

$2.47

6

PIN

09206-08001

$1.78

7

BOLT (6X60) | MODEL H/J/L/M/N/P This part replaces 09103-06111.

09103-06064

$2.12

7

BOLT (6X60) | MODEL R/S

09103-06064

$2.12

8

BOLT (6X55)

09103-06102

$2.10

9

GASKET, CYLINDER HEAD FRONT

11141-38B00

$61.55

10

PIN | MODEL H/J/L/M/N/P This part replaces 09206-13001.

04211-13189

$2.19

10

PIN | MODEL R/S

04211-13189

$2.19

11

BOLT, OIL GALLERY | MODEL H/J/L/M/N/P This part replaces 07120-06125.

07120-0612B

$3.04

11

BOLT, OIL GALLERY | MODEL R/S

07120-06127

$3.85

12

GASKET

09168-06018

$1.77

13

SCREW, INTAKE PORT | MODEL H/J

02112-05087

$1.49

14

GASKET | MODEL H/J

09168-05010

$1.71

15

STUD BOLT (L:30)

09108-08142

$3.18

16

NUT

08316-10087

$2.26

17

WASHER

09160-10039

$2.26

18

BOLT (8X70)

09103-08099

$5.57

19

BOLT (10X180)

09103-10178

$14.74

20

BOLT (10X190)

09103-10179

$15.32

21

BOLT (L:200)

09103-10180

$15.32

22

BOLT (8X268)

09103-08213

$27.75

23

BOLT

01550-06207

$2.30

24

BOLT

01550-06307

$2.69

25

BOLT

01550-06357

$2.77

26

BOLT

01550-06707

$4.30

27

GASKET

09168-06023

$2.35

28

WASHER This part replaces 09160-08098.

09160-08130

$2.03

29

SPARK PLUG (NGK,DPR8EA-9) | MODEL H/J This part replaces 09482-00332.

09482-00334

$3.03

29

SPARK PLUG (ND,X24EP-U9) | MODEL H/J

09482-00333-111

Unavailable

29

SPARK PLUG (NGK,DPR7EA-9) | MODEL H/J/S OPT This part replaces 09482-00352.

09482-00354

$3.32

29

NO DESCRIPTION AVAILABLE | MODEL H/J/S OPT This part replaces 09482-00353-111.

09482-00353

Unavailable

29

SPARK PLUG (NGK,DPR9EA-9) | MODEL H/J/S OPT This part replaces 09482-00328.

09482-00330

$3.11

29

SPARK PLUG (ND,X27EP-U9) | MODEL H/J/S OPT

09482-00329-111

Unavailable

29

SPARK PLUG (NGK,DPR8EA-9) | MODEL L/M/N/P/R/S

09482-00334

$3.03

29

SPARK PLUG (DENSO,X24EPR-U9) | MODEL L/M/N/P/R/S This part replaces 09482-00335-111.

09482-00335

$5.36

29

SPARK PLUG (NGK,DPR7EA-9) | MODEL L/M/N/P/R/S OPT

09482-00354

$3.32

29

SPARK PLUG (NGK,DPR7EA-9) | MODEL L/M/N/P/R/S OPT This part replaces 09482-00355-111.

09482-00354

$3.32

29

SPARK PLUG (NGK,DPR9EA-9) | MODEL L/M/N/P/R/S OPT

09482-00330

$3.11

29

SPARK PLUG (DENSO,X27EPR-U9) | MODEL L/M/N/P/R/S OPT This part replaces 09482-00331-111.

09482-00331

$5.28

30

CAP, HEAD COVER LH

11171-38B00

Unavailable

31

CAP, HEAD COVER RH

11172-38B00

$156.07

32

CUSHION, HEAD COVER CAP

11273-24B00

$4.52

33

BOLT This part replaces 01214-06607.

01244-06607

$3.55

34

CUSHION

09320-13015

$2.85

35

PLUG, CYLINDER HEAD

09241-30008

$7.05

36

BUSH

09301-08007

$6.80

37

COVER, BREATHER | MODEL H/J/L/M/N This part replaces 11180-38B01.

11180-38B10

Unavailable

37

COVER, BREATHER | MODEL P/R/S

11180-38B10

Unavailable

38

GASKET, BREATHER COVER | MODEL H/J/L This part replaces 11177-38B01.

11177-38B01-H17

$12.35

38

GASKET, BREATHER COVER | MODEL M/N/P/R/S

11177-38B01-H17

$12.35

39

PIPE, INTAKE FRONT | Includes Item(s) 40 This part replaces 13101-38B00.

13101-38B01

$87.25

40

O RING

09280-42003

$8.65

41

BOLT | MODEL H/J/L/M/N/P This part replaces 01517-06164.

01550-0616A

$1.97

41

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

42

CLAMP, INTAKE PIPE | MODEL H/J/L/M/N/P This part replaces 13170-05A00.

09402-52501

$10.90

42

CLAMP, INTAKE PIPE | MODEL R/S

09402-52501

$10.90

43

UNION, INTAKE PORT | MODEL L/M/N/P/R/S

09362-06002

Unavailable

44

GASKET | MODEL L/M/N/P/R/S

09168-06018

$1.77

45

GASKET SET | MODEL H/J/L This part replaces 11400-38860.

11400-38865

$317.10

45

GASKET SET | MODEL M/N/P/R This part replaces 11400-38861.

11400-38865

$317.10

45

GASKET SET | MODEL S This part replaces 11400-38862.

11400-38865

$317.10
