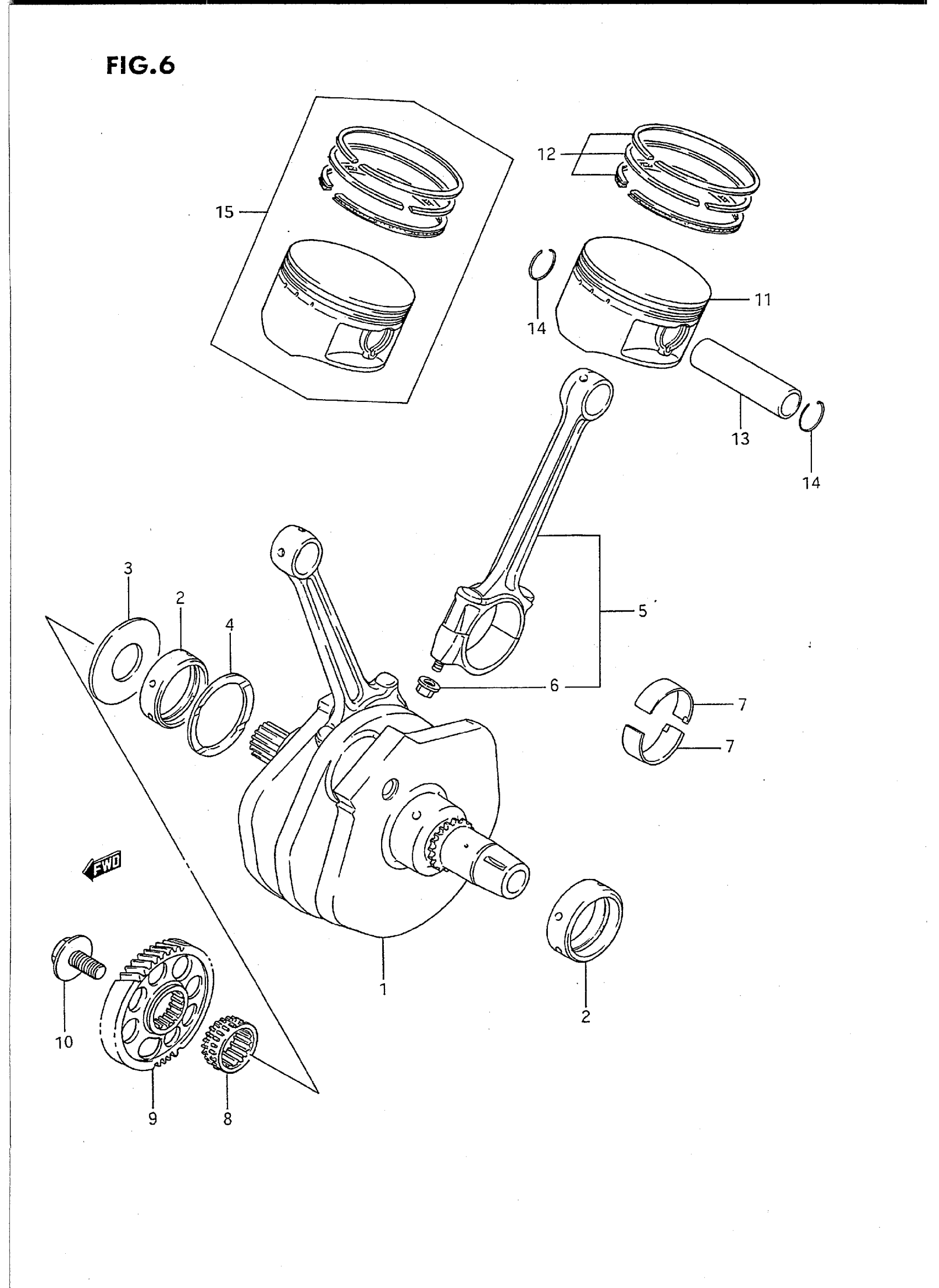

Suzuki VS1400GLPS (1995) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | Includes Item(s) 2 - 2

12000-38820

Unavailable

2

BEARING, CRANK THRUST (NO.1)

12228-38B00-0A0

Unavailable

2

BEARING, CRANK THRUST (NO.2)

12228-38B00-0B0

Unavailable

2

BEARING, CRANK THRUST (NO.3)

12228-38B00-0C0

Unavailable

2

BEARING, CRANK THRUST (NO.4)

12228-38B00-0D0

Unavailable

2

BEARING, CRANK THRUST (NO.5)

12228-38B00-0E0

Unavailable

2

BEARING, CRANK THRUST (NO.6)

12228-38B00-0F0

Unavailable

2

BEARING, CRANK THRUST (NO.7)

12228-38B00-0G0

Unavailable

2

BEARING, CRANK THRUST (NO.8)

12228-38B00-0H0

Unavailable

2

BEARING, CRANK THRUST (NO.9)

12228-38B00-0I0

Unavailable

2

BEARING, CRANK THRUST (NO.10

12228-38B00-0J0

Unavailable

3

BEARING, CRANKSHAFT | INCLUDED CRANK CASE SET

12229-38B00

$30.22

4

WASHER,CRANK THRUST

12652-38B00

Unavailable

5

ROD ASSY, CONNECTING | Includes Item(s) 6

12160-38B00

Unavailable

6

NUT

09159-09001

$4.68

7

BEARING, CRANK PIN (GREEN)

12164-38B01-0A0

Unavailable

7

BEARING, CRANK PIN (BLACK)

12164-38B01-0B0

$12.08

7

BEARING, CRANK PIN (BROWN)

12164-38B01-0C0

$14.20

7

BEARING, CRANK PIN (YELLOW)

12164-38B01-0D0

$14.20

7

BEARING, CRANK PIN (BLUE)

12164-38B01-0E0

Unavailable

8

SPROCKET, CAM CHAIN DRIVE RH

12731-38B00

Unavailable

9

GEAR, PRIMARY DRIVE

21111-38B00

Unavailable

10

BOLT

09103-14010

$17.50

11

PISTON This part replaces 12111-38B03.

12111-38B03-0F0

$140.98

12

RING SET, PISTON

12140-38B30

$52.87

13

PIN, PISTON

12151-24B00

Unavailable

14

CIRCLIP

09381-23003

$1.49

15

PISTON SET (OS:0.5) | OPT

12100-38B00-050

$205.95

15

PISTON SET (OS:1.0) | OPT

12100-38B00-100

Unavailable
