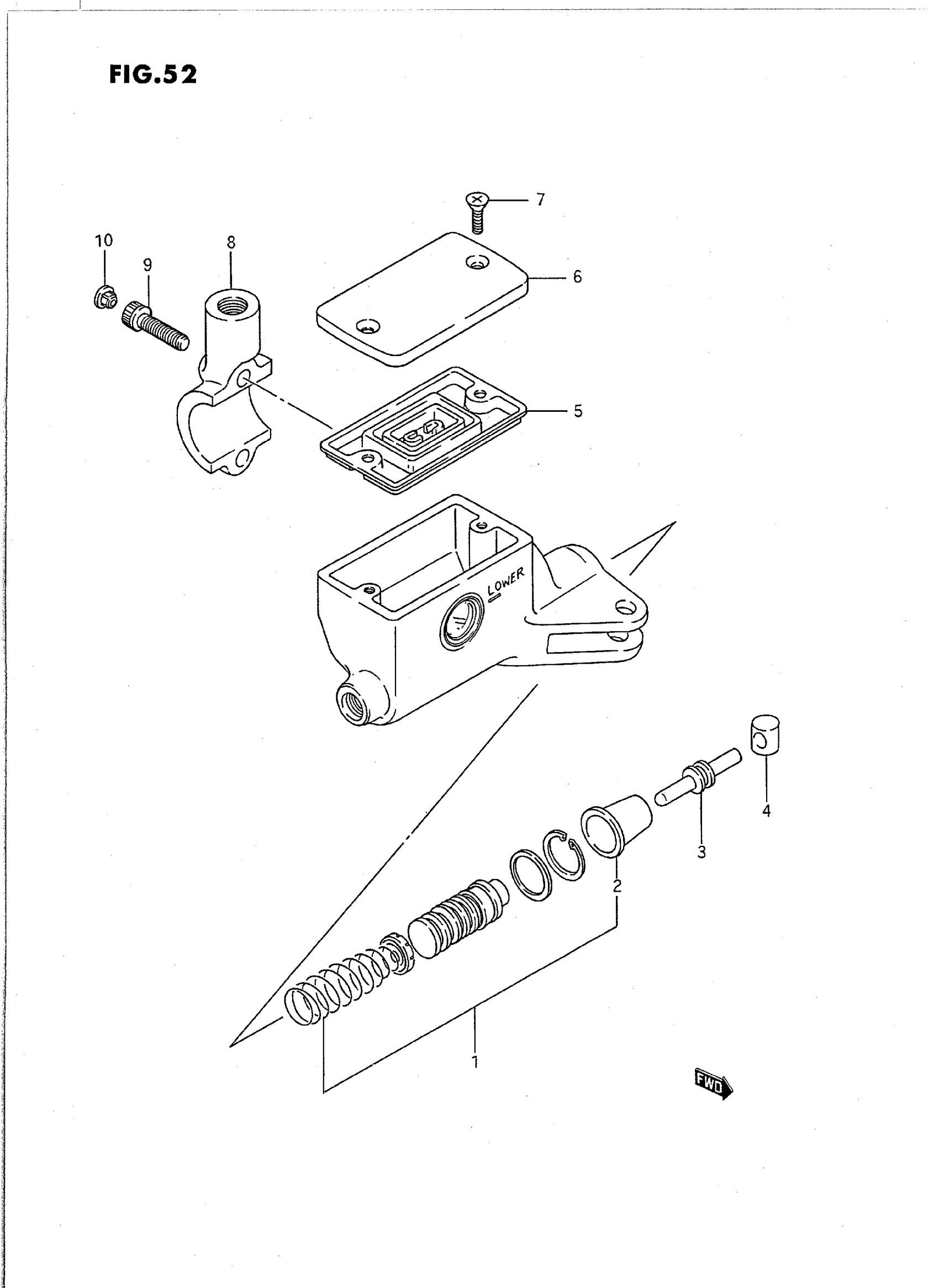

Suzuki VS1400GLPS (1995) CLUTCH CYLINDER (VS1400GLFH) Diagram

#

Description

Price

CYLINDER ASSY,C | Includes Item(s) 1 - 9 This part replaces 59800-38B00.

59800-38B21

Unavailable

1

PISTON & CUP SET

59800-08810

$39.48

2

BOOT

59666-44300

$5.80

3

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.84

4

BUSH

59892-08A00

$5.05

5

DIAPHRAGM

59667-49460

$9.78

6

CAP This part replaces 59669-38B00.

59669-38B10

Unavailable

7

SCREW This part replaces 59691-38A00.

02122-04127

$1.97

8

HOLDER

59671-38A00

$37.11

9

.BOLT This part replaces 07110-06208.

07130-06207

$3.04

10

CAP

09250-05008

$3.76

11

REFER TO FIG.53(H-7) FOR

SPECIAL NOTE

Unavailable
