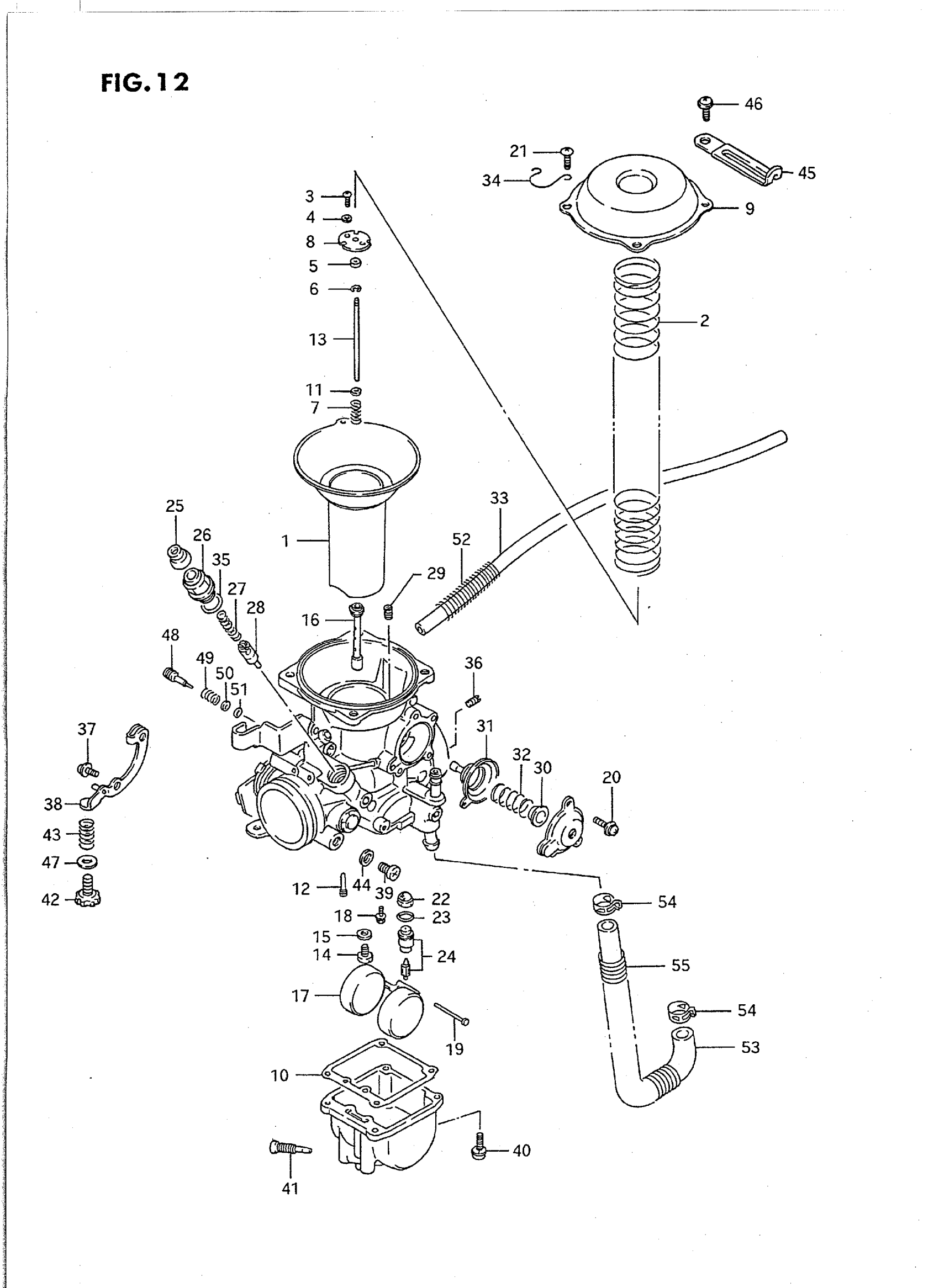

Suzuki VS1400GLPS (1995) CARBURETOR (REAR) Diagram

#

Description
Price

CARBURETOR ASSY, REAR | MODEL H/J This part replaces 13220-38B00.

13220-38B40

Unavailable

CARBURETOR ASSY, REAR | MODEL L/M/N/P/R/S

13220-38B40

Unavailable

CARBURETOR ASSY, REAR | MODEL H/J,CALIFORNIA ONLY This part replaces 13220-38B10.

13220-38B50

Unavailable

CARBURETOR ASSY, REAR | MODEL L/M/N/P/R/SCALIFORNIA ONLY; Includes Item(s) 1 - 49

13220-38B50

Unavailable

1

DIAPHRAGM ASSY

13500-38A10

$167.50

2

SPRING

13503-05A10

$12.57

3

SCREW | MODEL H/J/L/M/N/P This part replaces 02112-03068.

02112-0306B

$1.59

3

SCREW | MODEL R/S This part replaces 02112-03063.

02112-0306B

$1.59

4

WASHER,LOCK | MODEL H/J/L/M/N/P This part replaces 08321-21038.

09162-03001

$1.49

4

LOCK WASHER | MODEL R/S This part replaces 08321-21033.

08321-2103B

$1.49

5

RING

13387-47010

$7.22

6

E RING

13394-10010

$5.45

7

SPRING

13388-44030

$8.12

8

PLATE

13389-37400

$7.08

9

COVER This part replaces 13502-38A10.

13502-45CE0

$41.05

10

GASKET

13251-38A10

$7.69

11

WASHER

13382-44030

$3.71

12

JET, PILOT (57.5) | MODEL H/J

09492-57004

Unavailable

12

JET, PILOT (55) | MODEL L/M/N/P/R/S

09492-55014

$17.37

13

NEEDLE, JET (5D35-1)

13383-38B00

$18.43

14

.JET, MAIN (#140)

09491-28010

$9.69

15

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

16

JET, NEEDLE (P-2)

09494-00571

Unavailable

17

FLOAT

13252-23010

$20.65

18

SCREW

13602-05A10

$3.56

19

PIN

13254-92311

$2.07

20

SCREW | MODEL H/J/L/M/N/P This part replaces 02112-04106.

02112-0410A

$1.49

20

SCREW | MODEL R/S This part replaces 02112-04103.

02112-0410A

$1.49

21

SCREW | MODEL H/J/L/M/N/P This part replaces 02112-04086.

02112-0408A

$1.49

21

SCREW | MODEL R/S This part replaces 02112-04083.

02112-0408A

$1.49

22

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

23

O RING This part replaces 13374-44080.

13374-35C00

$5.99

24

VALVE ASSY, NEEDLE | MODEL H/J/L/M/N

13370-38B00

$58.10

24

VALVE ASSY, NEEDLE | MODEL P/R/S

13370-39A00

$60.40

25

.CAP This part replaces 13681-04010.

13681-04011

$4.93

26

HOLDER, GUIDE

13418-43410

$7.22

27

SPRING

13417-22010

$3.56

28

PLUNGER ASSY

13411-01400

$13.30

29

JET, PILOT AIR (2.0) | MODEL H/J

09493-40002

Unavailable

29

JET, PILOT AIR (1.55) | MODEL L/M/N/P/R/S

09493-31001

$16.87

30

PLATE | MODEL H/J

13482-37300

Unavailable

31

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

32

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 13481-38B00.

13481-38B90

Unavailable

32

SPRING | MODEL L/M/N/P/R/S

13481-38B40

$5.67

33

HOSE ASSY, FUEL | <-13683-42A20,L:225->175 This part replaces 13683-38A20.

13683-38A21

$61.07

34

CLIP

13692-02500

$7.17

35

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

36

JET, ENRICHMENT | MODEL H/J This part replaces 09492-60010.

09492-60012

Unavailable

36

JET, PILOT AIR (40) | MODEL L/M/N/P/R/S This part replaces 09492-40019.

09492-40018

$18.02

37

SCREW

13602-05A30

$4.35

38

LEVER ASSY This part replaces 13554-38B00.

13554-45C20

$41.63

39

SCREW

13605-73000

$11.95

40

SCREW

13601-04148

$2.81

41

SCREW, DRAIN | MODEL H/J/L/M/N/P This part replaces 13247-38B00.

13247-02340

$4.99

41

SCREW, DRAIN | MODEL R/S This part replaces 13247-13A00.

13247-02340

$4.99

42

ADJUSTER This part replaces 13267-38A10.

13267-39E50

$14.20

43

SPRING

13271-93011

$5.32

44

WASHER

13249-78100

$2.92

45

CLAMP(L:80) This part replaces 13671-05A20.

09404-06036

$1.74

46

SCREW This part replaces 13602-38A20.

02142-0408B

$1.70

47

WASHER

13277-37100

$2.15

48

HOSE (5X8X430) | CALIFORNIA ONLY This part replaces 13683-38B10.

13683-38B01

$34.98

49

SPRING | MODEL L/M/N/P/R/S

13446-38B00

Unavailable

50

HOSE, FUEL (PUMP & CARB) This part replaces 15801-38B00.

15801-38B01

$17.54

51

CLIP | MODEL H/J/L/M/N/P/R This part replaces 09401-12406.

09401-11415

$2.23

51

CLIP | MODEL S This part replaces 09401-12407.

09401-12405

$2.26

52

SPRING

09440-14030

$6.24
