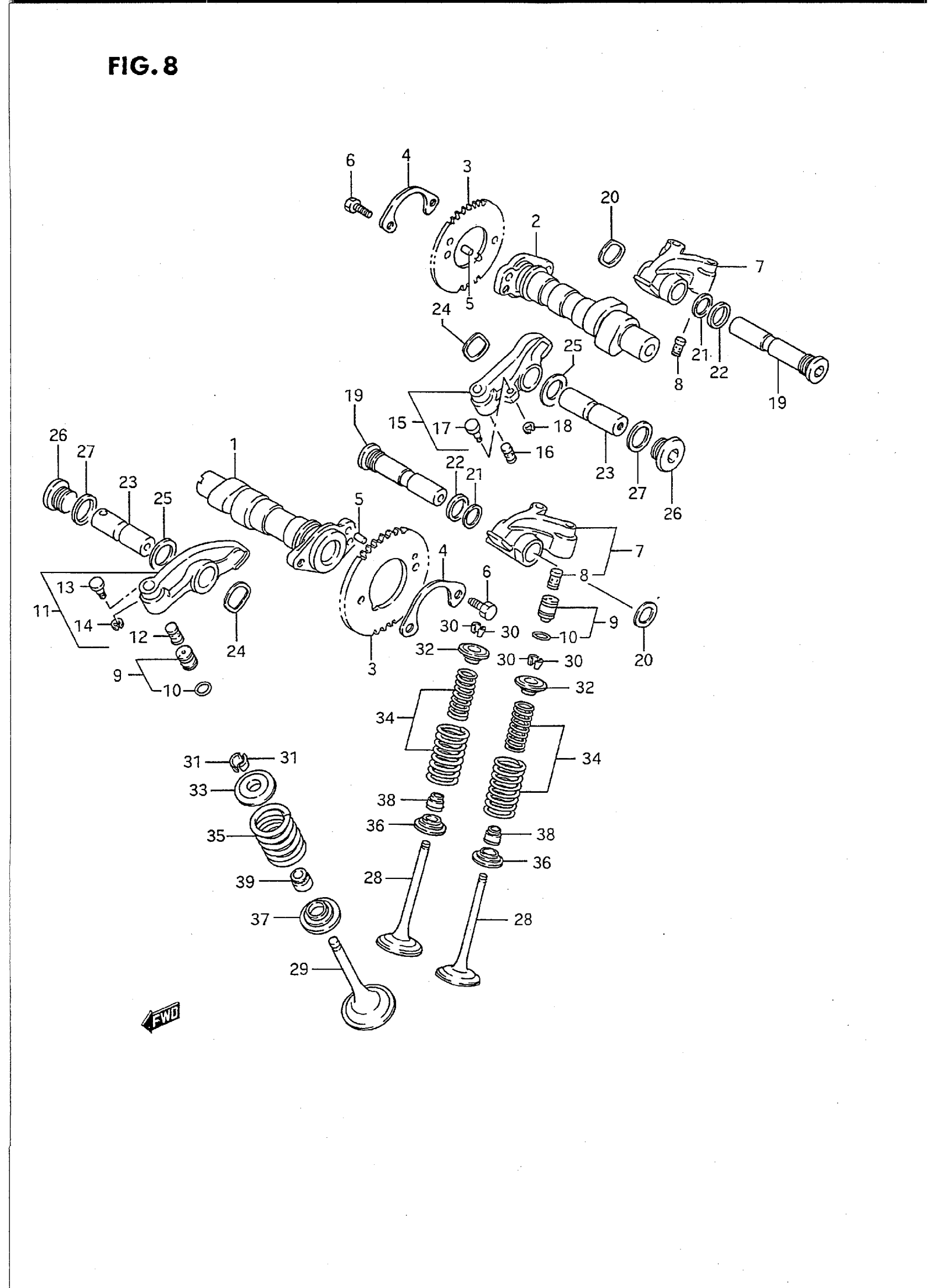

Suzuki VS1400GLPS (1995) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT, FRONT

12711-38B00

Unavailable

2

CAMSHAFT, REAR

12713-38B00

Unavailable

3

SPROCKET, CAMSHAFT This part replaces 12741-38B00.

12741-38B01

Unavailable

4

WASHER This part replaces 12747-44000.

12747-44001

$2.50

5

PIN

04221-05109

$1.49

6

BOLT

09111-06027

$1.72

7

ARM, VALVE ROCKER,IN | Includes Item(s) 8

12840-38B01

Unavailable

8

CHAMBER, ADJUSTER

12863-38B00

$7.95

9

ADJUSTER, VALVE LASH | Includes Item(s) 10 This part replaces 12860-38B00.

12860-38B01

$86.13

10

O RING This part replaces 12864-38B00.

12864-38B01

$8.18

11

ARM, VALVE ROCKER FRONT,EX | Includes Item(s) 12 - 14

12850-38B02

Unavailable

12

CHAMBER, ADJUSTER

12863-38B00

$7.95

13

PIN, DECOMP

12844-38B00

Unavailable

14

E RING This part replaces 08332-11033.

08332-1103A

$2.15

15

ARM, VALVE ROCKER REAR,EX | Includes Item(s) 16 - 18

12880-38B01

Unavailable

16

CHAMBER, ADJUSTER

12863-38B00

$7.95

17

PIN, DECOMP

12844-38B00

Unavailable

18

E RING This part replaces 08332-11033.

08332-1103A

$2.15

19

SHAFT, VALVE ROCKER ARM,IN

12861-38B00

Unavailable

20

WASHER, WAVE

09164-14012

Unavailable

21

WASHER (14X20X1.0) This part replaces 08211-14201.

09181-14139

$2.60

22

GASKET

09168-16003

$1.91

23

SHAFT, VALVE ROCKER ARM,EX

12871-38B00

Unavailable

24

WASHER, WAVE

09164-16003

$2.45

25

WASHER

09160-16033

$2.90

26

PLUG, ROCKER ARM SHAFT

09248-18004

$15.42

27

GASKET

09168-18003

$1.49

28

VALVE, INTAKE

12911-38B00

$59.87

29

VALVE, EXHAUST

12912-38B00

$71.38

30

COTTER, VALVE

12932-24400

$1.94

31

COTTER, VALVE,EX

12932-82000

$3.05

32

RETAINER, SPRING This part replaces 12931-33200.

12931-33201

$8.28

33

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$8.12

34

SPRING SET, VALVE,IN

12920-06B00

$13.81

35

SPRING, VALVE,EX

12922-44110

Unavailable

36

SEAT, SPRING | MODEL H/J/L/M/N/P This part replaces 12933-33200.

12933-33201

$6.05

36

SEAT, SPRING,IN | MODEL R/S

12933-33201

$6.05

37

SEAT, SPRING,EX

12933-45001

$6.27

38

OIL SEAL,IN

09289-05015

$6.70

39

OIL SEAL,EX

09289-07002

$7.98
