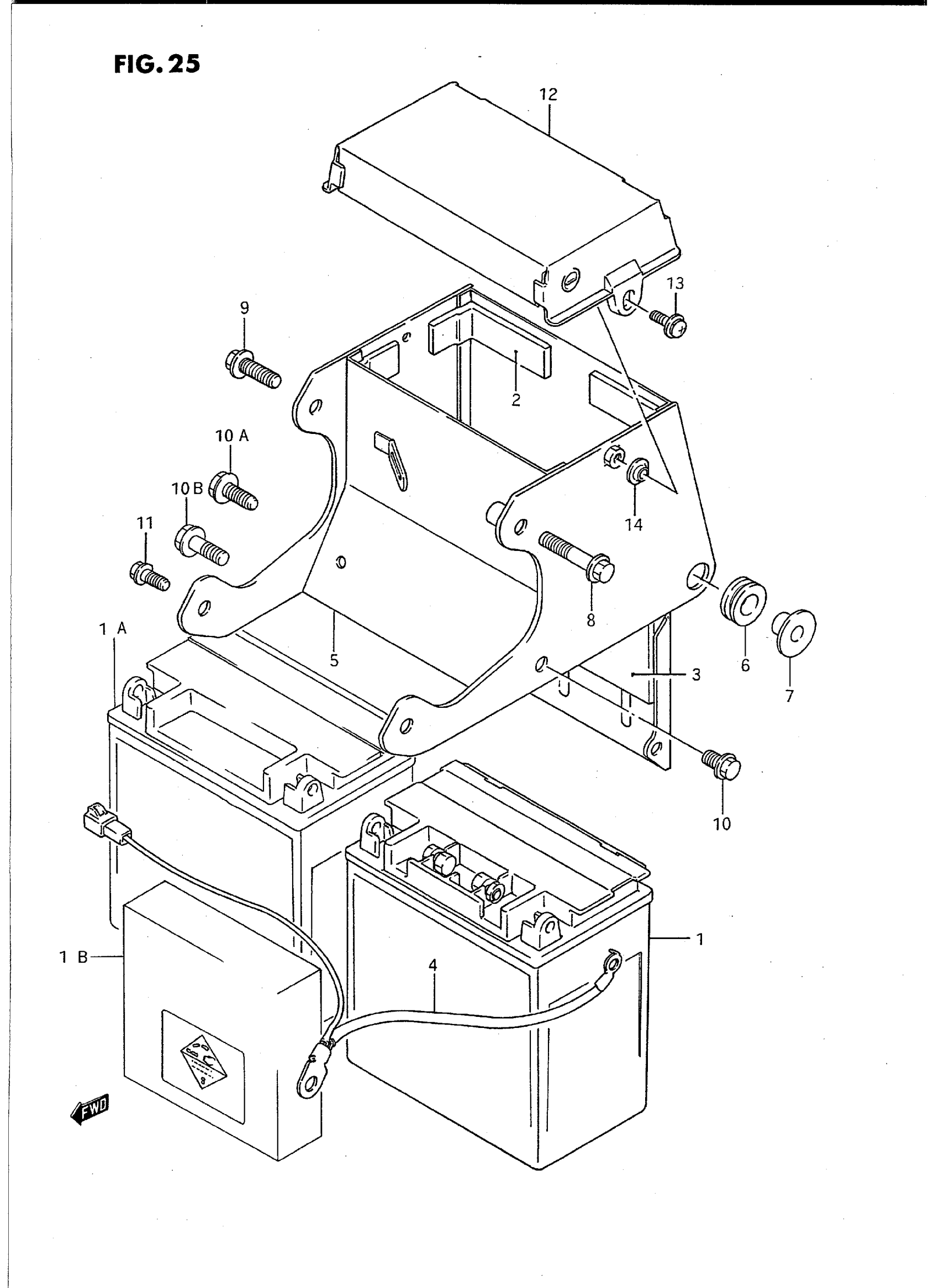

Suzuki VS1400GLPS (1995) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,14AH) | MODEL H/J/L/M/N/P/R->33611-38B30 BATTERY ONLYMUST ALSO USE:33619-38B30 ELECTROLYTE ONLY This part replaces 33610-38B30.

33610-38B50

$119.06

1A

BATTERY ASSY (12V,14AH) | MODEL S This part replaces 33611-38B60.

33610-38B50

$119.06

1B

ELECTROLYTE, BATTERY | MODEL S

33619-38B60

Unavailable

2

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

3

CUSHION, BATTERY | CUT AS REQUIRED PROFILE(60X130)

33651-37000

$4.48

4

WIRE, BATTERY (-) LEAD

33860-38B00

$19.72

5

HOLDER, BATTERY This part replaces 41540-38B00.

41540-38B02

$111.78

6

CUSHION

09320-12042

$3.40

7

SPACER

09301-08009

$5.08

8

BOLT, UPPER,L

09103-08222

$2.85

9

BOLT | MODEL H/J/L/M/N/P This part replaces 01517-08205.

01550-0820A

$2.23

9

BOLT | MODEL R/S This part replaces 01550-08203.

01550-0820A

$2.23

10

BOLT (8X12) | MODEL H/J/L/M/N/P This part replaces 01517-08125.

01550-0812A

$2.32

10

BOLT | MODEL R/S This part replaces 01550-08203.

01550-0820A

$2.23

10A

BOLT | MODEL H/J/L/M/N/P This part replaces 01807-08185.

01550-0820A

$2.23

10B

BOLT | MODEL R/S This part replaces 01550-08203.

01550-0820A

$2.23

11

BOLT | MODEL H/J/L/M/N/P This part replaces 01517-06164.

01550-0616A

$1.97

11

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

12

COVER, BATTERY

33658-38B00

$14.20

13

SCREW

09138-05012

$2.07

14

WASHER

09169-05014

$3.32
