2003 Suzuki VS1400GLP Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2003 Suzuki VS1400GLP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

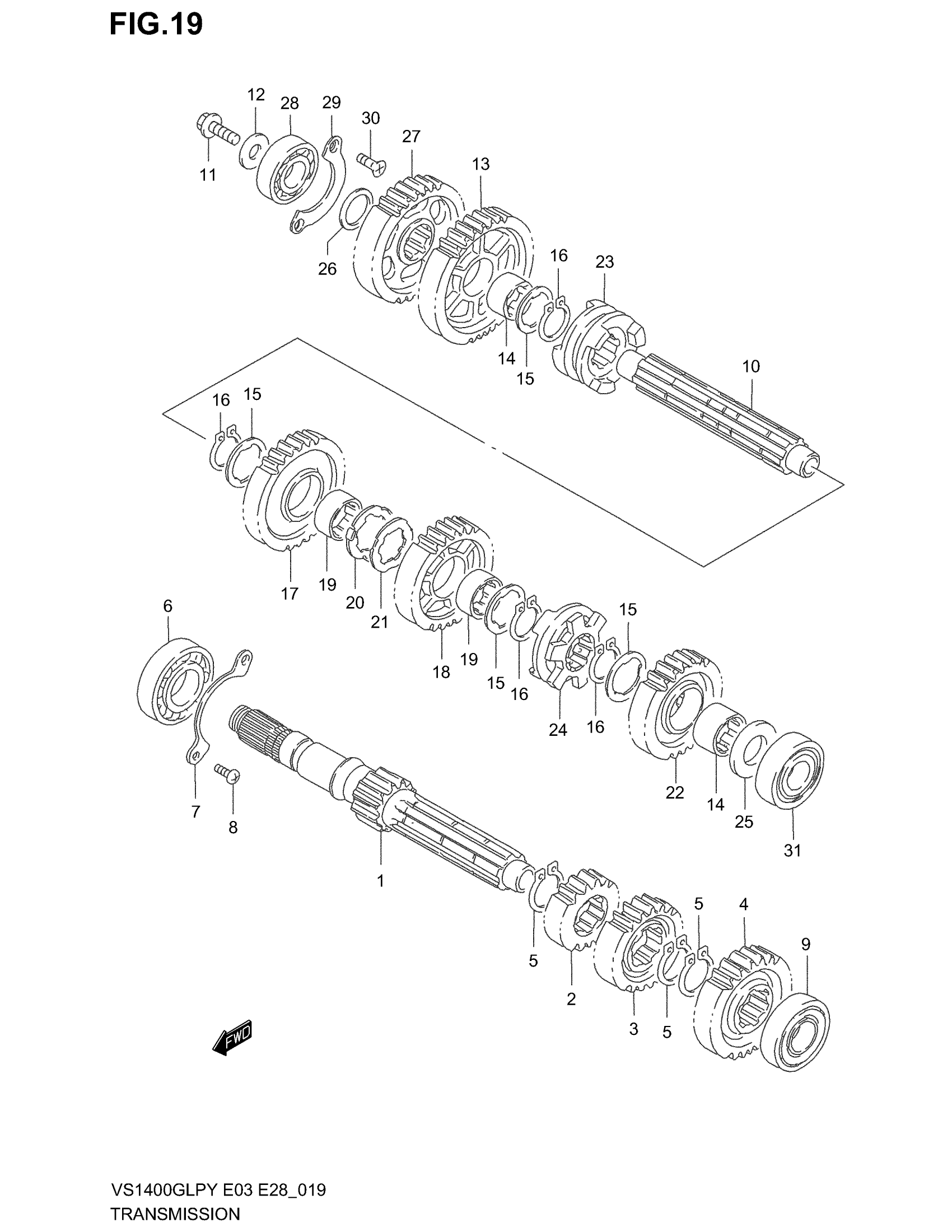

2003 Suzuki VS1400GLP Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12)

24120-38B01

1
Out of stock

2

GEAR, 2ND DRIVE (NT:17)

24221-38B00

1
Out of stock

3

GEAR, 3RD DRIVE (NT:21)

24231-38B00

1
Out of stock

4

GEAR, 4TH DRIVE (NT:24)

24241-38B00

1
Out of stock

5

CIRCLIP This part replaces 08331-31286.

08331-31289

3
Out of stock

6

BEARING, RH

09262-25080

1
Out of stock

7

RETAINER

24741-38A00

1
Out of stock

8

SCREW This part replaces 02112-06123.

02112-0612A

2
Out of stock

9

BEARING, LH

09262-20080

1
Out of stock

10

DRIVESHAFT

24131-38B01

1
Out of stock

11

BOLT

09103-10112

1
Out of stock

12

WASHER

08211-10305

1
Out of stock

13

GEAR, 1ST DRIVEN (NT:36)

24311-38B00

1
Out of stock

14

BUSH, 1ST/2ND

24332-24A00

2
Out of stock

15

WASHER

09167-28001

4
Out of stock

16

CIRCLIP This part replaces 08331-31286.

08331-31289

4
Out of stock

17

GEAR, 2ND DRIVEN (NT:31) This part replaces 24321-38B10.

24321-38B20

1
Out of stock

18

GEAR, 3RD DRIVEN (NT:28)

24331-38B00

1
Out of stock

19

BUSH, 3RD/4TH

24332-49000

2
Out of stock

20

LOCK WASHER, RH

09169-28001

1
Out of stock

21

LOCK WASHER, RH

09167-28002

1
Out of stock

22

GEAR, 4TH DRIVEN (NT:25)

24341-38B00

1
Out of stock

23

DOG, SLIDING NO.1

24411-38B01

1
Out of stock

24

DOG, SLIDING NO.2

24421-38B01

1
Out of stock

25

WASHER

08211-20382

1
Out of stock

26

WASHER (22X32X3)

09160-22032

1
Out of stock

27

GEAR, OVERDRIVING (NT:34)

24621-38B00

1
Out of stock

28

BEARING, RH (22X56X16)

09262-22025

1
Out of stock

29

RETAINER

24741-38401

1
Out of stock

30

SCREW This part replaces 02122-06123.

02122-0612A

2
Out of stock

31

BEARING, LH (20X52X15)

09262-20080

1
Out of stock
