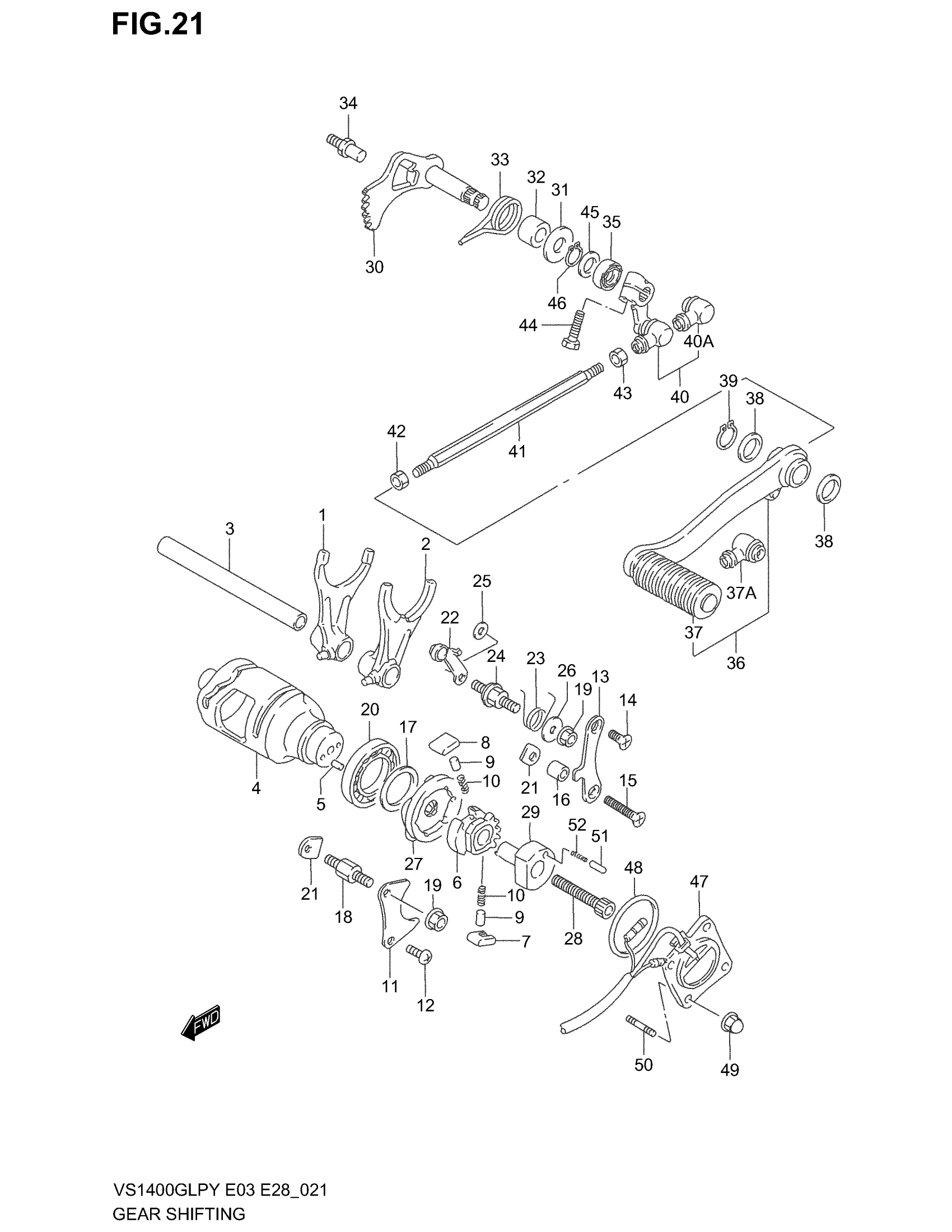

Find the part on the Gear Shifting diagram for your 2003 Suzuki VS1400GLP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki VS1400GLP Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 25211-38B00.

25211-38B01

1
Out of stock

2

FORK, GEAR SHIFTING NO.2

25221-38B00

1
Out of stock

3

SHAFT, GEAR SHIFTING FORK

25411-38B01

1
Out of stock

4

CAM, GEAR SHIFTING | Includes Item(s) 5

25310-38B01

1
Out of stock

5

PIN (4X13.8)

04221-04089

2
Out of stock

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

7

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

8

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

9

PIN

09261-05003

2
Out of stock

10

SPRING

09440-04003

2
Out of stock

11

LIFTER, PAWL

25331-38B00

1
Out of stock

12

SCREW This part replaces 02112-06123.

02112-0612A

1
Out of stock

13

GUIDE, CAM

25341-38B00

1
Out of stock

14

SCREW This part replaces 02122-06123.

02122-0612A

1
Out of stock

15

SCREW This part replaces 02122-06303.

02122-0630B

1
Out of stock

16

SPACER This part replaces 09180-06169.

09180-06293

1
Out of stock

17

WASHER

09160-25059

1
Out of stock

18

BOSS

25332-38A00

1
Out of stock

19

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

20

BEARING (25X47X8)

09262-25006

1
Out of stock

21

RETAINER, BEARING

24741-21A00

2
Out of stock

22

STOPPER, CAM

25350-38B00

1
Out of stock

23

SPRING

09448-17024

1
Out of stock

24

SUPPORT

25356-12C00

1
Out of stock

25

WASHER

08211-06141

1
Out of stock

26

WASHER (6.5X18X2) This part replaces 09160-06013.

09160-06121

1
Out of stock

27

PLATE, STOPPER

25380-38B00

1
Out of stock

28

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

1
Out of stock

29

HOLDER, NEUTRAL SWITCH

25312-38B01

1
Out of stock

30

SHAFT, GEAR SHIFTING

25510-38B00

1
Out of stock

31

WASHER (12.5X28X1.2) This part replaces 09160-12063.

09160-12091

1
Out of stock

32

SPACER (12X20X15.3)

09180-12068

1
Out of stock

33

SPRING

09444-26021

1
Out of stock

34

STOPPER, ARM

25671-38B00

1
Out of stock

35

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

36

LEVER ASSY,GEAR | Includes Item(s) 37 - 37A This part replaces 25600-38B01.

25600-38B02

1
Out of stock

37

RUBBER

25652-38B00

1
Out of stock

37A

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

38

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

2
Out of stock

39

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

1
Out of stock

40

ARM,GEAR SHIFT LINK | Includes Item(s) 40A This part replaces 25520-38B00.

25520-38B01

1
Out of stock

40A

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

41

ROD

25525-38B00

1
Out of stock

42

NUT

09140-06011

1
Out of stock

43

.NUT

08310-00067

1
Out of stock

44

BOLT

01500-06207

1
Out of stock

45

SHIM (12X20X1) This part replaces 08211-12201.

09181-12167

1
Out of stock

46

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

47

BODY, SWITCH

37720-38B00

1
Out of stock

48

O RING (D:2.4,ID:35.5)

09280-35006

1
Out of stock

49

NUT This part replaces 08313-20053.

08313-2005A

4
Out of stock

50

STUD BOLT

09108-05010

4
Out of stock

51

CONTACT, SWITCH

09209-04021

1
Out of stock

52

SPRING

09440-02003

1
Out of stock
