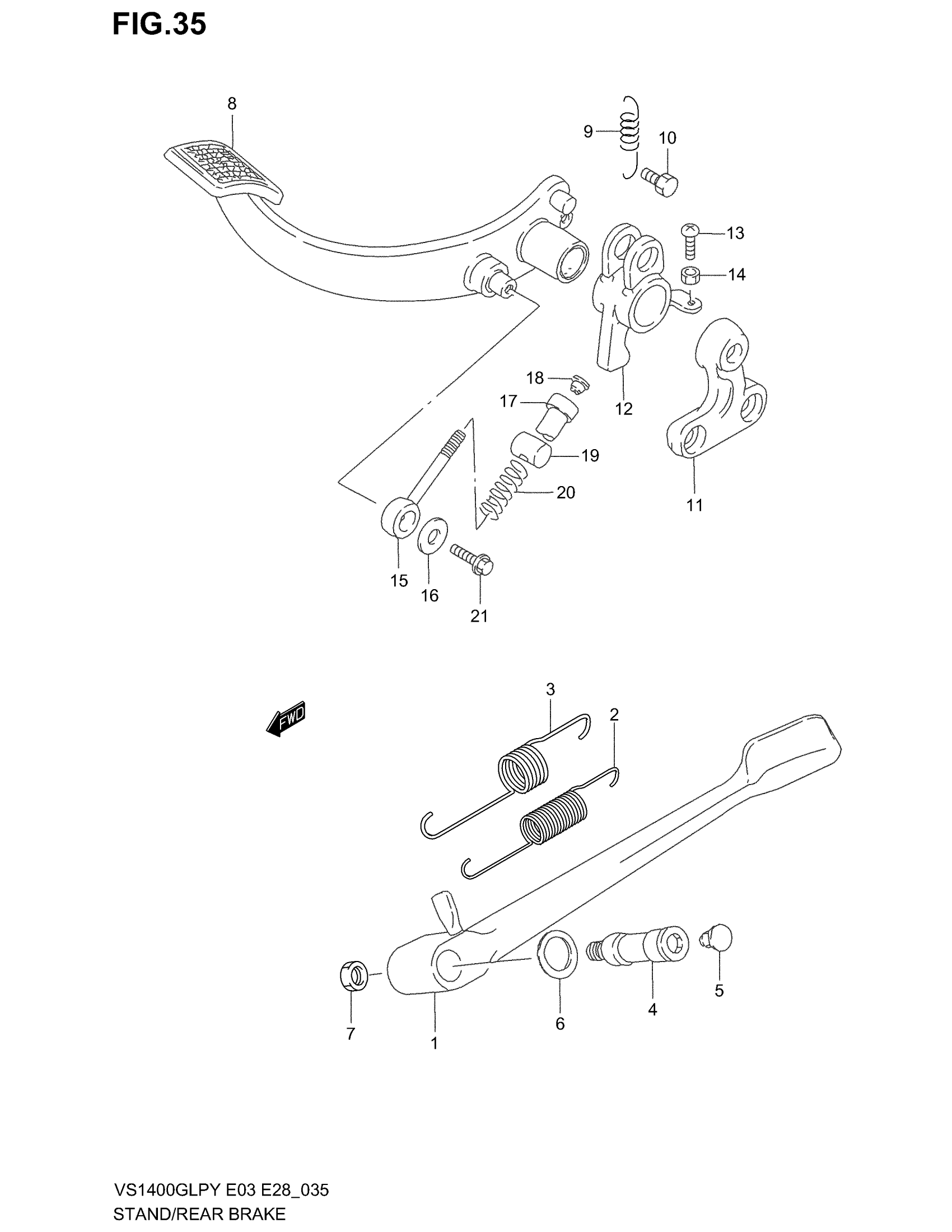

Suzuki VS1400GLP (2003) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP | MODEL T/V This part replaces 42310-38B00.

42310-38B01

Unavailable

1

STAND, PROP | MODEL W/X/Y/K1/K2/K3

42310-38B01

Unavailable

1

STAND, PROP | OPT STAINLESS STEEL

42310-38B90

Unavailable

2

SPRING, INNER

09443-16014

$6.80

3

SPRING, OUTER

09443-22007

$7.05

4

BOLT

42341-38B01

$13.67

5

CAP

09250-08014

$2.85

6

SHIM | MODEL T This part replaces 08221-15245.

09181-15158

$3.03

6

SHIM | MODEL V/W/X/Y/K1/K2/K3

09181-15158

$3.03

7

NUT

09140-10044

$3.03

8

PEDAL ASSY, BRAKE

43100-38B00

Unavailable

9

SPRING

09443-10033

$3.78

10

BOLT

09128-06044

$1.49

11

BRACKET, BRAKE PEDAL BOSS

43519-38B01

Unavailable

12

LEVER, REAR BRAKE

43120-38B02

Unavailable

13

SCREW, STOP SWITCH ADJUSTER

09125-05070

Unavailable

14

NUT

08310-00057

$1.84

15

LINK, BRAKE PEDAL

43271-38B00

Unavailable

16

WASHER

09160-06036

$2.28

17

NUT, BRAKE PEDAL LINK

43272-38B00

$16.87

18

CAP

09250-05008

$3.76

19

PIN

09209-13008

Unavailable

20

SPRING

09440-09029

$2.98

21

BOLT

01547-06167

$1.65
