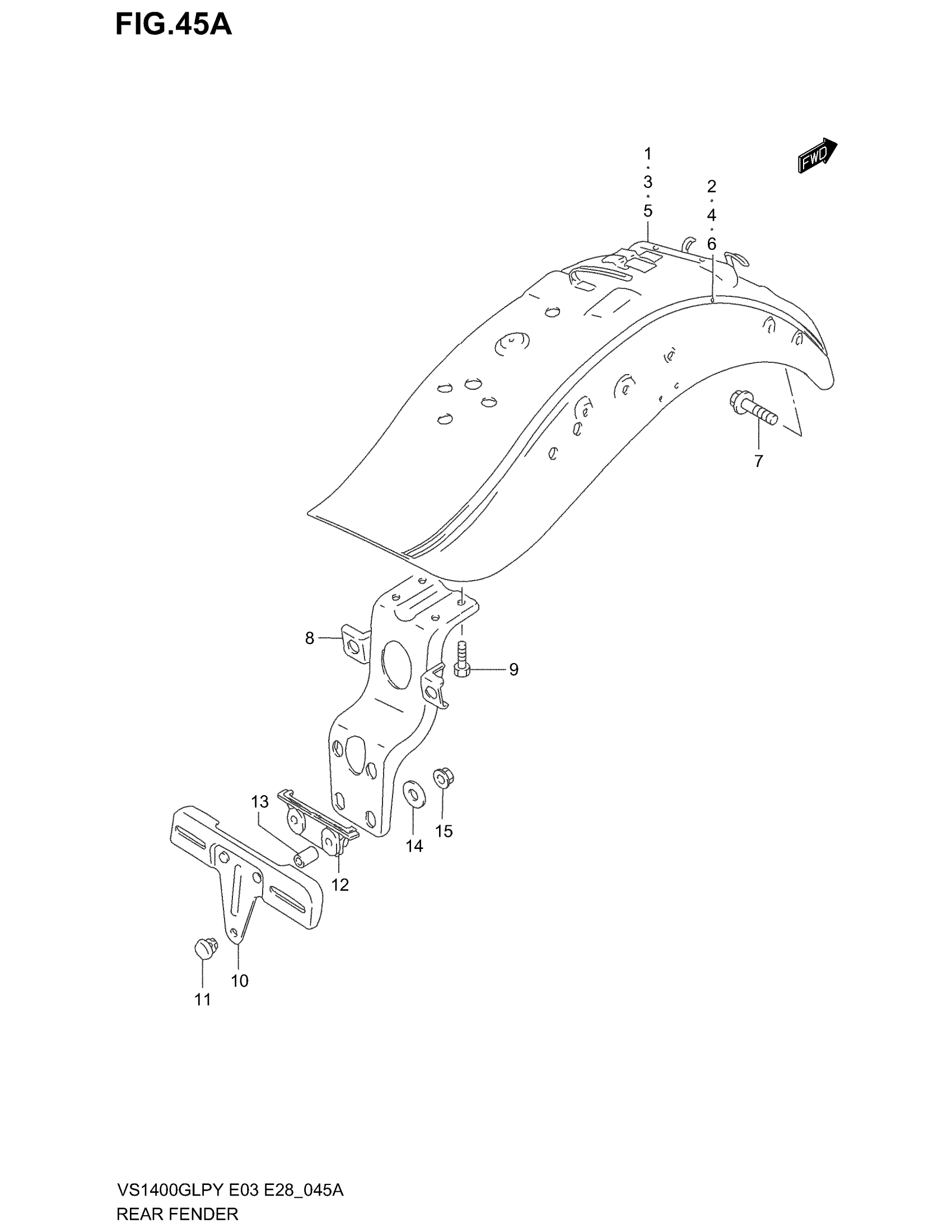

Suzuki VS1400GLP (2003) REAR FENDER (MODEL V/W/X) Diagram

#

Description
Price

1

FENDER, REAR | MODEL V This part replaces 63100-38B00-E6L.

63100-38B00-E88

Unavailable

1

FENDER, REAR | MODEL V

63100-38B00-G2F

Unavailable

1

FENDER, REAR | MODEL W; Includes Item(s) 2 - 2

63100-38B00-G2P

Unavailable

2

TAPE SET | MODEL V FOR E6L

68170-38B01-G2V

Unavailable

2

TAPE SET | MODEL V FOR G2F

68170-38B01-G2F

Unavailable

2

TAPE SET | MODEL W FOR G2P

68170-38B01-J5S

Unavailable

3

FENDER, REAR | MODEL W; Includes Item(s) 4

63100-38B10-G2E

Unavailable

4

TAPE SET | MODEL W FOR G2E

68170-38B11-G2W

Unavailable

5

FENDER, REAR | MODEL X

63100-38B00-E88

Unavailable

5

FENDER, REAR | MODEL X; Includes Item(s) 6 - 6

63100-38B00-G2P

Unavailable

6

TAPE SET | MODEL X FOR E88

68170-38B01-L3U

Unavailable

6

TAPE SET | MODEL X FOR G2P

68170-38B01-J5S

Unavailable

7

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

8

BRACKET, LAMP

63460-38B00

$104.18

9

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

10

PLATE, LICENSE This part replaces 63463-38B00.

63463-38B10

$45.38

11

CUSHION This part replaces 09321-08005.

09321-08025

$2.38

12

CUSHION, PLATE

63464-38B00

$17.23

13

SPACER

09180-05050

$4.68

14

WASHER

09160-05501

$1.84

15

NUT This part replaces 08316-20053.

08316-2005A

$2.19
