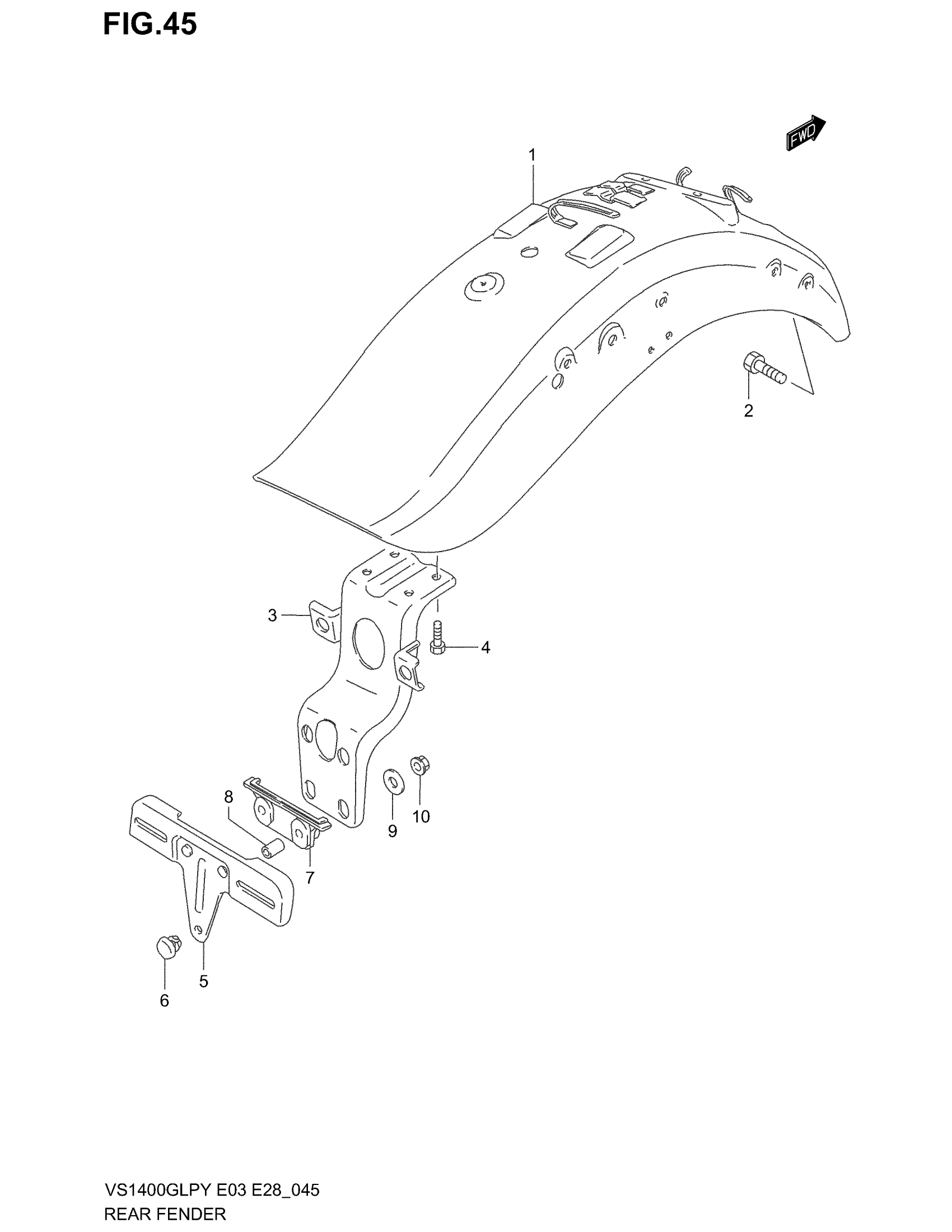

Suzuki VS1400GLP (2003) REAR FENDER (MODEL T) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 63110-38B00-33J.

63110-38B01-33J

Unavailable

1

FENDER,REAR This part replaces 63110-38B00-1ZV.

63110-38B01-1ZV

Unavailable

2

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

3

BRACKET, LAMP

63460-38B00

$104.18

4

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

5

PLATE, LICENSE This part replaces 63463-38B00.

63463-38B10

$45.38

6

CUSHION This part replaces 09321-08005.

09321-08025

$2.38

7

CUSHION, PLATE

63464-38B00

$17.23

8

SPACER This part replaces 09180-05028.

09180-05050

$4.68

9

WASHER

09160-05501

$1.84

10

NUT This part replaces 08316-20053.

08316-2005A

$2.19
