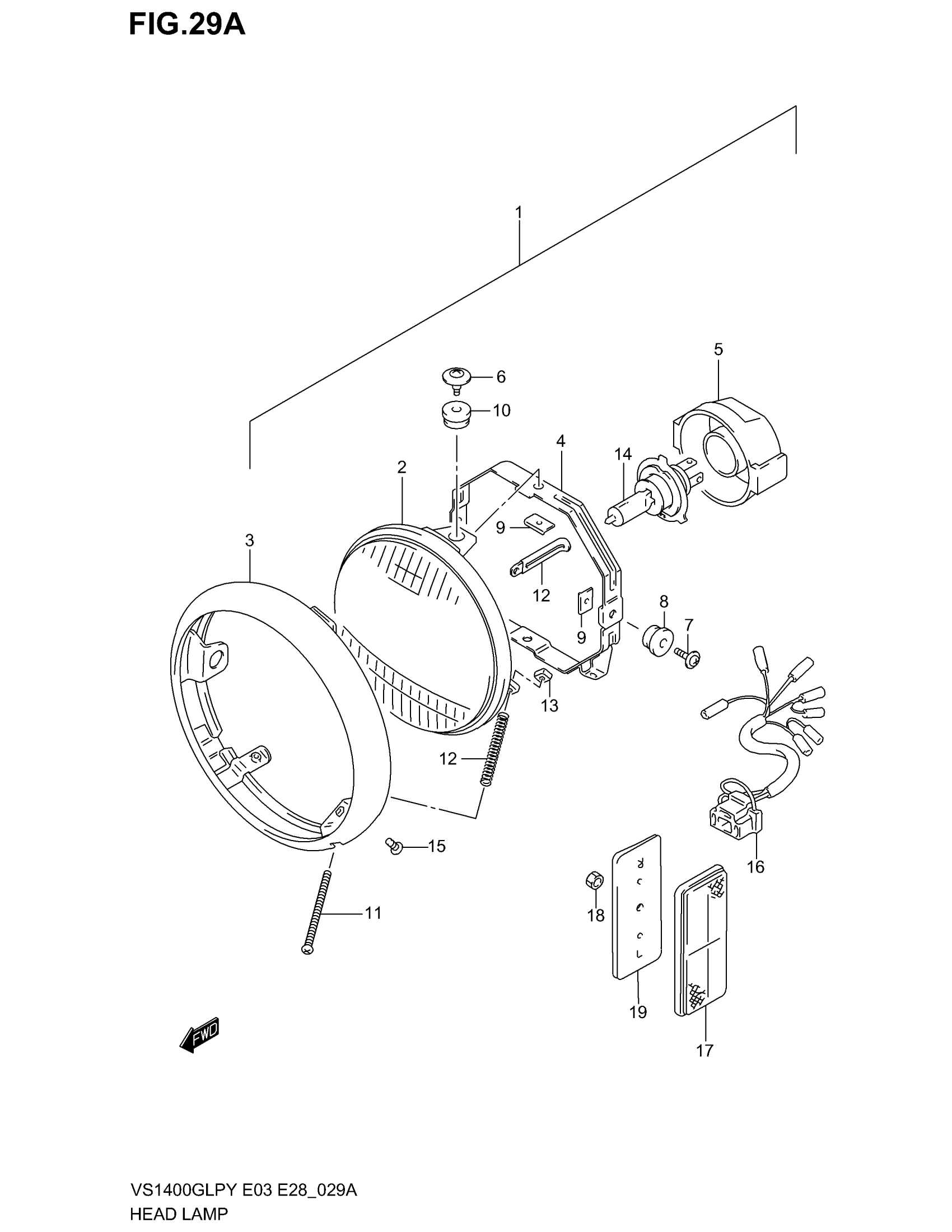

Suzuki VS1400GLP (2003) HEADLAMP (MODEL K1/K2/K3) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 13

35100-38B60-999

Unavailable

2

UNIT, LAMP

35121-38A60

$154.20

3

RIM

35111-38A60

$48.23

4

RING, MOUNTING

35130-38A00

$26.95

5

COVER, SOCKET

35173-13E10

$24.77

6

SCREW

35136-38A60

Unavailable

7

.SCREW MOUNTING

35136-38A00

$4.02

8

CUSHION

35139-45230

$1.98

9

NUT

35155-38A60

$4.17

10

CUSHION

35139-38A60

$4.10

11

SCREW, ADJUST

35151-38A00

$3.63

12

SPRING

35154-31300

$3.70

13

.NUT

35152-45600

$3.47

14

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

15

SCREW, HEADLAMP (5X12)

09126-05003

$2.06

16

WIRE, HEADLAMP LEAD

36853-38B10

$23.32

17

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

18

NUT This part replaces 08310-00053.

08310-0005A

$1.84

19

SPACER

35954-38B00

Unavailable
