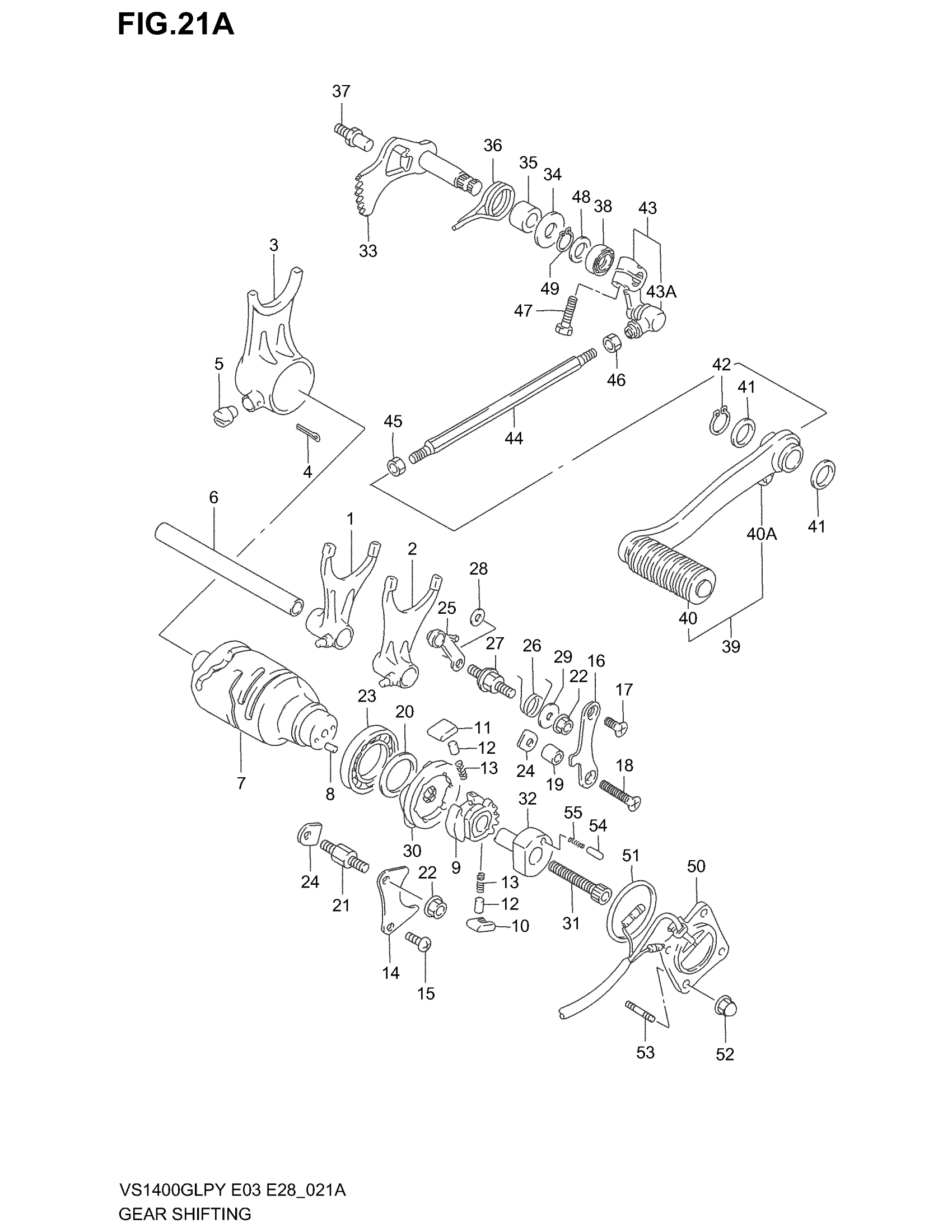

Suzuki VS1400GLP (2003) GEAR SHIFTING (MODEL V/W/X/Y/K1/K2/K3) Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1 | MODEL V This part replaces 25211-38B10.

25211-38B11

$83.08

1

FORK, GEAR SHIFTING NO.1 | MODEL W/X/Y/K1/K2/K3

25211-38B11

$83.08

2

FORK, GEAR SHIFTING NO.2

25221-38B10

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-38B10

Unavailable

4

PIN This part replaces 04111-25308.

04111-2530A

$1.49

5

PIN

09209-10002

Unavailable

6

SHAFT, GEAR SHIFTING FORK

25411-38B01

$28.93

7

CAM, GEAR SHIFTING | Includes Item(s) 8

25310-38B10

Unavailable

8

PIN (4X13.8)

04221-04089

$1.49

9

GEAR, GEAR SHIFT CAM DRIVEN | MODEL V This part replaces 25322-31302.

25322-31310

$26.93

9

GEAR, GEAR SHIFT CAM DRIVEN | MODEL W/X/Y/K1/K2/K3

25322-31310

$26.93

10

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

11

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

12

PIN

09261-05003

$1.54

13

SPRING

09440-04003

$1.54

14

LIFTER, PAWL

25331-38B00

Unavailable

15

SCREW | MODEL V/W/X This part replaces 02112-06123.

02112-0612A

$1.49

15

SCREW (6X12) | MODEL Y/K1/K2/K3

09125-06110

$2.12

16

GUIDE, CAM

25341-38B00

Unavailable

17

SCREW | MODEL V/W/X This part replaces 02122-06123.

02122-0612A

$1.49

17

SCREW (6X12) | MODEL Y/K1/K2/K3

09126-06011

$2.03

18

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

19

SPACER (6.5X10X14)

09180-06293

$2.58

20

WASHER (25X32X3)

09160-25059

$6.63

21

BOSS | MODEL V/W/Y/K1

25332-38A00

Unavailable

21

BOSS | MODEL K2/K3

25332-38A10

Unavailable

22

NUT This part replaces 08316-10063.

08316-1006B

$2.50

23

BEARING (25X47X8)

09262-25006

$25.54

24

RETAINER, BEARING

24741-21A00

$2.81

25

STOPPER, CAM

25350-38B00

Unavailable

26

SPRING

09448-17024

Unavailable

27

SUPPORT

25356-12C00

$17.37

28

WASHER

08211-06141

$1.59

29

WASHER (6.5X18X2) This part replaces 09160-06013.

09160-06121

$3.38

30

PLATE, STOPPER

25380-38B00

Unavailable

31

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

32

HOLDER, NEUTRAL SWITCH

25312-38B01

$27.28

33

SHAFT, GEAR SHIFTING

25510-38B00

Unavailable

34

WASHER (12.5X28X1.2) | MODEL V This part replaces 09160-12063.

09160-12091

Unavailable

34

WASHER (12.5X28X1.2) | MODEL W/X/Y/K1/K2/K3

09160-12091

Unavailable

35

SPACER (12X20X15.3)

09180-12068

$3.16

36

SPRING

09444-26021

$4.68

37

STOPPER, ARM

25671-38B00

$5.32

38

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

39

LEVER ASSY,GEAR | Includes Item(s) 40 - 40A This part replaces 25600-38B01.

25600-38B02

Unavailable

40

RUBBER

25652-38B00

$5.36

40A

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

41

WASHER (14.5X22X1) | MODEL T/V This part replaces 09160-14003.

09160-14054

$2.07

41

WASHER (14.5X22X1) | MODEL W/X/Y/K1/K2/K3

09160-14054

$2.07

42

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

43

ARM,GEAR SHIFT LINK | Includes Item(s) 43A This part replaces 25520-38B00.

25520-38B01

$43.85

43A

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

44

ROD

25525-38B00

$18.90

45

NUT

09140-06011

$1.49

46

.NUT

08310-00067

$2.13

47

BOLT

01500-06207

$2.28

48

WASHER (12X20X1.0)

09181-12167

$2.26

49

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

50

BODY, SWITCH

37720-38B00

$85.65

51

O RING (D:2.4,ID:35.5)

09280-35006

$3.04

52

NUT This part replaces 08313-20053.

08313-2005A

$2.42

53

STUD BOLT

09108-05010

$2.07

54

CONTACT, SWITCH

09209-04021

$10.60

55

SPRING

09440-02003

$1.92
