Partiron

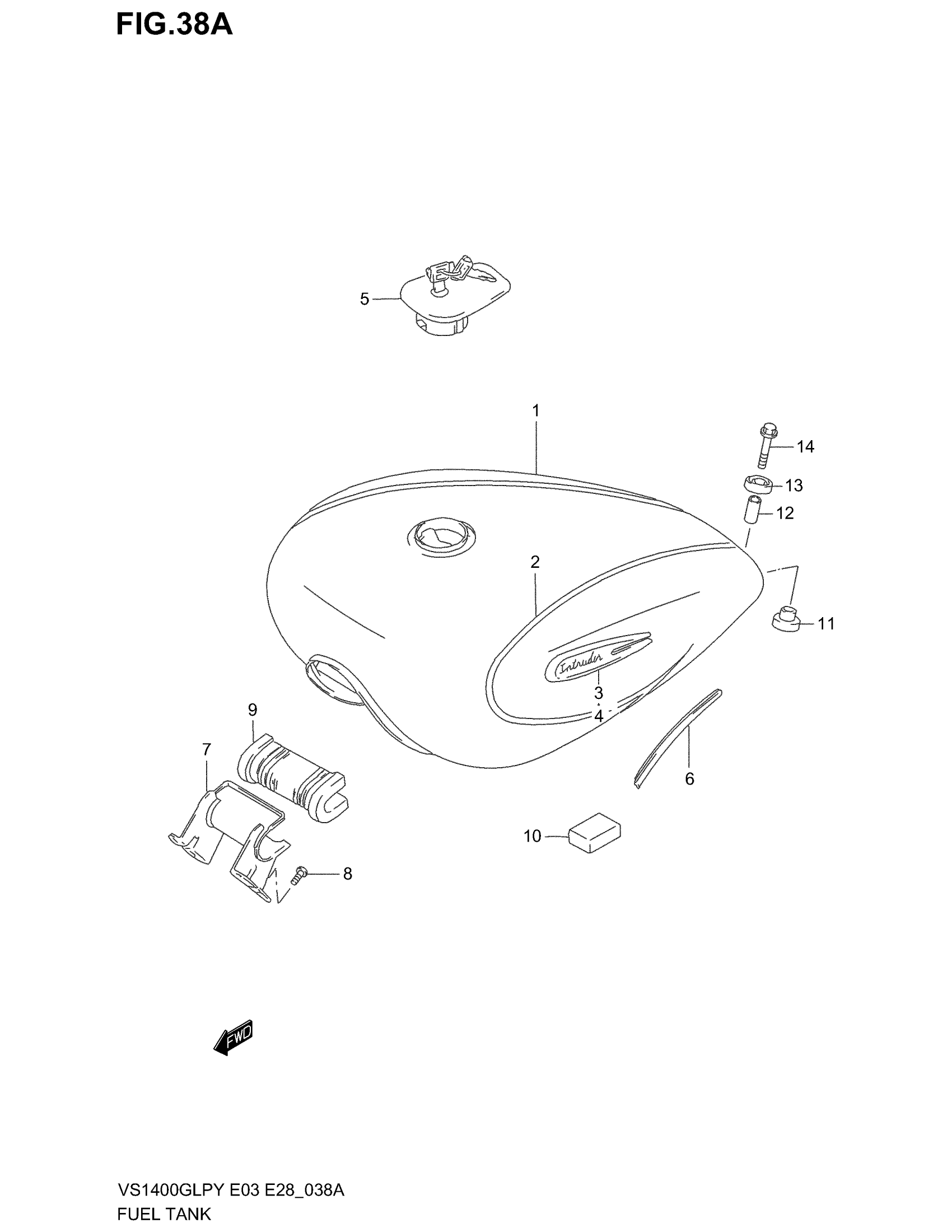

Suzuki VS1400GLP (2003) FUEL TANK (MODEL V/W) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 44100-38BP0-E6L.

44100-38BR0-E6L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 44100-38BP0-G2F.

44100-38BR0-G2F

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V E33 This part replaces 44100-38BS0-E6L.

44110-38B13-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V E33 This part replaces 44100-38BS0-G2F.

44100-38BS1-G2F

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL W This part replaces 44100-38BP0-G2E.

44100-38BR0-G2E

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL W This part replaces 44100-38BP0-G2P.

44100-38BR0-G2P

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL W E33 This part replaces 44100-38BS0-G2E.

44100-38BS1-G2E

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL W E33; Includes Item(s) 2 - 4 This part replaces 44100-38BS0-G2P.

44100-38BS1-G2P

Unavailable

2

TAPE SET, FUEL TANK | MODEL V FOR E6L

68110-38B51-G2V

Unavailable

2

TAPE SET, FUEL TANK | MODEL V FOR G2F

68110-38B51-G2F

Unavailable

2

TAPE SET, FUEL TANK | MODEL W FOR G2E

68110-38B51-G2W

Unavailable

2

TAPE SET, FUEL TANK | MODEL W FOR G2P

68110-38B51-J5S

Unavailable

3

EMBLEM, RH

68111-38B00

Unavailable

4

EMBLEM, LH

68121-38B00

Unavailable

5

CAP SET, FUEL TANK | E3,E28

44200-38820

$108.83

5

CAP SET, FUEL TANK | OPT E3,E28

44200-38860

Unavailable

5

CAP SET, FUEL TANK | OPT E3,E28

44200-38870

Unavailable

5

(CA)CAP,FUEL TA | E33 This part replaces 44200-24820.

44200-24821

$144.14

6

MOLDING, FUEL TANK

68241-04X50-00B

$27.30

7

BRACKET, FRONT (BLACK) This part replaces 44250-38B00-13Z.

44250-38B00-019

Unavailable

8

SCREW This part replaces 02112-76163.

02112-7616A

$2.12

9

CUSHION, FRONT

44511-38B01

$11.38

10

CUSHION, SIDE This part replaces 44512-38B00.

56314-48B10

$7.75

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

SPACER

09180-06274

$3.72

13

CUSHION, REAR UPPER

09320-14013

$2.11

14

BOLT This part replaces 01550-06353.

01550-0635A

$2.32
