Partiron

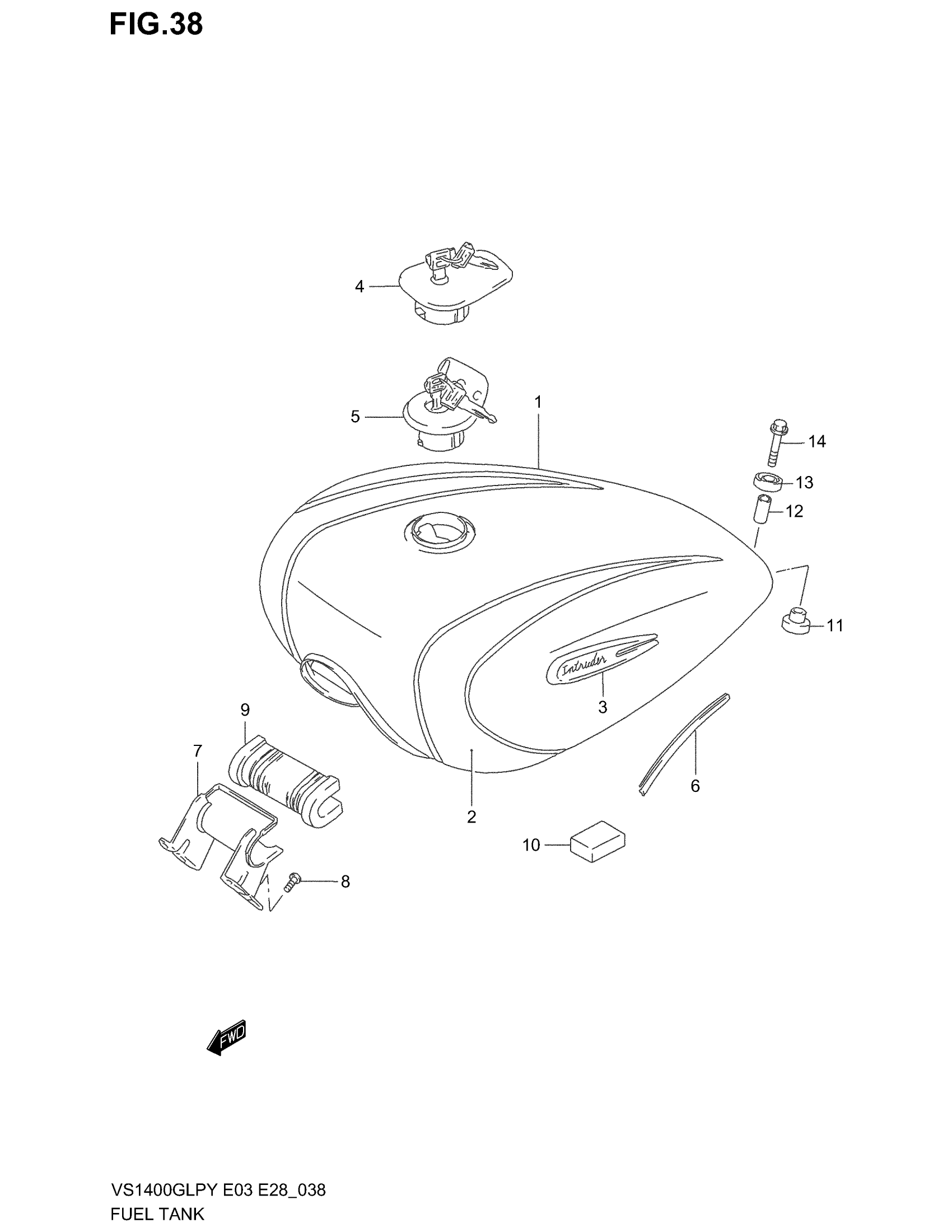

Suzuki VS1400GLP (2003) FUEL TANK (MODEL T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-38BL0-E6L.

44100-38BM0-E6L

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 44100-38BL0-E6N.

44100-38BM0-E6N

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 44100-38BN0-E6L.

44100-38BN1-E6L

Unavailable

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 3 This part replaces 44100-38BN0-E6N.

44100-38BN1-E6N

Unavailable

2

TAPE SET, FUEL TANK | FOR E6L

68110-38B40-E6U

Unavailable

2

TAPE SET, FUEL TANK | FOR E6N

68110-38B40-E6W

Unavailable

3

EMBLEM, RH

68111-38B00

Unavailable

3

EMBLEM, LH

68121-38B00

Unavailable

4

CAP SET, FUEL TANK | E3,E28

44200-38820

$108.83

4

CAP SET, FUEL TANK | OPT,E3,E28

44200-38860

Unavailable

4

CAP SET, FUEL TANK | OPT,E3,E28

44200-38870

Unavailable

5

(CA)CAP,FUEL TA | E33 This part replaces 44200-24820.

44200-24821

$144.14

6

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

7

BRACKET, FRONT (BLACK) This part replaces 44250-38B00-13Z.

44250-38B00-019

Unavailable

8

SCREW This part replaces 02112-76163.

02112-7616A

$2.12

9

CUSHION, FRONT

44511-38B01

$11.38

10

CUSHION, SIDE This part replaces 44512-38B00.

56314-48B10

$7.75

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

SPACER This part replaces 09180-06190.

09180-06274

$3.72

13

CUSHION, REAR UPPER

09320-14013

$2.11

14

BOLT This part replaces 01550-06353.

01550-0635A

$2.32
