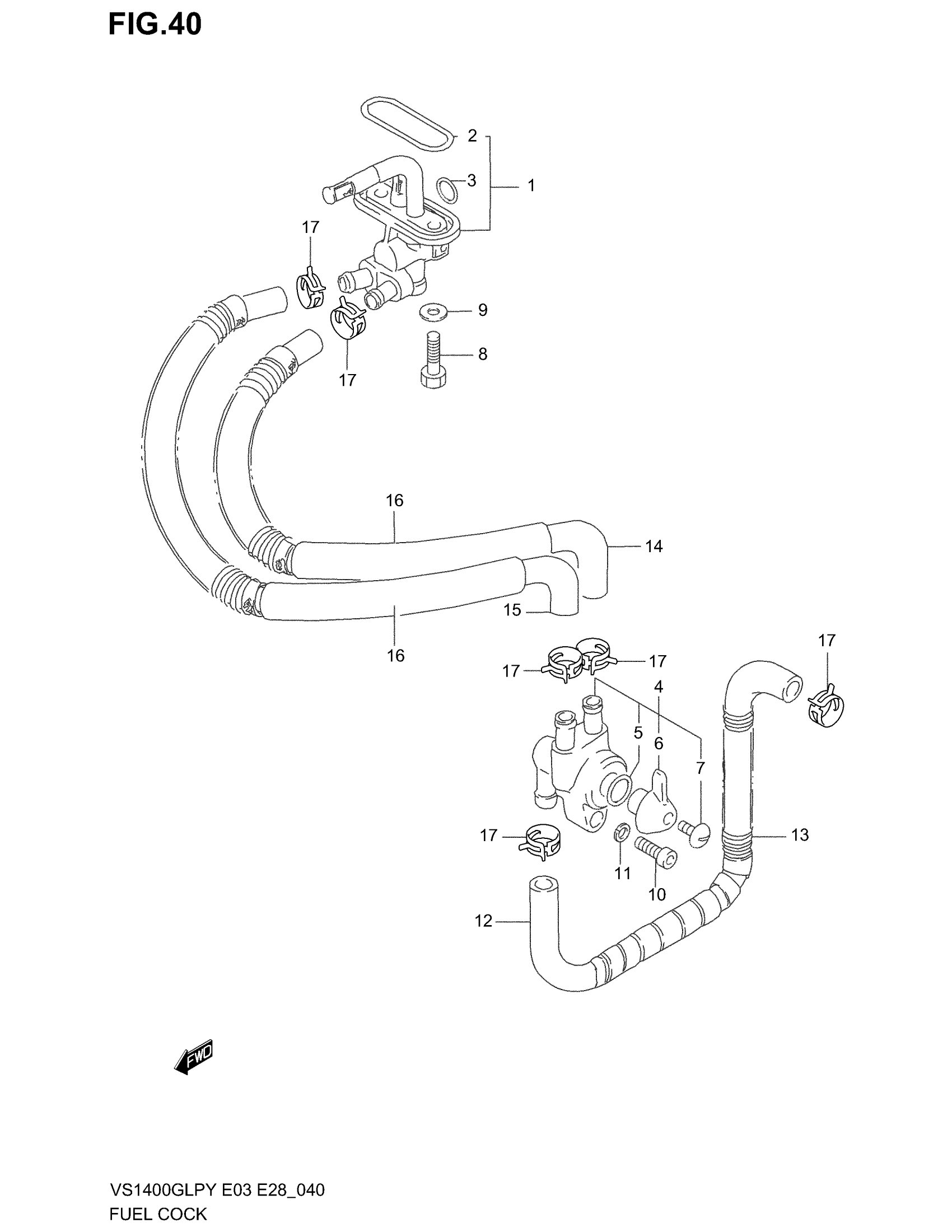

Suzuki VS1400GLP (2003) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | Includes Item(s) 2 - 3 This part replaces 44300-38B02.

44300-38B03

$117.40

2

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$5.05

3

O RING, LEVER

44353-12C01

$7.44

4

COCK ASSY, FUEL NO.2 | MODEL T This part replaces 44300-38B12.

44300-38B13

$172.11

4

COCK ASSY, FUEL NO.2 | MODEL V/W/X/Y/K1/K2/K3; Includes Item(s) 5 - 7

44300-38B13

$172.11

5

O RING, LEVER

44353-12C01

$7.44

6

LEVER

44306-38A00

$25.83

7

SCREW

44307-38A00

$19.45

8

BOLT This part replaces 09128-06006.

09128-06057

$1.65

9

GASKET

09168-06026

$3.10

10

BOLT This part replaces 07130-05123.

07130-0512B

$2.50

11

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.84

12

HOSE COMP,FUEL This part replaces 44420-38B01.

44420-38BR0

$42.23

13

SPRING

09440-14026

$10.81

14

HOSE,FUEL This part replaces 44430-38B03.

44430-38BR0

$20.88

15

HOSE, FUEL NO.2 This part replaces 44430-38B12.

44430-38BS0

$23.72

16

TUBE, FUEL HOSE | E28

44311-17E01

$17.72

16

TUBE, FUEL HOSE | MODEL T/V/W/X This part replaces 44423-38B00.

44423-44B00

$20.42

16

TUBE, FUEL HOSE | MODEL Y/K1/K2/K3

44423-44B00

$20.42

17

CLIP This part replaces 09401-11407.

09401-11415

$2.23
