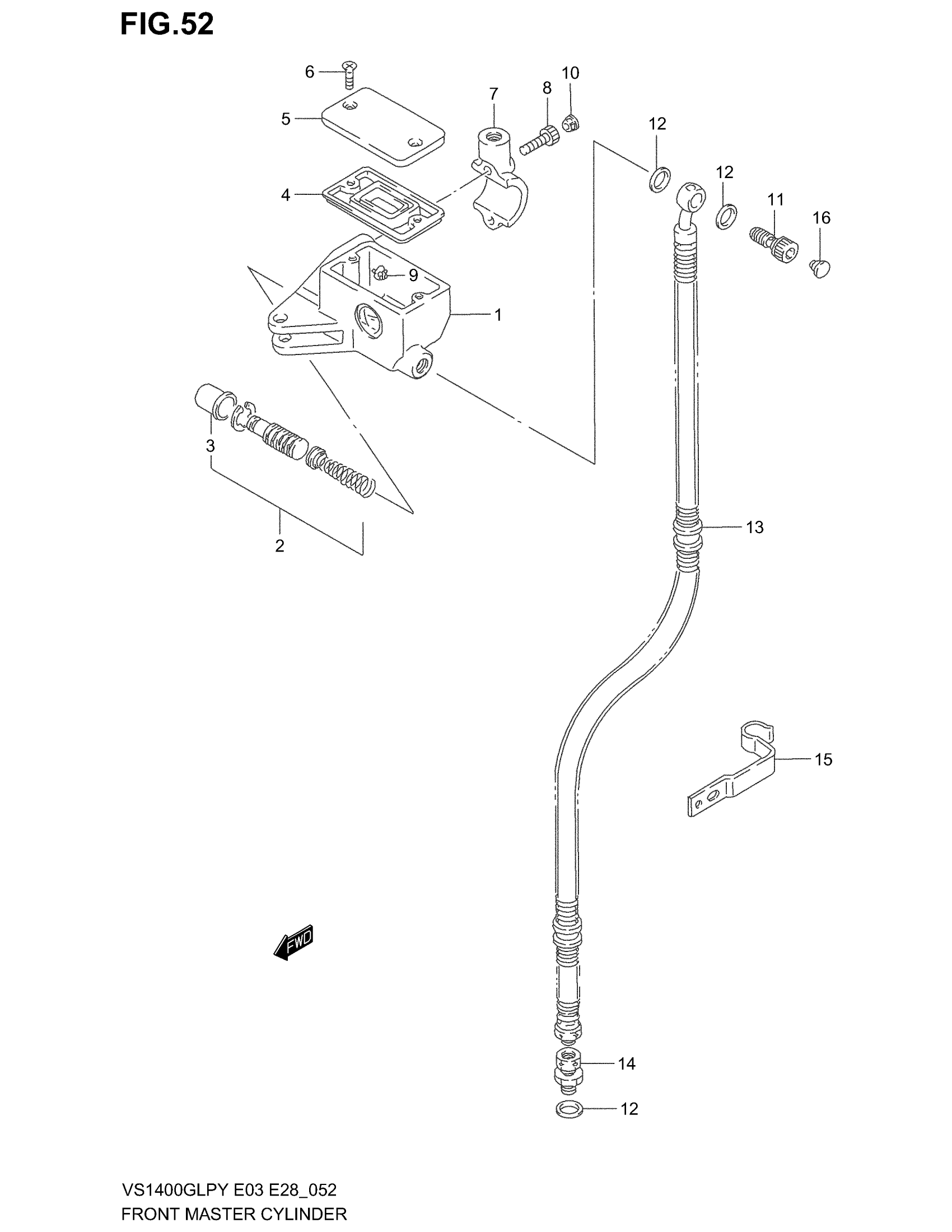

Suzuki VS1400GLP (2003) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER (PULL BACK TYPE) | Includes Item(s) 2 - 9

59600-38B30

Unavailable

2

PISTON & CUP SET

59600-04810

$45.20

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-49460

$9.78

5

CAP

59669-38B10

Unavailable

6

SCREW

02122-04127

$1.97

7

HOLDER

59671-38A00

$37.11

8

BOLT

07130-06207

$3.04

9

PROTECTOR

59664-48B00

$11.02

10

CAP

09250-05008

$3.76

11

BOLT (10X1.00X24)

09360-10027

$9.10

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE, FRONT BRAKE (PULL BACK TYPE)

59480-38B30

Unavailable

14

ADAPTER, BRAKE HOSE

59290-43500

$36.17

15

GUIDE, BRAKE HOSE NO.2

59268-38B01

$9.17

16

CAP

09250-08014

$2.85
