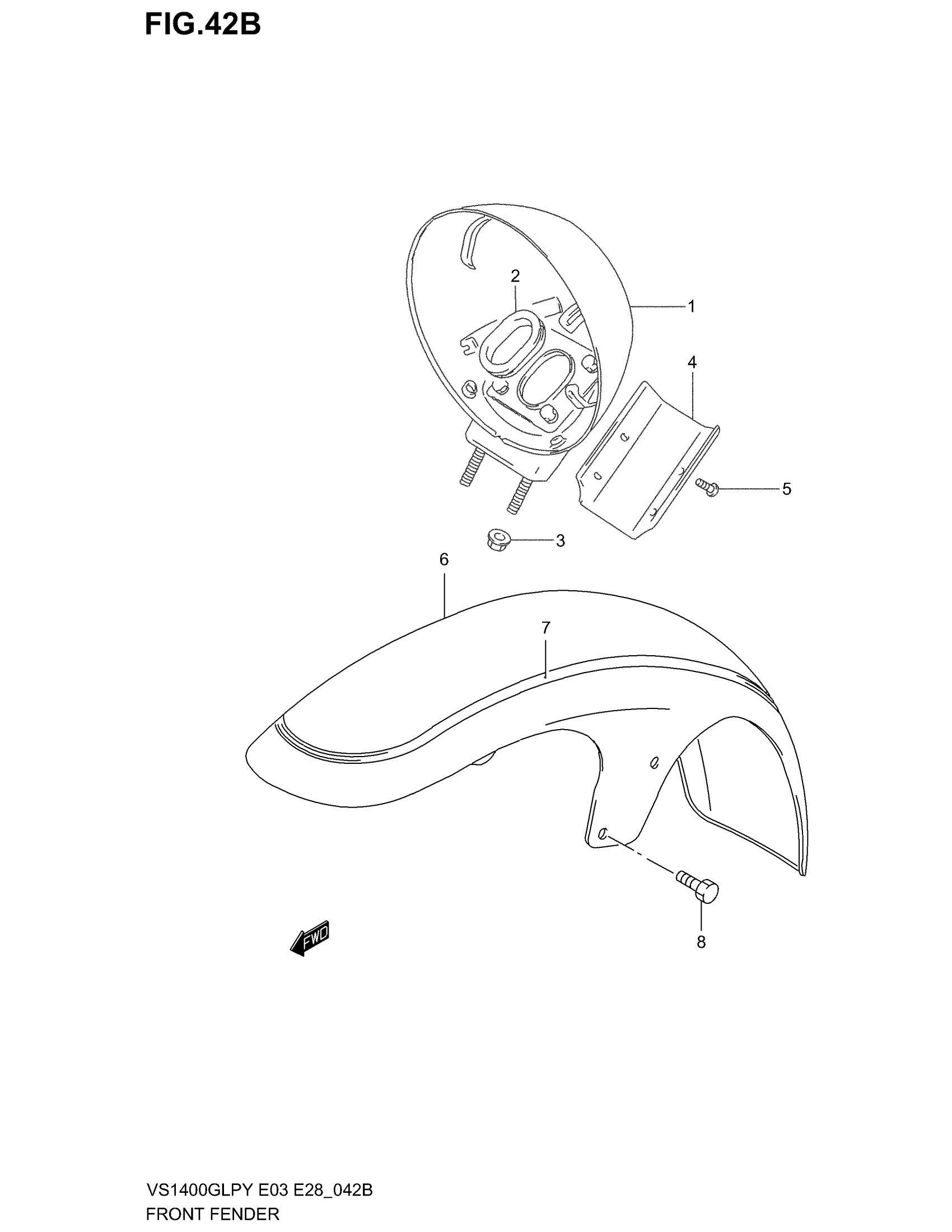

Suzuki VS1400GLP (2003) FRONT FENDER (MODEL Y/K1/K2/K3) Diagram

#

Description
Price

1

HOUSING, HEADLAMP | Includes Item(s) 2

51810-38B00

$215.83

2

GROMMET

51819-38B00

Unavailable

3

NUT This part replaces 08319-31063.

08319-3106A

$2.03

4

COVER, HEADLAMP HOUSING

51815-38B00

$13.30

5

SCREW

02142-04107

$1.49

6

FENDER, FRONT | MODEL Y

53100-38B40-N3V

Unavailable

6

FENDER, FRONT | MODEL Y

53100-38B40-N3W

Unavailable

6

FENDER, FRONT | MODEL K1

53100-38B40-EJ1

Unavailable

6

FENDER, FRONT | MODEL K1

53100-38B40-ER5

Unavailable

6

FENDER, FRONT | MODEL K2

53100-38B40-FH5

Unavailable

6

FENDER, FRONT | MODEL K2

53100-38B40-HE5

Unavailable

6

FENDER, FRONT | MODEL K3

53100-38B40-KT7

Unavailable

6

FENDER, FRONT | MODEL K3; Includes Item(s) 7 - 7

53100-38B40-KT8

Unavailable

7

TAPE SET | MODEL Y FOR N3V

68155-38B00-N4W

Unavailable

7

TAPE SET | MODEL Y FOR N3W

68155-38B00-N4Y

Unavailable

7

TAPE SET | MODEL K1 FOR EJ1

68155-38B00-ET7

Unavailable

7

TAPE SET | MODEL K1 FOR ER5

68155-38B00-ET8

Unavailable

7

TAPE SET | MODEL K2 FOR FH5

68155-38B00-HF6

Unavailable

7

TAPE SET | MODEL K2 FOR HE5

68155-38B00-HF5

Unavailable

7

TAPE SET | MODEL K3 FOR KT7

68155-38B00-LJ9

Unavailable

7

TAPE SET | MODEL K3 FOR KT8

68155-38B00-LK1

Unavailable

8

BOLT This part replaces 01570-06163.

01570-0616A

$2.23
