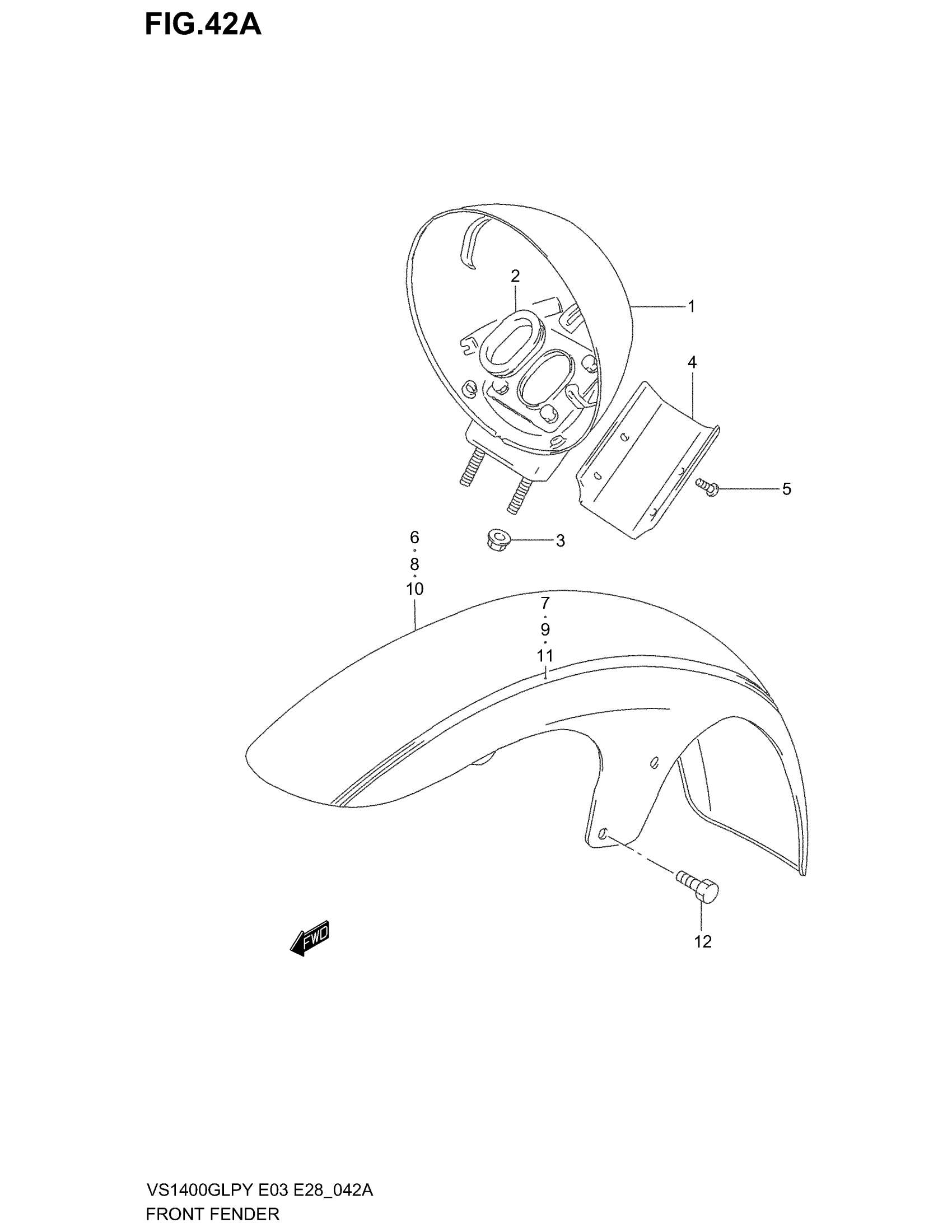

Suzuki VS1400GLP (2003) FRONT FENDER (MODEL V/W/X) Diagram

#

Description
Price

1

HOUSING, HEADLAMP | Includes Item(s) 2

51810-38B00

$215.83

2

GROMMET

51819-38B00

Unavailable

3

NUT This part replaces 08319-31063.

08319-3106A

$2.03

4

COVER, HEADLAMP HOUSING

51815-38B00

$13.30

5

SCREW

02142-04107

$1.49

6

FENDER, FRONT | MODEL V

53100-38B00-E6L

Unavailable

6

FENDER, FRONT | MODEL V

53100-38B00-G2F

Unavailable

6

FENDER, FRONT | MODEL W; Includes Item(s) 7 - 7

53100-38B00-G2P

Unavailable

7

TAPE SET | MODEL V FOR E6L

68150-38B01-G2V

Unavailable

7

TAPE SET | MODEL V FOR G2F

68150-38B01-G2F

Unavailable

7

TAPE SET | MODEL W FOR G2P

68150-38B01-J5S

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL W; Includes Item(s) 9 This part replaces 53100-38B10-G2E.

53100-38820-G2E

Unavailable

9

TAPE SET | MODEL W FOR G2E

68150-38B11-G2W

Unavailable

10

FENDER, FRONT | MODEL X

53100-38B00-E88

Unavailable

10

FENDER, FRONT | MODEL X; Includes Item(s) 11 - 11

53100-38B00-G2P

Unavailable

11

TAPE SET | MODEL X FOR E88

68150-38B01-L3U

Unavailable

11

TAPE SET | MODEL X FOR G2P

68150-38B01-J5S

Unavailable

12

BOLT This part replaces 01570-06163.

01570-0616A

$2.23
