Description

Price

CALIPER ASSY, FRONT RH | Includes Item(s) 1 - 13 This part replaces 59100-38B11.

59100-38B11-999

$392.92

1

PISTON SET

59100-38811

$100.27

2

SEAL SET, PISTON

59100-38840

$31.83

3

PAD SET

59100-38820

$48.07

4

SHIM

59371-33410

$12.57

5

BOLT

59145-16700

$8.83

6

SPRING

59143-16700

$5.80

7

PIN

69141-45000

$5.17

8

.CLIP, PAD PIN

69142-45000

$4.34

9

COVER

59151-38B01

Unavailable

10

CAP, CALIPER

59152-24A00

Unavailable

11

BLEEDER

59121-18410

$8.73

12

CAP

55156-66310

$5.17

13

SCREW (4X6)

59153-38B10

$7.80

14

BOLT (10X33)

09106-10038

$3.55

15

CAP

09250-08014

$2.85

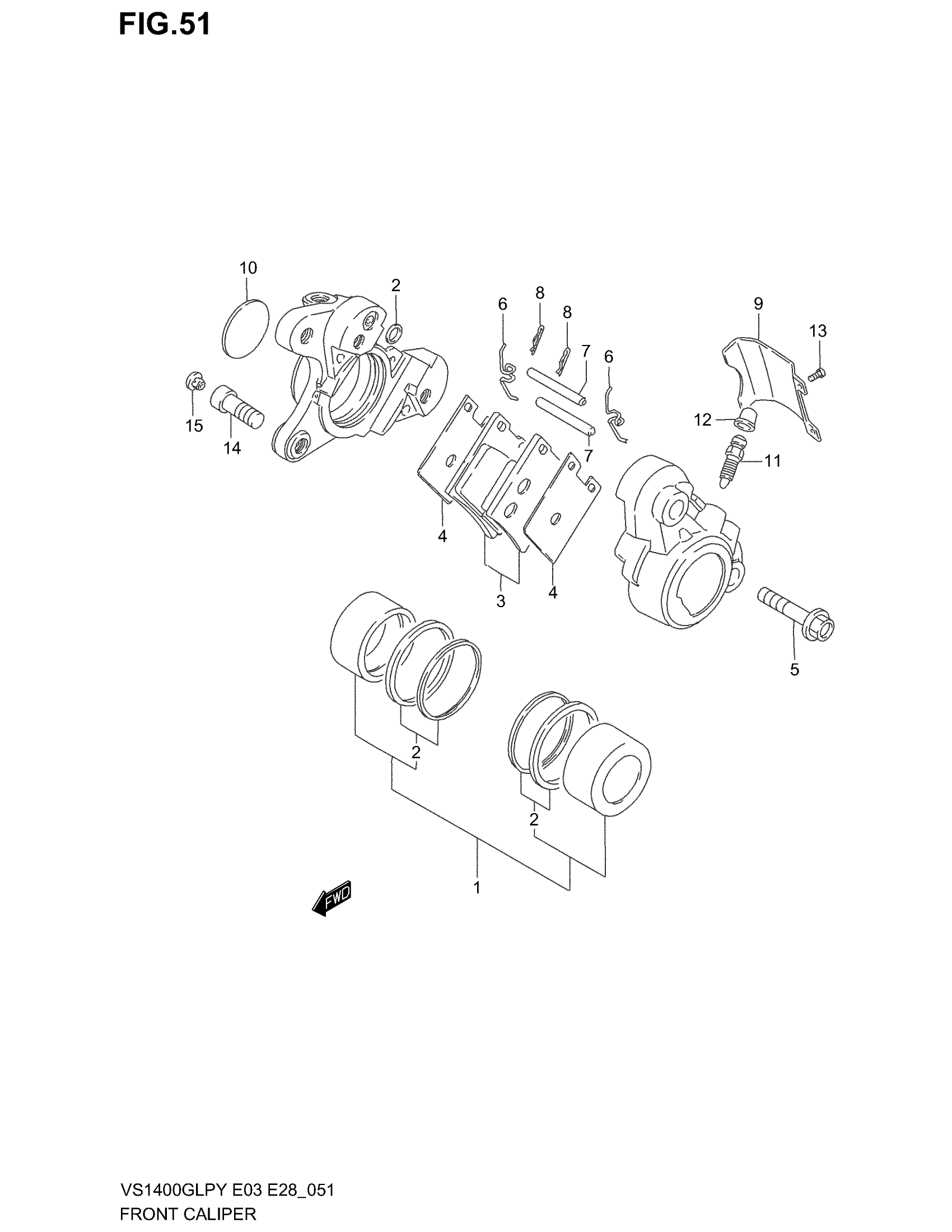

Suzuki VS1400GLP (2003) FRONT CALIPER Diagram
