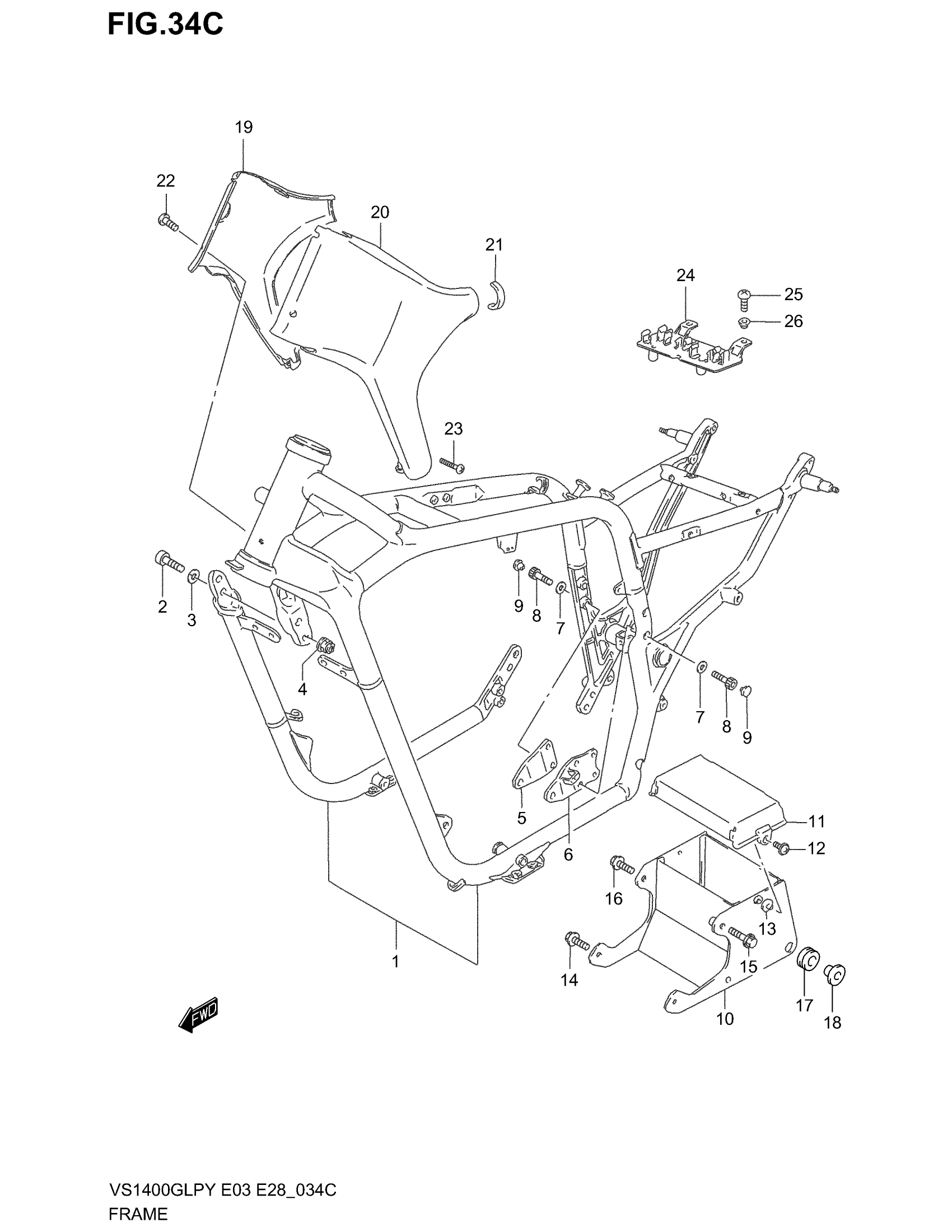

Find the part on the Frame diagram for your 2003 Suzuki VS1400GLP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki VS1400GLP Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SET (BLACK) | FOR N3V,EJ1

41101-38822-33J

1
Out of stock

1

FRAME SET (GREEN) | FOR N3W

41101-38822-Y7G

1
Out of stock

1

FRAME SET (BLUE) | FOR ER5; Includes Item(s) 2 - 4

41101-38822-Y7H

1
Out of stock

2

BOLT

09106-10019

4
Out of stock

3

WASHER

09164-10010

4
Out of stock

4

NUT This part replaces 08319-31103.

08319-3110A

4
Out of stock

5

PLATE, NO.4,RH (BLACK) | FOR N3V,EJ1

41951-38B00-33J

1
Out of stock

5

PLATE, NO.4,RH (GREEN) | FOR N3W

41951-38B00-Y7G

1
Out of stock

5

PLATE, NO.4,RH (BLUE) | FOR ER5

41951-38B00-Y7H

1
Out of stock

6

PLATE, NO.4,LH (BLACK) | FOR N3V,EJ1

41960-38B00-33J

1
Out of stock

6

PLATE, NO.4,LH (GREEN) | FOR N3W

41960-38B00-Y7G

1
Out of stock

6

PLATE, NO.4,LH (BLUE) | FOR ER5

41960-38B00-Y7H

1
Out of stock

7

WASHER

09164-08015

4
Out of stock

8

BOLT

09106-08072

4
Out of stock

9

CAP

09250-06004

4

$1.55

In stock

10

HOLDER, BATTERY This part replaces 41540-38B01.

41540-38B02

1
Out of stock

11

COVER, BATTERY

33658-38B00

1
Out of stock

12

SCREW

09138-05012

2
Out of stock

13

WASHER

09169-05014

2
Out of stock

14

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

15

BOLT This part replaces 01550-08203.

01550-0820A

3
Out of stock

16

BOLT, CENTER LH

09103-08222

1
Out of stock

17

CUSHION

09320-12042

2
Out of stock

18

SPACER

09301-08009

2
Out of stock

19

COVER, FRAME HEAD RH (BLACK) | FOR N3V,EJ1

47350-38B01-33J

1
Out of stock

19

COVER, FRAME HEAD RH (GREEN) | FOR N3W

47350-38B01-Y7G

1
Out of stock

19

COVER, FRAME HEAD RH (BLUE) | FOR ER5

47350-38B01-Y7H

1
Out of stock

20

COVER, FRAME HEAD LH (BLACK) | FOR N3V This part replaces 47360-38B11-33J.

47360-38B11-YAY

1
Out of stock

20

COVER, FRAME HEAD LH (GREEN) | FOR N3W

47360-38B11-Y7G

1
Out of stock

20

COVER, FRAME HEAD LH (BLUE) | FOR ER5

47360-38B11-Y7H

1
Out of stock

21

PROTECTOR

47359-38B00

4
Out of stock

22

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

3
Out of stock

23

SCREW This part replaces 02112-04253.

02112-0425B

2
Out of stock

24

HOLDER, COUPLER

47411-38B02

1
Out of stock

25

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

26

WASHER

09169-06010

2
Out of stock
