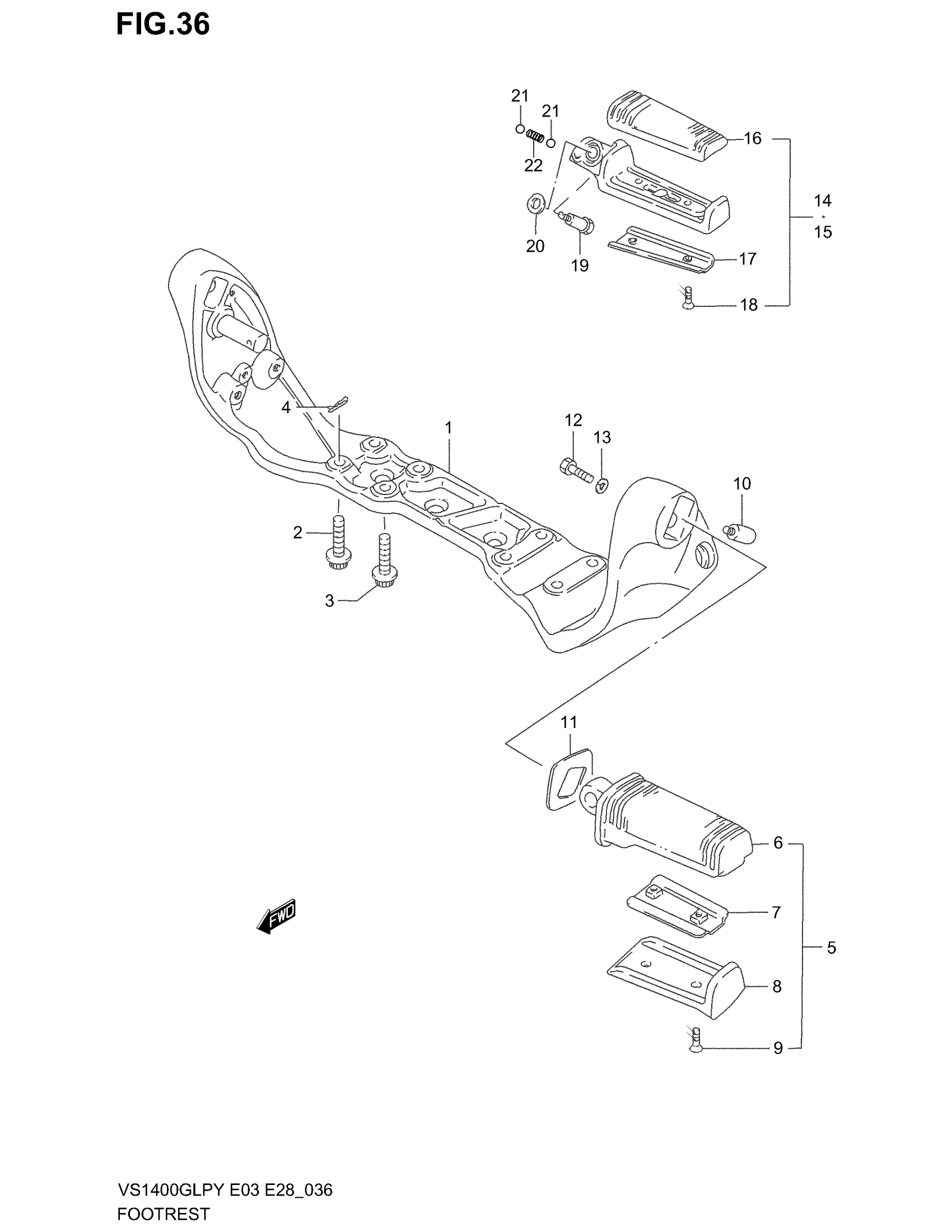

Suzuki VS1400GLP (2003) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST | MODEL T This part replaces 43510-39B00.

43510-39B20

Unavailable

1

BRACKET, FRONT FOOTREST | MODEL V/W/X/Y/K1 This part replaces 43510-39B10.

43510-39B20

Unavailable

1

BRACKET, FRONT FOOTREST | MODEL K2/K3

43510-39B20

Unavailable

2

BOLT, OUTER

09106-08064

$3.00

3

BOLT This part replaces 07120-08203.

07120-0820A

$2.88

4

PIN

09385-08005

$2.01

5

FOOTREST ASSY, FRONT RH

43501-38B11

$169.60

5

FOOTREST ASSY, FRONT LH | Includes Item(s) 6 - 9

43502-38B11

$141.20

6

RUBBER,FR FOOTR This part replaces 43551-38B00.

43551-38B01

$14.85

7

PLATE, RUBBER

43580-38B10

$14.18

8

COVER, FRONT FOOTREST

43585-38B11

Unavailable

9

SCREW

09127-05018

Unavailable

10

BOLT | MODEL T/V/W/X/Y/K1 This part replaces 43641-38B00.

09106-06101

$3.10

10

BOLT, RUBBER | MODEL K2/K3

09106-06101

$3.10

11

WASHER, FRONT FOOTREST

43546-38B01

$7.07

12

BOLT | MODEL T/V This part replaces 07130-05123.

07130-0512B

$2.53

12

SCREW | MODEL W/X/Y/K1/K2/K3 This part replaces 02112-35123.

02112-3512A

$2.43

13

LOCK WASHER | MODEL T/V This part replaces 08321-01053.

08321-0105A

$1.83

14

FOOTREST ASSY, PILLION RH | MODEL T/V/W/X

43600-38A01

Unavailable

14

FOOTREST ASSY,P | MODEL Y/K1/K2/K3 This part replaces 43600-38E00.

43600-38E01

$84.85

15

FOOTREST ASSY,P | MODEL T/V/W/X This part replaces 43700-38A01.

43700-38A02

Unavailable

15

FOOTREST ASSY,P | MODEL Y/K1/K2/K3; Includes Item(s) 16 - 18 This part replaces 43700-38E00.

43700-38E01

$73.83

16

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$9.67

17

PLATE, RUBBER STOPPER

43632-38A00

$8.32

18

SCREW

09127-05017

$3.00

19

BOLT

09111-06050

$5.00

20

SHIM

08221-08164

$2.35

21

BALL

06111-07004

$1.22

22

SPRING | MODEL T/V/W/X

09440-05031

$1.45

22

SPRING | MODEL Y/K1/K2/K3

09440-05005

$1.45
