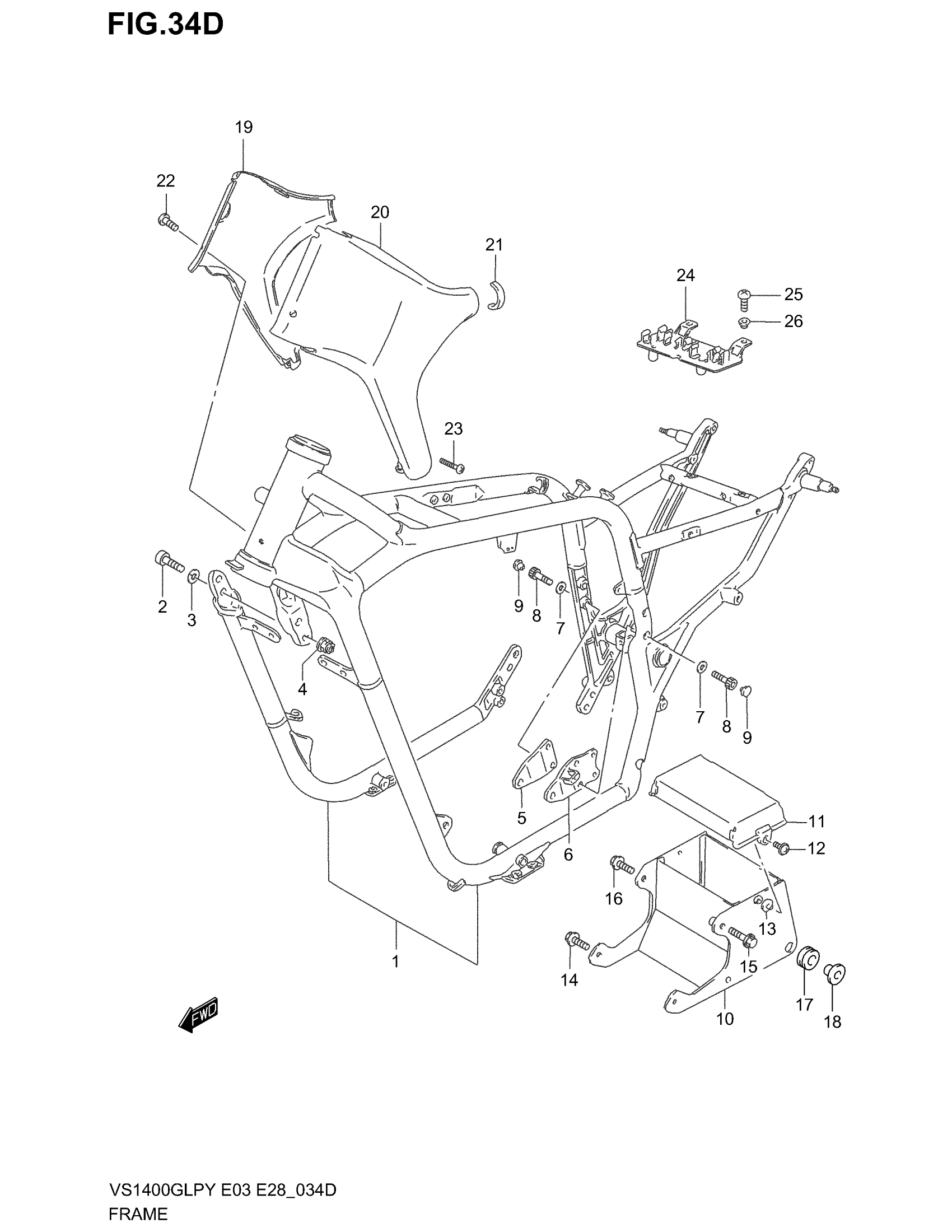

Suzuki VS1400GLP (2003) FRAME (MODEL K2/K3) Diagram

#

Description
Price

1

FRAME SET (BLACK)

41101-38822-33J

Unavailable

1

FRAME SET (SILVER) | MODEL K3; Includes Item(s) 2 - 4

41101-38822-YD8

Unavailable

2

BOLT

09106-10019

$3.50

3

WASHER

09164-10010

$4.83

4

NUT This part replaces 08319-31103.

08319-3110A

$2.73

5

PLATE, NO.4,RH (BLACK)

41951-38B00-33J

Unavailable

5

PLATE, NO.4,RH (SILVER) | MODEL K3

41951-38B00-YD8

Unavailable

6

PLATE, NO.4,LH (BLACK)

41960-38B00-33J

Unavailable

6

PLATE, NO.4 LH (SILVER) | MODEL K3

41960-38B00-YD8

Unavailable

7

WASHER

09164-08015

$3.21

8

BOLT

09106-08072

$4.52

9

CAP

09250-06004

$1.49

10

HOLDER, BATTERY This part replaces 41540-38B01.

41540-38B02

$111.78

11

COVER, BATTERY

33658-38B00

$14.20

12

SCREW

09138-05012

$2.07

13

WASHER

09169-05014

$3.32

14

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

15

BOLT This part replaces 01551-08203.

01551-0820A

$2.90

16

BOLT, CENTER LH

09103-08222

$2.85

17

CUSHION

09320-12042

$3.40

18

SPACER

09301-08009

$5.08

19

COVER, FRAME HEAD RH (BLACK)

47350-38B01-33J

Unavailable

19

COVER, FRAME HEAD RH (SILVER) | MODEL K3

47350-38B01-YD8

Unavailable

20

COVER, FRAME HEAD LH (BLACK) This part replaces 47360-38B11-33J.

47360-38B11-YAY

Unavailable

20

COVER, FRAME HEAD RH (SILVER) | MODEL K3

47360-38B11-YD8

Unavailable

21

PROTECTOR

47359-38B00

$2.38

22

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

23

SCREW This part replaces 02112-04253.

02112-0425B

$2.34

24

HOLDER, COUPLER

47411-38B02

$19.15

25

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

26

WASHER

09169-06010

$2.60
