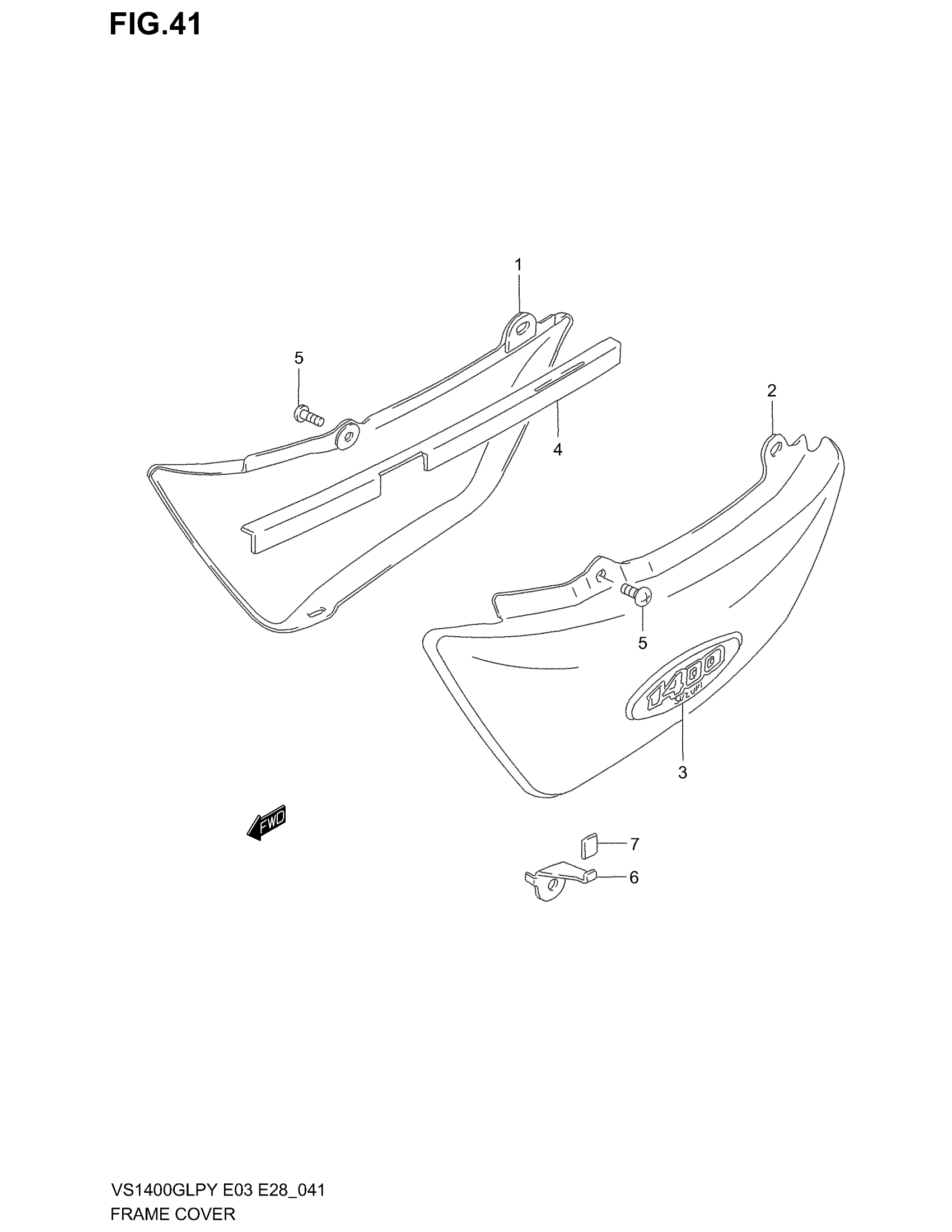

Suzuki VS1400GLP (2003) FRAME COVER (MODEL T/V) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | MODEL T FOR E6L

47110-38B00-33J

Unavailable

1

COVER, FRAME RH (GREEN) | MODEL T FOR E6N

47110-38B00-1ZV

Unavailable

1

COVER, FRAME RH (MAROON) | MODEL V FOR E6L

47110-38B00-20F

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL V FOR G2F

47110-38B00-Y0N

Unavailable

2

COVER, FRAME LH (BLACK) | MODEL T FOR E6L This part replaces 47210-38B00-33J.

47210-38B00-YAY

Unavailable

2

COVER, FRAME LH (GREEN) | MODEL T FOR E6N

47210-38B00-1ZV

Unavailable

2

COVER, FRAME LH (MAROON) | MODEL V FOR E6L

47210-38B00-20F

Unavailable

2

COVER, FRAME LH (BLUE) | MODEL V FOR G2F

47210-38B00-Y0N

Unavailable

3

EMBLEM, FRAME COVER (GOLD) | MODEL T This part replaces 68131-38B30.

68131-38B30-Y2B

Unavailable

3

EMBLEM, FRAME COVER | MODEL V FOR E6L

68131-38B30-Y2B

Unavailable

3

EMBLEM, FRAME COVER | MODEL V FOR G2F

68131-38B30-Y2C

Unavailable

4

PROTECTOR,FRAME This part replaces 47165-38B00.

47165-38B01

$12.73

5

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

6

HOOK, FRAME COVER LH

47171-38B00

$5.98

7

CUSHION, HOOK

47175-38B00

$3.37
