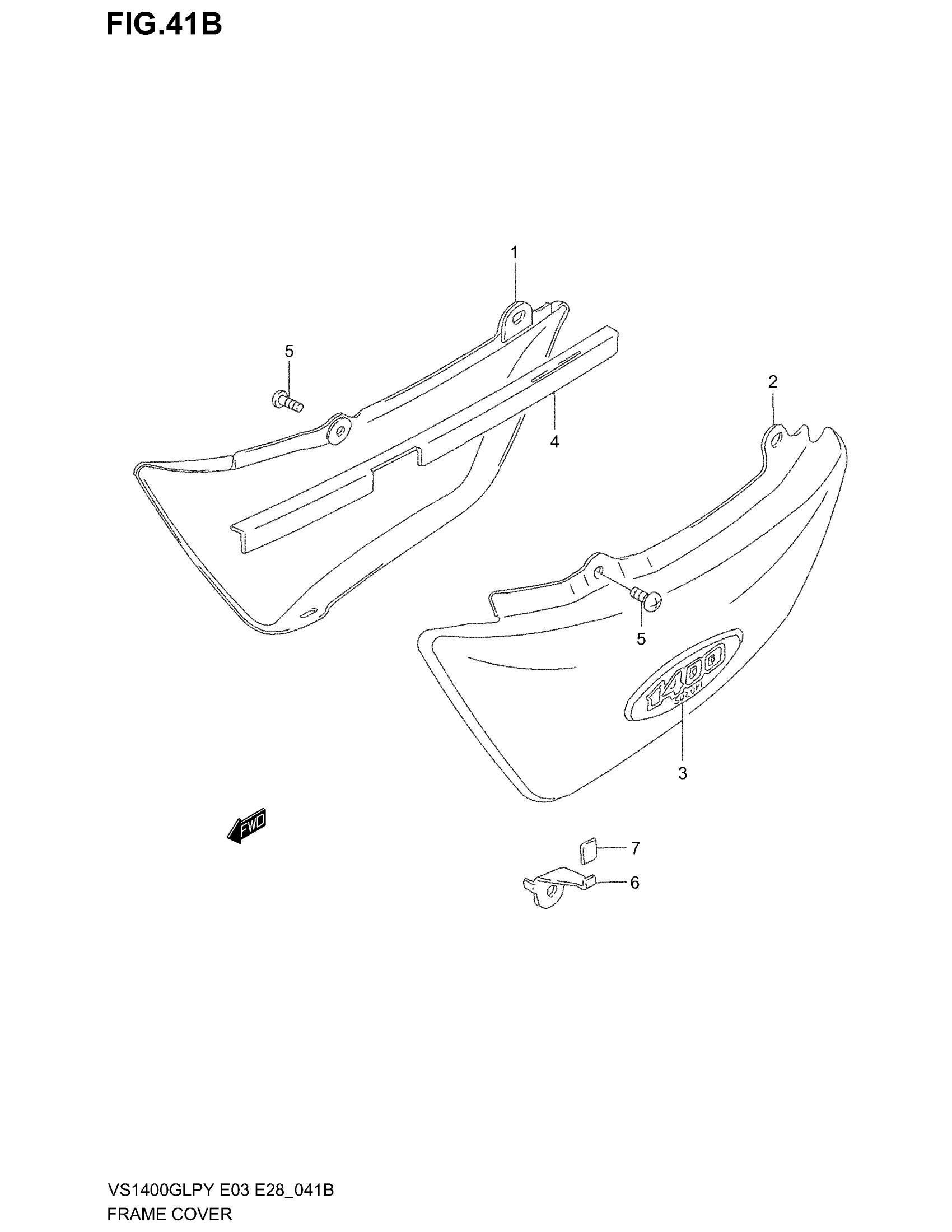

Suzuki VS1400GLP (2003) FRAME COVER (MODEL K2/K3) Diagram

#

Description

Price

1

COVER, FRAME RH (BLACK)

47110-38B00-33J

Unavailable

1

COVER, FRAME RH (SILVER) | MODEL K3

47110-38B00-YD8

Unavailable

2

COVER, FRAME LH (BLACK) This part replaces 47210-38B00-33J.

47210-38B00-YAY

Unavailable

2

COVER, FRAME LH (SILVER) | MODEL K3

47210-38B00-YD8

Unavailable

3

EMBLEM, FRAME COVER | MODEL K2 FOR FH5

68131-38B30-HF8

Unavailable

3

EMBLEM, FRAME COVER | MODEL K2 FOR HE5

68131-38B30-HF7

Unavailable

3

EMBLEM, FRAME COVER | MODEL K3 FOR KT7

68131-38B30-LD7

Unavailable

3

EMBLEM, FRAME COVER | MODEL K3 FOR KT8

68131-38B30-LD6

Unavailable

4

PROTECTOR,FRAME This part replaces 47165-38B00.

47165-38B01

$12.73

5

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

6

HOOK, FRAME COVER LH

47171-38B00

$5.98

7

CUSHION, HOOK

47175-38B00

$3.37
