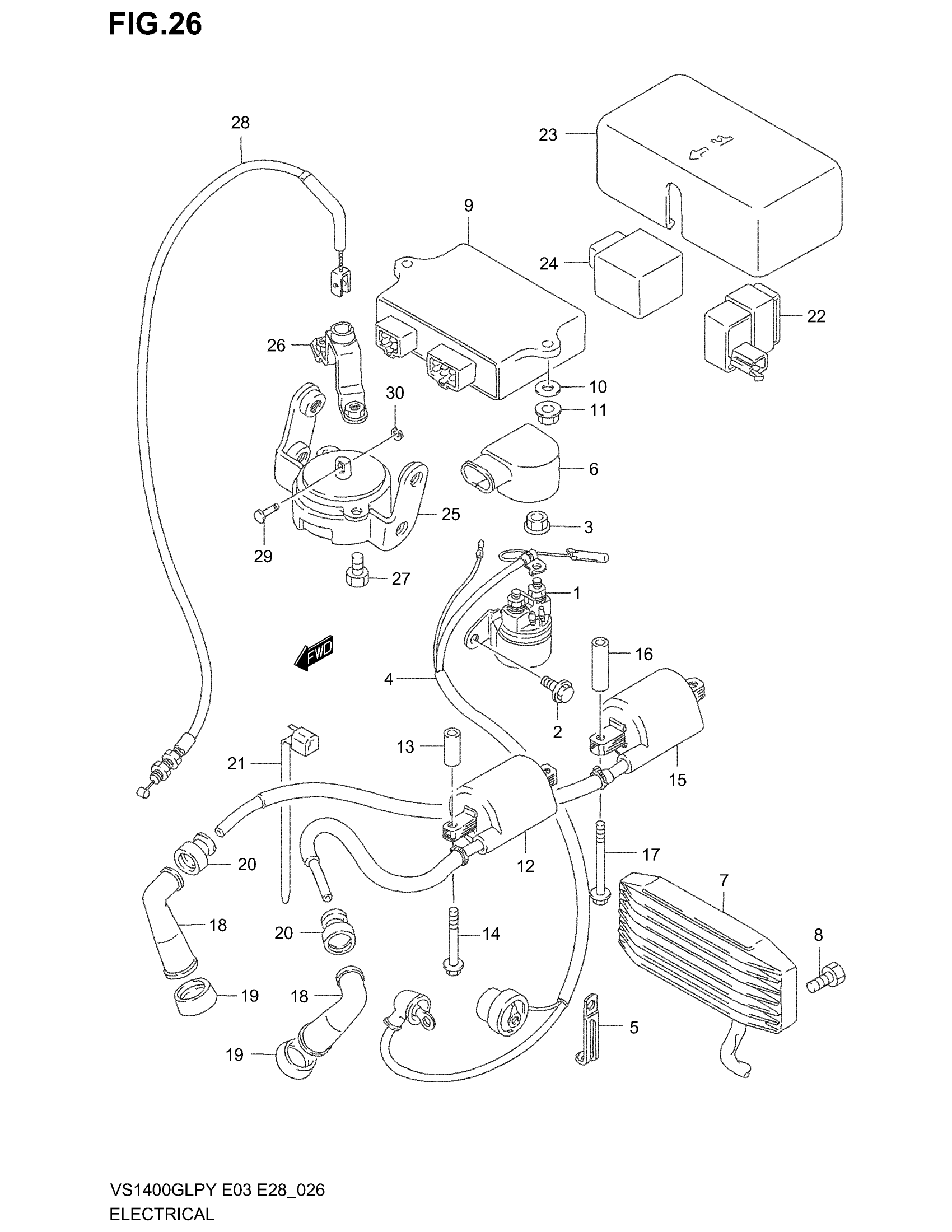

Suzuki VS1400GLP (2003) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$97.31

2

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

3

NUT This part replaces 08361-35068.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR

33850-38B00

Unavailable

5

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

6

CAP, STARTER RELAY | MODEL T/V This part replaces 33624-49420.

33624-49401

$7.20

6

CAP, TERMINAL | MODEL W/X/Y/K1/K2/K3

33624-49401

$7.20

7

RECTIFIER, REGULATOR

32800-12E01

$320.45

8

BOLT This part replaces 01500-06103.

01500-0610B

$1.81

9

IGNITER UNIT

32900-38B50

$1,617.10

10

WASHER (6.5X14X2.3) | MODEL T This part replaces 09160-06017.

09160-06127

$2.30

10

WASHER | MODEL V This part replaces 09160-06115.

09160-06131

$2.50

10

WASHER (6.5X16X4) | MODEL W/X/Y/K1/K2/K3

09160-06131

$2.50

11

NUT This part replaces 08316-10063.

08316-1006B

$2.50

12

COIL ASSY,IGNIT This part replaces 33410-38B00.

33410-38B01

$126.62

13

SPACER (6.4X10X22)

09180-06178

$4.50

14

BOLT This part replaces 01570-05453.

01570-0545B

$3.85

15

COIL ASSY,IGNIT This part replaces 33420-38B00.

33420-38B01

$117.70

16

SPACER (6.4X10X32)

09180-06179

$4.50

17

BOLT

01570-05553

Unavailable

18

CAP, SPARK PLUG

33510-38B00

$31.72

19

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

20

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

21

CLAMP, HIGHTENSION CORD

09407-14403

$2.26

22

RELAY, FUEL CUT

33950-38B00

$78.81

23

COVER,RELAY This part replaces 33951-38B00.

33951-38B01

$15.72

24

CONTROL UNIT, DECOMP

32910-24B10

$122.34

25

SOLENOID ASSY, DECOMP

33970-38B00

$424.60

26

BRACKET, DECOMP SOLENOID

33971-38B00

Unavailable

27

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

28

CABLE, DECOMP, FR This part replaces 58900-38B01.

58900-38B20

$58.13

29

PIN

09209-04020

Unavailable

30

E RING This part replaces 08332-11033.

08332-1103A

$2.15
