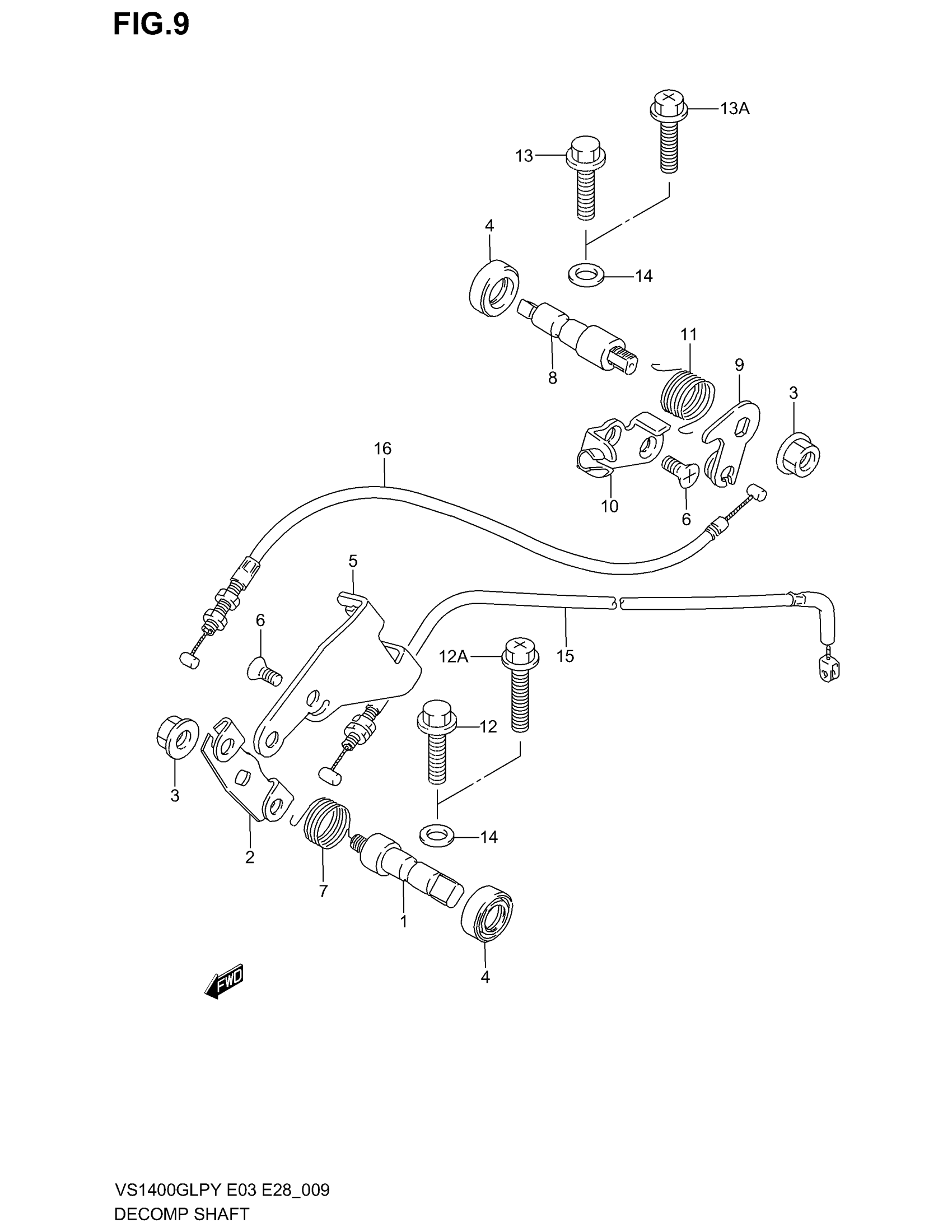

Suzuki VS1400GLP (2003) DECOMP SHAFT Diagram

#

Description
Price

1

SHAFT, DECOMP FRONT

12939-38B00

Unavailable

2

LEVER, DECOMP FRONT

12942-38B03

Unavailable

3

NUT | %E.NO.153688

08316-10087

$2.26

3

NUT | E.NO.153689% This part replaces 08316-10083.

08316-1008B

$2.66

4

OIL SEAL (10X20X6)

09282-10012

$7.98

5

HOLDER, DECOMP CABLE FRONT

12944-38B02

Unavailable

6

SCREW (CHROME) | %E.NO.171959

02122-05107

$1.49

6

SCREW | E.NO.171960% This part replaces 02122-05103.

02122-0510A

Unavailable

7

SPRING This part replaces 09448-17029.

09448-17029-XC0

$6.53

8

SHAFT, DECOMP REAR

12941-38B00

Unavailable

9

LEVER, DECOMP REAR

12952-38B01

Unavailable

10

HOLDER, DECOMP CABLE REAR

12950-38B00

Unavailable

11

SPRING, REAR

09448-17023

Unavailable

12

BOLT (CHROME) | %E.NO.171959

01550-06307

$2.69

12

BOLT | E.NO.171960%175525 This part replaces 01550-06303.

01550-0630A

$2.32

12A

BOLT, RECTIFIER | E.NO.175526% This part replaces 02162-06303.

02162-0630A

$2.07

13

BOLT (CHROME) | %E.NO.171959

01550-06257

$2.30

13

BOLT | E.NO.171960%175525 This part replaces 01550-06253.

01550-0625A

$1.97

13A

SCREW | E.NO.175526% This part replaces 02162-06253.

02162-0625A

$1.78

14

GASKET

09168-06023

$2.35

15

CABLE, DECOMP, FR This part replaces 58900-38B01.

58900-38B20

$58.13

16

CABLE, DECOMP, RR This part replaces 58910-38B10.

58910-38B20

$59.07
