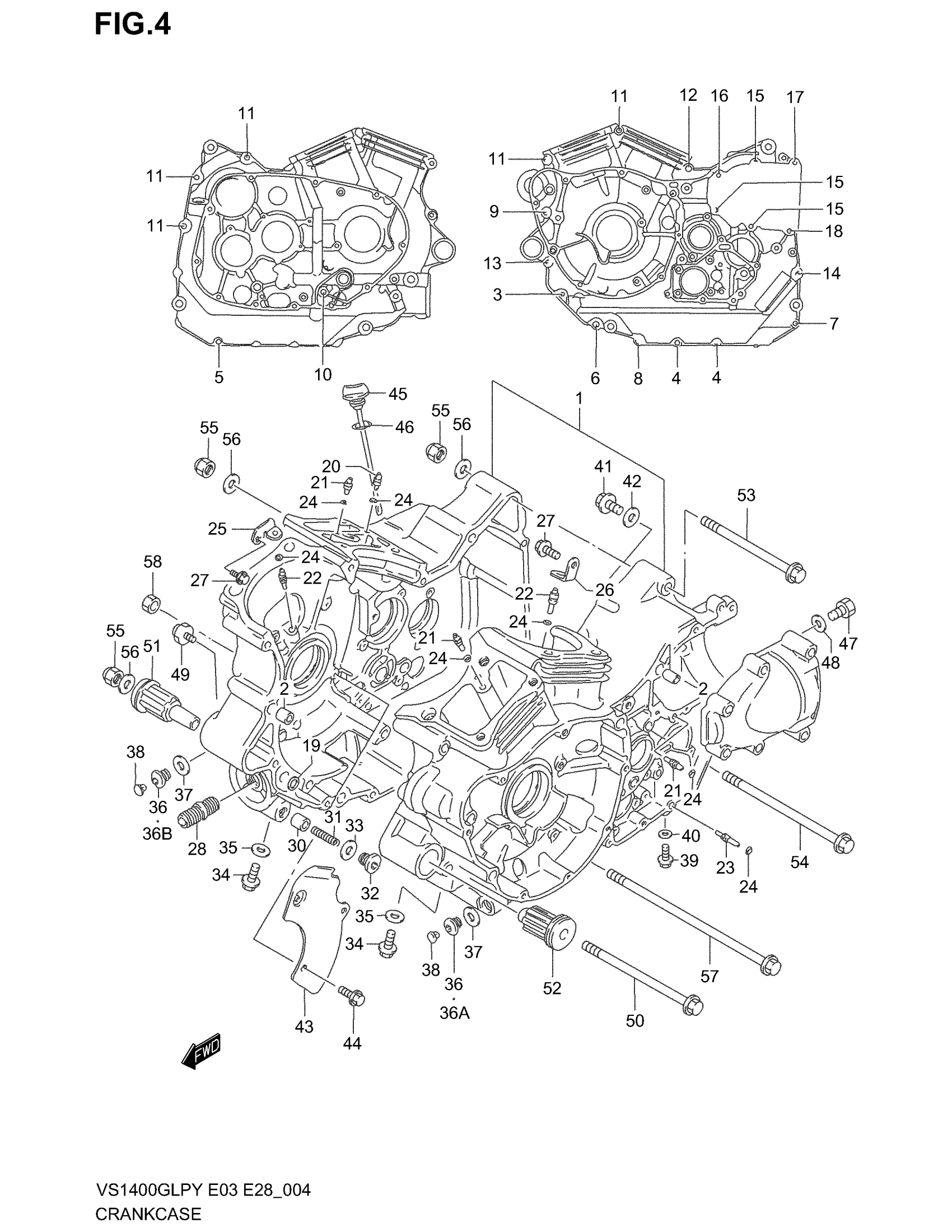

Suzuki VS1400GLP (2003) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL T/V This part replaces 11301-38815.

11301-38816

Unavailable

1

CRANKCASE SET | MODEL W %E.NO.171565 This part replaces 11301-38815.

11301-38816

Unavailable

1

CRANKCASE SET | MODEL W E.NO.171566%

11301-38816

Unavailable

1

CRANKCASE SET | MODEL X/Y/K1/K2/K3; Includes Item(s) 2 - 29

11301-38840

Unavailable

2

PIN (11X20) | MODEL T This part replaces 09206-11005.

09206-11017

$6.30

2

PIN | MODEL V/W/X/Y/K1/K2/K3

09206-11017

$6.30

3

BOLT

01550-06557

$3.30

4

BOLT

01550-06657

$4.17

5

BOLT

01550-06857

$3.68

6

BOLT

01550-08557

$3.74

7

BOLT

01550-08657

$4.68

8

BOLT

09103-08215

Unavailable

9

BOLT

01550-08907

$5.18

10

BOLT (8X115)

09103-08098

$3.29

11

BOLT (8X95)

09103-08164

$4.77

12

BOLT (8X50)

09103-08214

Unavailable

13

BOLT (8X70)

09103-08215

Unavailable

14

BOLT (8X80)

09103-08216

Unavailable

15

BOLT

01550-08407

$3.42

16

BOLT

01550-08507

$3.55

17

BOLT

01550-08557

$3.74

18

BOLT

01550-08657

$4.68

19

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

20

JET, HEAD COOLING

09493-44002

Unavailable

21

JET, HEAD/SECONDARY

09493-28010

$16.57

22

JET, PISTON COOLING

09493-80009

$20.72

23

JET, MISSION

09493-24011

Unavailable

24

O RING, JET (D:1.2,ID:4.0)

09280-04004

$1.91

25

PLATE, PISTON JET, FRONT

16438-38B00

Unavailable

26

PLATE, PISTON JET, REAR

16439-38B00

Unavailable

27

BOLT | MODEL T/V/W This part replaces 01550-06103.

01550-0610A

$1.97

27

BOLT (6X12) | MODEL X/Y/K1/K2/K3

09106-06075

$2.48

28

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

29

BEARING, CRANK THRUST (T:1.925) | SEE ILLUSTRATION ON FIG.6 (B-12)

12228-38B00-0A0

Unavailable

29

BEARING, CRANK THRUST (T:1.950)

12228-38B00-0B0

Unavailable

29

BEARING, CRANK THRUST (T:1.975)

12228-38B00-0C0

Unavailable

29

BEARING, CRANK THRUST (T:2.000)

12228-38B00-0D0

Unavailable

29

BEARING, CRANK THRUST (T:2.025)

12228-38B00-0E0

Unavailable

29

BEARING, CRANK THRUST (T:2.050)

12228-38B00-0F0

Unavailable

29

BEARING, CRANK THRUST (T:2.075)

12228-38B00-0G0

Unavailable

29

BEARING, CRANK THRUST (T:2.100)

12228-38B00-0H0

Unavailable

29

BEARING, CRANK THRUST (T:2.125)

12228-38B00-0I0

Unavailable

29

BEARING, CRANK THRUST (T:2.150)

12228-38B00-0J0

Unavailable

30

PLUNGER, OIL CONTROL

16442-34301

Unavailable

31

SPRING

09440-09030

Unavailable

32

PLUG, CONTROL PLUNGER | MODEL T/V

09248-16008

$5.72

32

PLUG, CONTROL PLUNGER | MODEL W/X/Y/K1/K2/K3

09248-16012

$4.64

33

GASKET

09168-16002

$1.91

34

PLUG, OIL GALLERY

01550-08127

$2.85

35

GASKET

09168-08015

$2.79

36

PLUG, SHAFT | %E.NO.171565 This part replaces 09248-14005.

09248-14011

$2.98

36A

PLUG, SHAFT | E.NO.171566% This part replaces 09248-14005.

09248-14011

$2.98

36B

PLUG, MAIN GALLERY NO.2 | E.NO.171566% This part replaces 09247-14027.

09247-14044

$3.85

37

GASKET

09168-14002

$2.26

38

CAP | %E.NO.162132

09250-08014

$2.85

39

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

40

GASKET (5.8X11X1.2) | %E.NO.175273

09168-06024

$2.20

40

GASKET (5.8X13X1.2) | E.NO.175274%

09168-06023

$2.35

41

PLUG, MAIN GALLERY END

09247-12006

$2.82

42

GASKET

09168-12002

$1.59

43

PLATE, OIL SEPARATOR

11521-38B01

Unavailable

44

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

45

GAUGE, OIL LEVEL | MODEL T/V/W

11970-38B01

Unavailable

45

GAUGE, OIL LEVEL | MODEL X/Y/K1/K2/K3

11970-38B10

$23.07

46

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

47

BOLT | %E.NO.171959 This part replaces 01550-12203.

01550-1220B

$4.77

47

PLUG, OIL DRAIN | E.NO.171960%

09247-12106

$2.73

48

GASKET

09168-12002

$1.59

49

SWITCH ASSY,OIL PRESSURE | %E.NO.181061 This part replaces 37820-33D00.

37820-33D11

$25.13

49

SWITCH ASSY,OIL PRESSURE | E.NO.181062% This part replaces 37820-33D10.

37820-33D11

$25.13

50

BOLT (10X155)

09103-10169

$19.87

51

BUSH,ENGINE MOU This part replaces 11660-38B00.

11660-38B01

$32.62

52

BUSH,ENGINE MOU This part replaces 11660-38A00.

11660-38A01

$28.45

53

BOLT (10X135)

09103-10168

Unavailable

54

BOLT (10X180)

09103-10170

Unavailable

55

NUT

09159-10064

$10.08

56

WASHER | MODEL T

08322-01107

$2.15

56

WASHER, KNUCKLE END | MODEL V/W/X/Y/K1/K2/K3 This part replaces 08322-01103.

08322-0110A

$1.84

57

BOLT (10X225)

09103-10205

$19.52

58

NUT

09159-10047

$9.41
