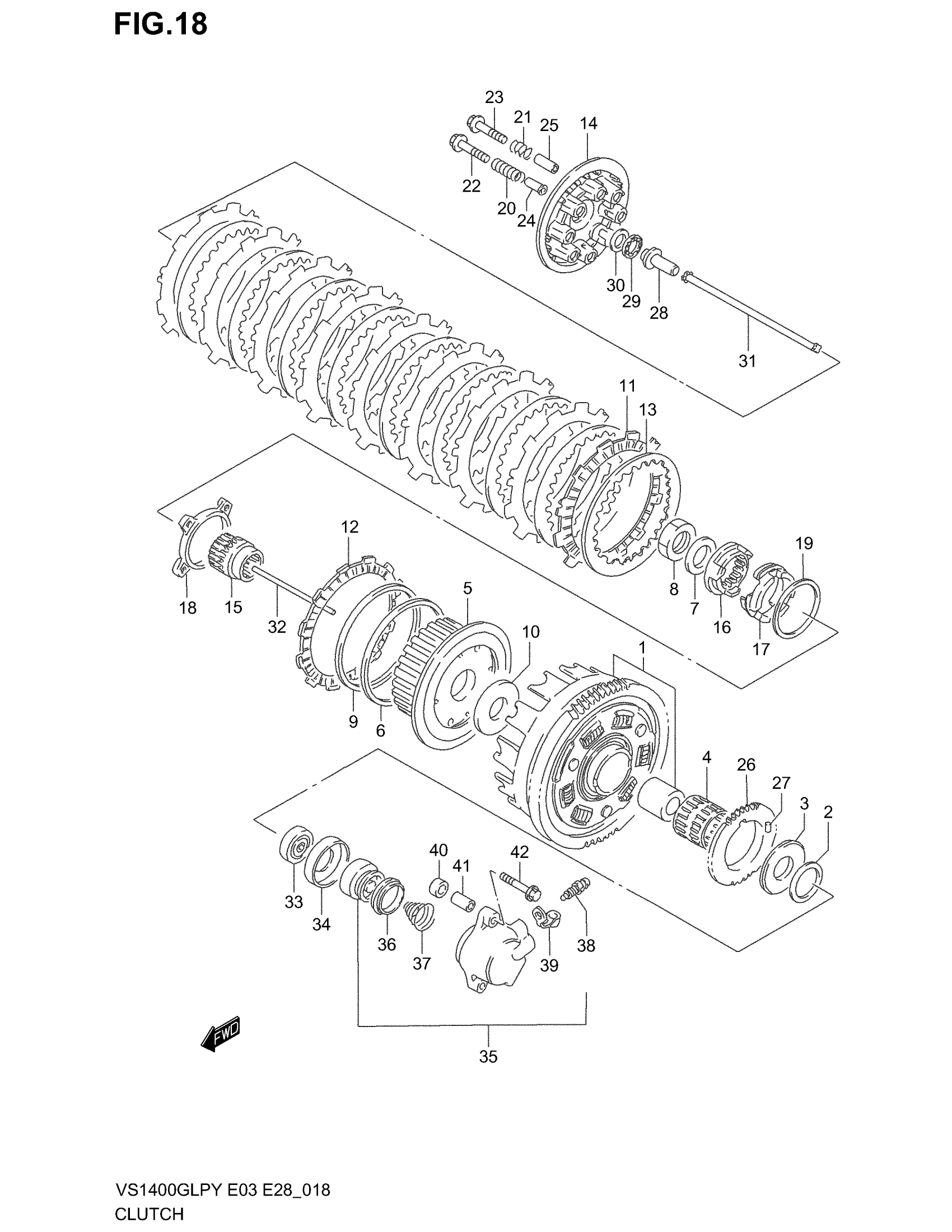

Suzuki VS1400GLP (2003) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:79) | MODEL T/V This part replaces 21200-38821.

21200-38823

$459.98

1

GEAR, PRIMARY DRIVEN (NT:79) | MODEL W/X/Y/K1/K2/K3

21200-38823

$459.98

2

WASHER, INNER (25X38X2.5)

09160-25066

$7.33

3

WASHER (25X54X2.5) | MODEL T/V/W

09160-25067

Unavailable

3

WASHER (25X54X2.5) | MODEL X/Y/K1/K2/K3

09160-25037

$8.85

4

BEARING (35X40X35.8)

09263-35017

$40.54

5

HUB, SLEEVE

21410-38B00

$167.93

6

SEAT, WAVE WASHER

21471-37400

$9.78

7

WASHER (22.4X45X2.50)

09164-22008

$8.25

8

NUT

09140-22011

Unavailable

9

WASHER (110.5X119X0.9)

09164-00004

$11.35

10

WASHER (25X60X2.50)

09160-25065

$18.70

11

PLATE, DRIVE NO.1 | MODEL T/V This part replaces 21441-07A02.

21441-12D01

$20.64

11

PLATE, DRIVE NO.1 | MODEL W/X/Y/K1/K2/K3

21441-12D01

$20.64

12

PLATE, CLUTCH DRIVE NO.2

21442-37401

$18.67

13

PLATE, DRIVEN

21451-05A00

$9.83

14

DISC, PRESSURE

21462-38B00

Unavailable

15

SPACER

21621-38B00

Unavailable

16

CAM, CLUTCH NO.1 | MODEL T/V This part replaces 26111-38B02.

26111-38B03

Unavailable

16

CAM, CLUTCH NO.1 | MODEL W/X/Y/K1/K2/K3

26111-38B03

Unavailable

17

CAM, CLUTCH NO.2 | MODEL T/V This part replaces 26112-38B01.

26112-38B02

Unavailable

17

CAM, CLUTCH NO.2 | MODEL W/X/Y/K1/K2/K3

26112-38B02

Unavailable

18

SLIDER, CLUTCH SPRING | MODEL T/V This part replaces 21613-38B00.

21613-38B01

$72.82

18

SLIDER, CLUTCH SPRING | MODEL W/X/Y/K1/K2/K3

21613-38B01

$72.82

19

WASHER, THRUST (54X62X1)

09160-54002

Unavailable

20

SPRING

09440-14021

$3.79

21

SPRING, NO.2

09440-14022

$3.79

22

BOLT (6X40)

09116-06135

$2.39

23

BOLT | MODEL T/V/W/X/Y/K1 This part replaces 01550-06353.

01550-0635A

$2.32

23

BOLT, NO.2 (6X35) | MODEL K2/K3

09116-06136

$2.42

24

SPACER (6.1X9X25.1)

09180-06177

$6.23

25

SPACER (6.1X9X24.1) | MODEL T This part replaces 09180-06192.

09180-06276

$5.07

25

SPACER (6.1X9X24.1) | MODEL V/W/X/Y/K1/K2/K3

09180-06276

$5.07

26

GEAR, OIL PUMP DRIVE (NT:40)

16321-38B00

$74.35

27

PIN

09261-06002

$1.53

28

PIECE, PUSH

23121-38B00

$27.62

29

BEARING (15X28X2)

09263-15003

$8.29

30

WASHER (15X28X1)

09160-15045

$3.89

31

ROD, PUSH RH

23110-38B00

$23.19

32

ROD, PUSH LH

23111-24A01

$13.30

33

OIL SEAL (6X34X11)

09285-06017

$11.61

34

RETAINER

23117-38A00

$5.05

35

CYLINDER COMP,C | Includes Item(s) 36 - 39 This part replaces 23160-38B00.

23160-38B01

$101.68

36

CUP

23163-06B00

$7.22

37

SPRING

23164-05A00

$4.34

38

BLEEDER

59121-01A00

$8.73

39

CAP

59122-01A00

$4.34

40

SPACER (9X16X11)

09180-09019

$6.78

41

PIN

09206-09011

$8.77

42

BOLT This part replaces 01550-06403.

01550-0640A

$2.42
