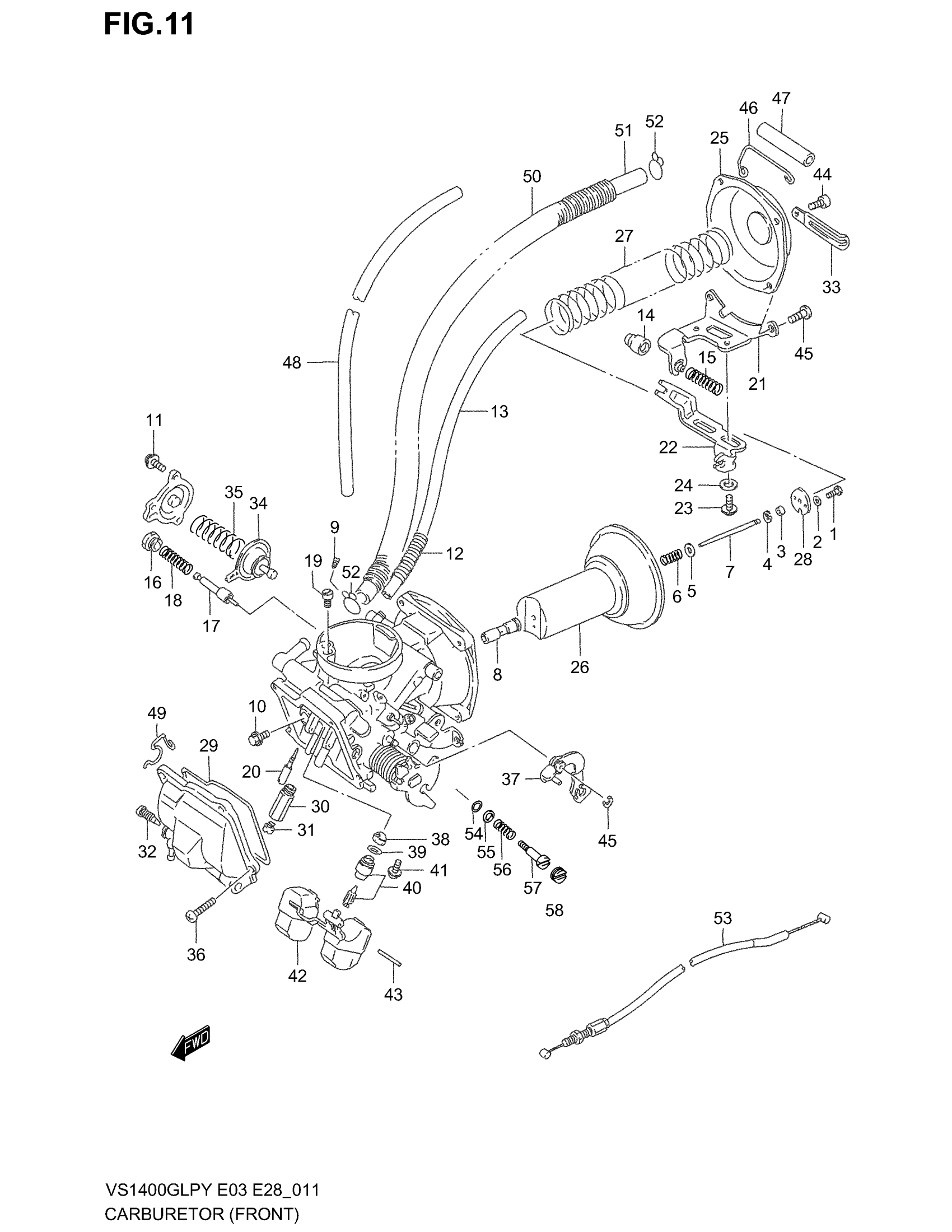

Suzuki VS1400GLP (2003) CARBURETOR (FRONT) Diagram

CARBURETOR ASSY, FRONT | MODEL T E3

13210-38B40

Unavailable

CARBURETOR ASSY, FRONT | MODEL T E28

13210-38B70

Unavailable

CARBURETOR ASSY, FRONT | MODEL T E33

13210-38B50

Unavailable

CARBURETOR ASSY, FRONT | MODEL V/W/X/Y/K1/K2/K3 E3,E28 This part replaces 13210-38BE0.

13210-38BE1

Unavailable

CARBURETOR ASSY, FRONT | MODEL V/W/X/Y/K1/K2/K3 E33; Includes Item(s) 1 - 49

13210-38BF0

Unavailable

SCREW This part replaces 02112-03063.

02112-0306B

$1.59

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

RING

13387-47010

$7.22

E RING

13394-10010

$5.45

WASHER

13382-44030

$3.71

SPRING

13388-44030

$8.12

NEEDLE, JET (5D51-1)

13383-38B40

$19.15

NEEDLE, JET (5D39-3) | MODEL T E28

13383-38B90

Unavailable

JET, NEEDLE (O-9) | MODEL T

09494-00570

Unavailable

JET, NEEDLE (O-9M) | MODEL V/W/X/Y/K1/K2/K3

09494-00894

$51.93

JET, AIR (1.4) | MODEL T/V This part replaces 09493-28007.

09493-28006

$16.32

JET, PILOT AIR (1.4) | MODEL W/X/Y/K1/K2/K3

09493-28006

$16.32

JET, PILOT AIR (1.7) | MODEL T E28

09493-34002

Unavailable

SCREW

13605-38B00

$7.95

SCREW This part replaces 02112-04103.

02112-0410A

$1.49

SPRING

13689-38A00

$9.17

HOSE,5X10X600 | L:600!185 This part replaces 09352-50823-600.

44421-13ER0

$10.06

.CAP This part replaces 13681-04010.

13681-04011

$4.93

SPRING

13417-37100

$4.35

HOLDER, GUIDE

13418-05A10

$12.57

PLUNGER | MODEL T/V/W/X/Y This part replaces 13411-38B00.

13411-05300

$24.17

PLUNGER ASSY | MODEL K1/K2/K3

13411-05300

$24.17

SPRING

13417-43010

$4.34

JET, PILOT AIR (70)

09492-70004

$11.83

JET, POWER (55) | MODEL T E28 This part replaces 09492-55010.

09492-55012

$18.02

JET, PILOT (50)

09492-50018

$17.37

BRACKET

13628-38B00

Unavailable

LEVER

13422-38B00

Unavailable

SCREW

13602-05A30

$4.35

WASHER

13332-05A20

$3.37

COVER

13502-38A00

$37.53

DIAPHRAGM ASSY This part replaces 13500-05A10.

13500-05A11

$115.12

DIAPHRAGM ASSY | MODEL T E28

13500-38B20

$270.62

SPRING

13503-38B00

$10.69

PLATE

13389-37400

$7.08

O RING

13251-38A00

$6.79

HOLDER

13385-05A11

$14.85

JET, MAIN (125)

09491-25014

$16.78

SCREW, DRAIN | MODEL T/V/W/X/Y This part replaces 13247-13A00.

13247-02340

$4.99

SCREW | MODEL K1/K2/K3

13247-02340

$4.99

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

SPRING

13481-38B40

$5.67

SCREW

13601-04148

$2.81

LEVER ASSY | MODEL T/V This part replaces 13554-45C00.

13554-45C20

$41.63

LEVER ASSY | MODEL W/X/Y/K1/K2/K3

13554-45C20

$41.63

FILTER | MODEL T/V/W/X/Y This part replaces 13376-84110.

13376-19F00

$10.28

FILTER | MODEL K1/K2/K3

13376-19F00

$10.28

O RING | MODEL T/V/W/X/Y This part replaces 13374-44080.

13374-35C00

$5.99

O RING | MODEL K1/K2/K3

13374-35C00

$5.99

VALVE ASSY, NEEDLE

13370-39A00

$60.40

SCREW

13602-05A10

$3.56

FLOAT

13250-38B00

$27.75

PIN, FLOAT

13254-20010

$4.28

SCREW This part replaces 02112-05123.

02112-0512A

$1.49

E RING

13415-38300

$2.08

CLIP

13671-38A00

Unavailable

HOSE(6X10X600) | L:600!50 This part replaces 09352-60103-600.

09352-60104-600

$8.99

HOSE (5X8X430) | E33 This part replaces 13683-38B00.

13683-38B01

$34.98

CLIP

13692-24A00

Unavailable

SHIELD, FUEL HOSE HEAT

13684-38B10

$21.27

HOSE | MODEL Y/K1/K2/K3 E33 This part replaces 44423-21F00.

13684-38B10

$21.27

HOSE(6.5X11.5X6 | L:600!550 This part replaces 09354-65113-600.

09355-65001-600

$12.00

CLIP (ID:11) | MODEL T/V This part replaces 09401-11402.

09401-11403

$2.85

CLIP (ID:11) | MODEL W/X/Y/K1/K2/K3

09401-11403

$2.85

CABLE, ID SYNCRO This part replaces 13641-38B02.

13641-38B03

$19.98

O-RING This part replaces 13295-29900.

13295-29901

$4.34

WASHER

13291-29900

$1.98

.SPRING (NT:45)

13268-47070

$4.34

SCREW, PILOT FUEL

13279-47070

$13.36

PLUG

13281-05A00

$4.60
