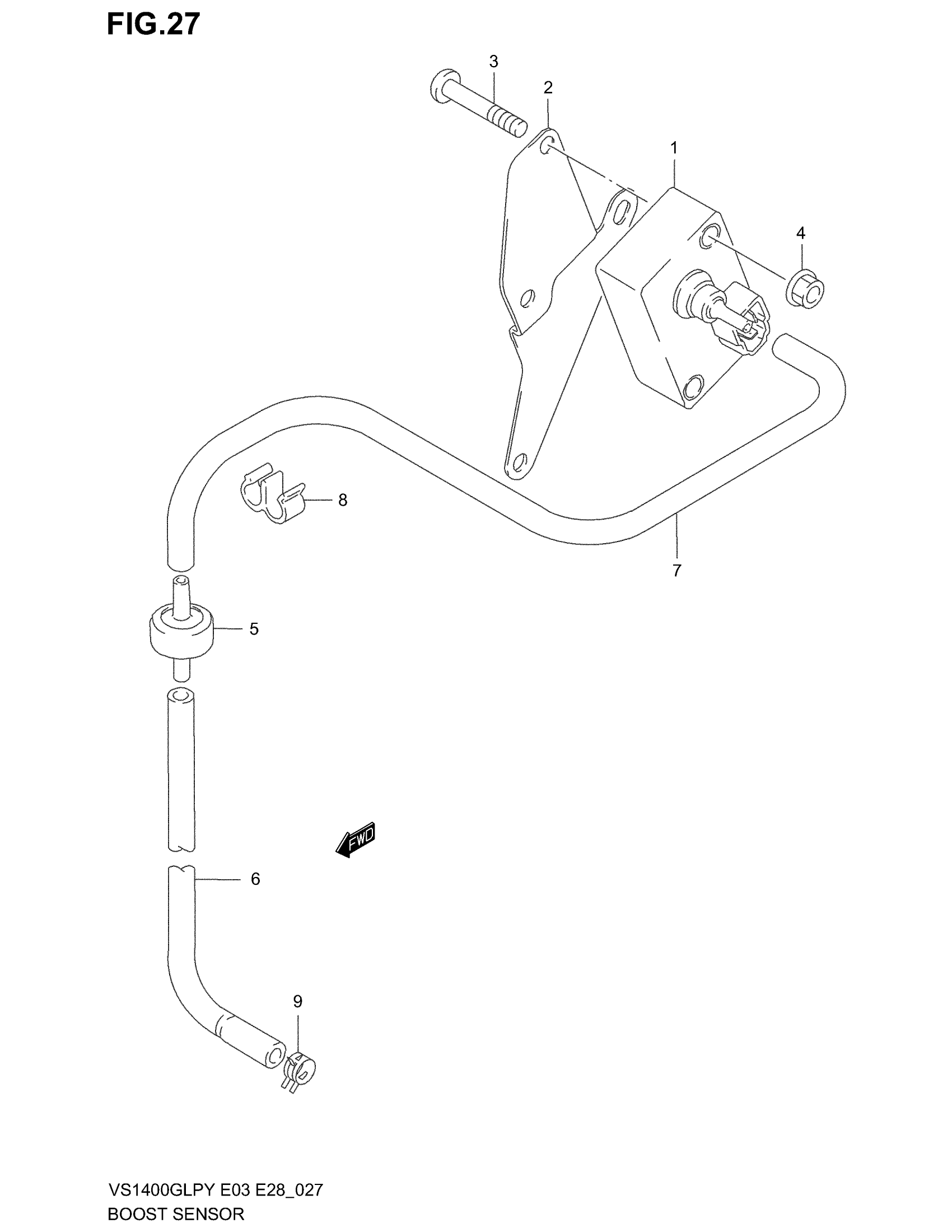

Suzuki VS1400GLP (2003) BOOST SENSOR Diagram

#

Description

Price

1

SENSOR ASSY, BOOST

33240-38B00

Unavailable

2

BRACKET

33241-38B00

Unavailable

3

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.78

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

FILTER ASSY, VSV

27965-85400

$15.42

6

HOSE,BOOST NO.1 This part replaces 33242-38B00.

33242-38B01

$5.74

7

HOSE(3.5X7.5X20 | MODEL T,L:2000!700 This part replaces 09354-35753-00B.

09355-35007-00B

$23.02

7

HOSE(3.5X7.5X20 | MODEL V/W/X/Y/K1/K2/K3 L:2000!700 This part replaces 09355-35755-00B.

09355-35007-00B

$23.02

8

CLAMP, BOOST HOSE

09408-00033

$2.83

9

CLIP, HOSE This part replaces 09401-07402.

09401-06405

$2.45
