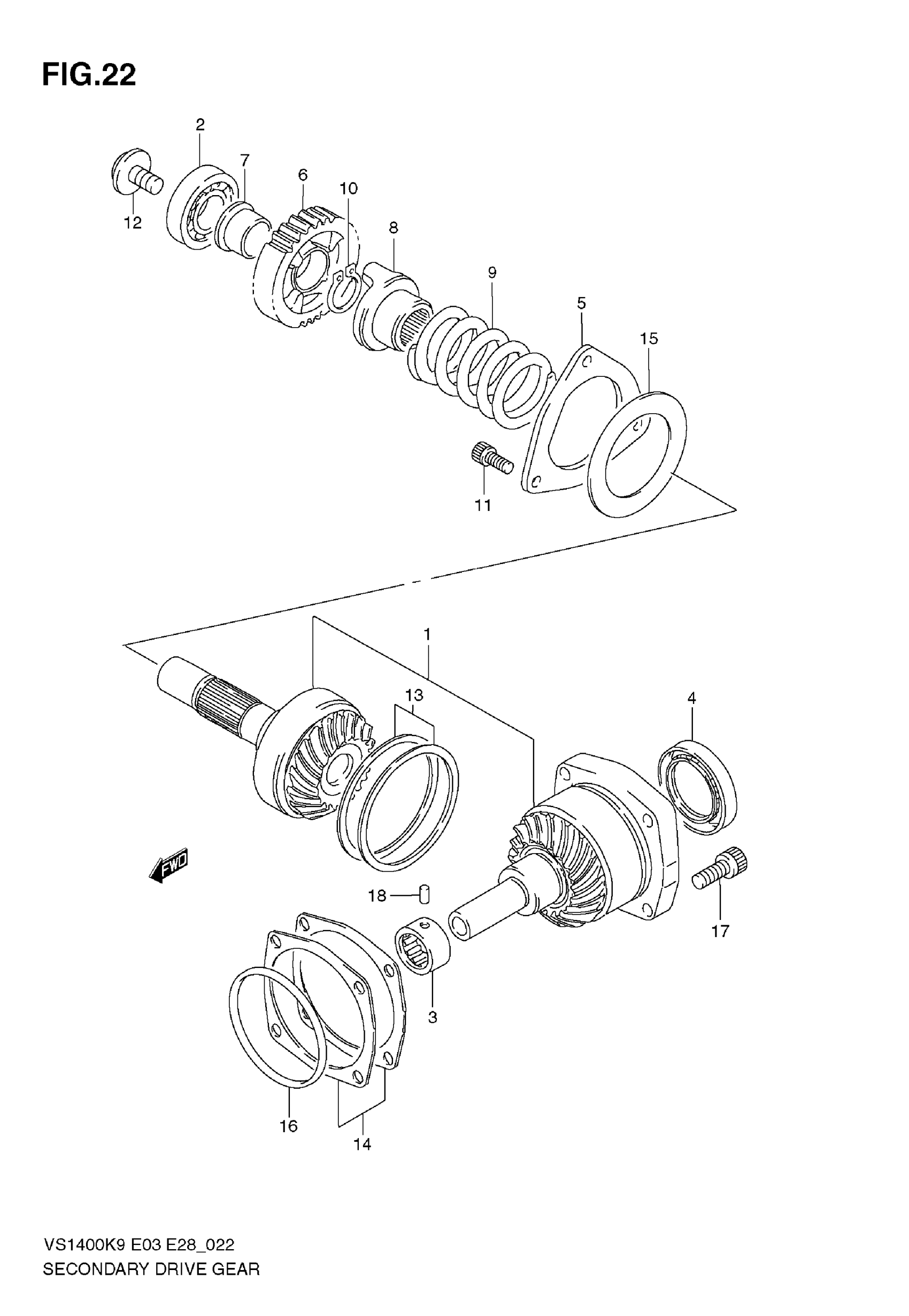

Suzuki VS1400 (2009) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

GEAR & HOUSING SET, SECONDARY | NT:19/19; Includes Item(s) 2 - 4

24900-38830

Unavailable

2

BEARING (25X62X17)

09262-25080

$38.77

3

BEARING (20X34X16)

09263-20038

$55.95

4

OIL SEAL (44X68X8)

09283-44010

$38.94

5

STOPPER, BEARING

24931-38B00

Unavailable

6

GEAR, OVER DRIVING DRIVEN | NT:29

24631-38B00

Unavailable

7

BUSH

24632-38B01

Unavailable

8

DOG, OUTPUT CAM

24922-38B01

Unavailable

9

SPRING

09440-57001

Unavailable

10

CIRCLIP

08331-3126A

$2.32

11

BOLT, BEARING STOPPER | 8X20

09106-08106

$2.72

12

BOLT

09103-14005

$11.15

13

SHIM SET, SEC DRIVE | T:1.10/1.15/1.20/1.25 1.30/1.35/1.40

24935-38820

Unavailable

14

SHIM SET, SEC DRIVE | T:0.30/0.35/0.40 0.50/0.60

24945-38810

Unavailable

15

WASHER (57X90X3)

09160-57001

Unavailable

16

O RING (D:3.7,ID:76.5)

09280-78003

$7.55

17

BOLT (8X25)

09106-08097

$2.72

18

PIN

04221-07129

$1.86
