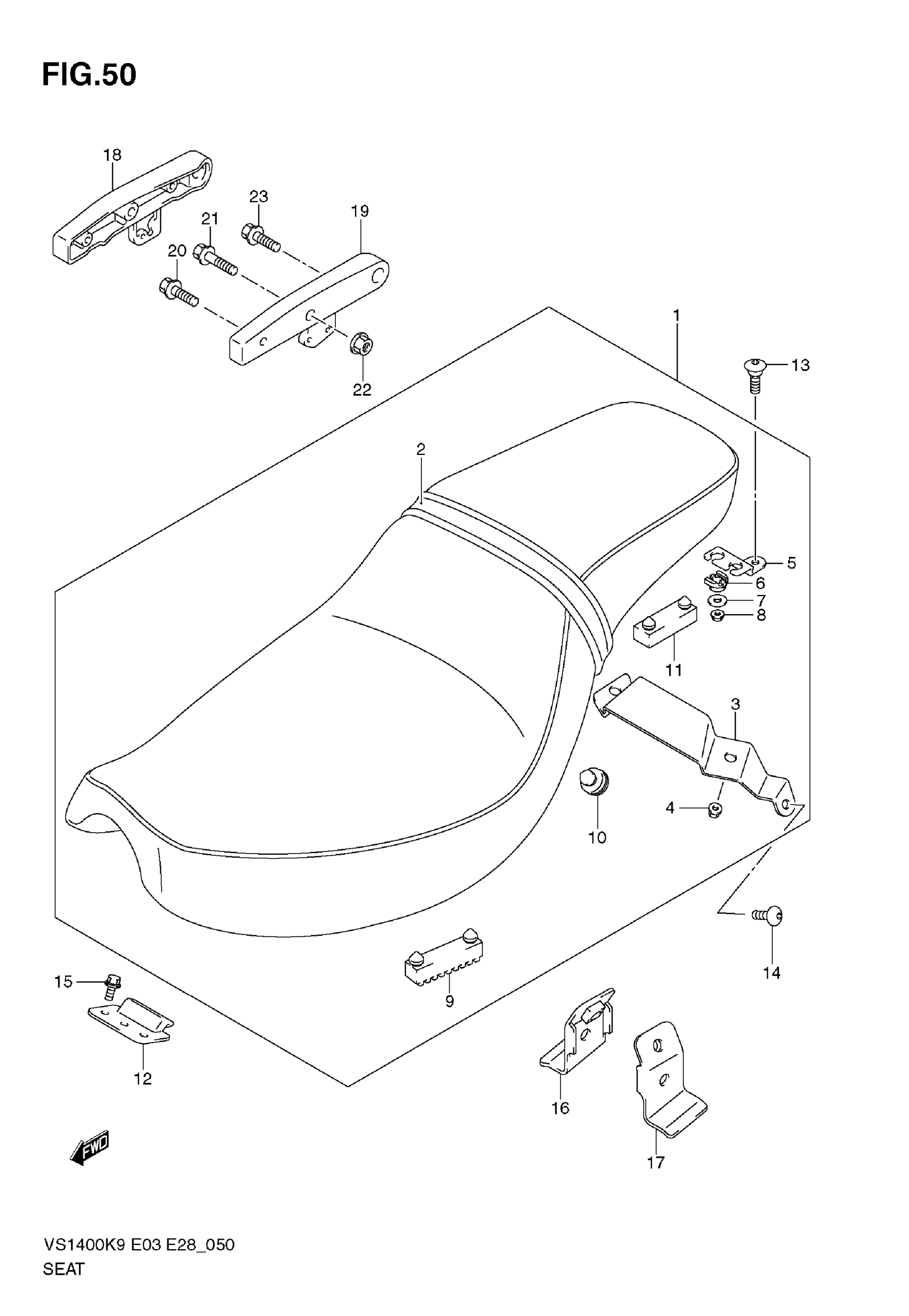

Suzuki VS1400 (2009) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 11

45100-38BA0-HW9

Unavailable

2

BAND ASSY

45180-38BA0

Unavailable

3

BRACKET, BAND

45115-38BA0

Unavailable

4

NUT

08319-3106A

$2.03

5

BRACKET, REAR

45118-38BA0

Unavailable

6

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.47

7

.WASHER (6.5X20X1.6)

09160-06088

$1.65

8

NUT

08316-1006A

$2.19

9

CUSHION

45148-31E00

$8.69

10

CUSHION This part replaces 45148-16700.

09321-10002

$2.22

11

CUSHION

45149-43500

$6.85

12

BRACKET, FRONT

45210-38B00

$19.72

13

BOLT, REAR

09139-06121

$4.17

14

SCREW, SEAT CENTER

09106-06117

$5.10

15

BOLT, BRACKET

01580-06167

$3.33

16

BRACKET, SEAT CENTER, R

45116-38BA0

Unavailable

17

BRACKET, SEAT CENTER, L

45117-38BA0

Unavailable

18

HANDLE, PILLION RIDER, R

46212-38B22

Unavailable

19

HANDLE, PILLION RIDER, L

46213-38B22

Unavailable

20

BOLT, FRONT

01580-0640B

$3.72

21

BOLT, CENTER

01580-0845B

$4.68

22

NUT

08316-1008B

$2.66

23

BOLT, REAR

01580-0620B

$3.30
