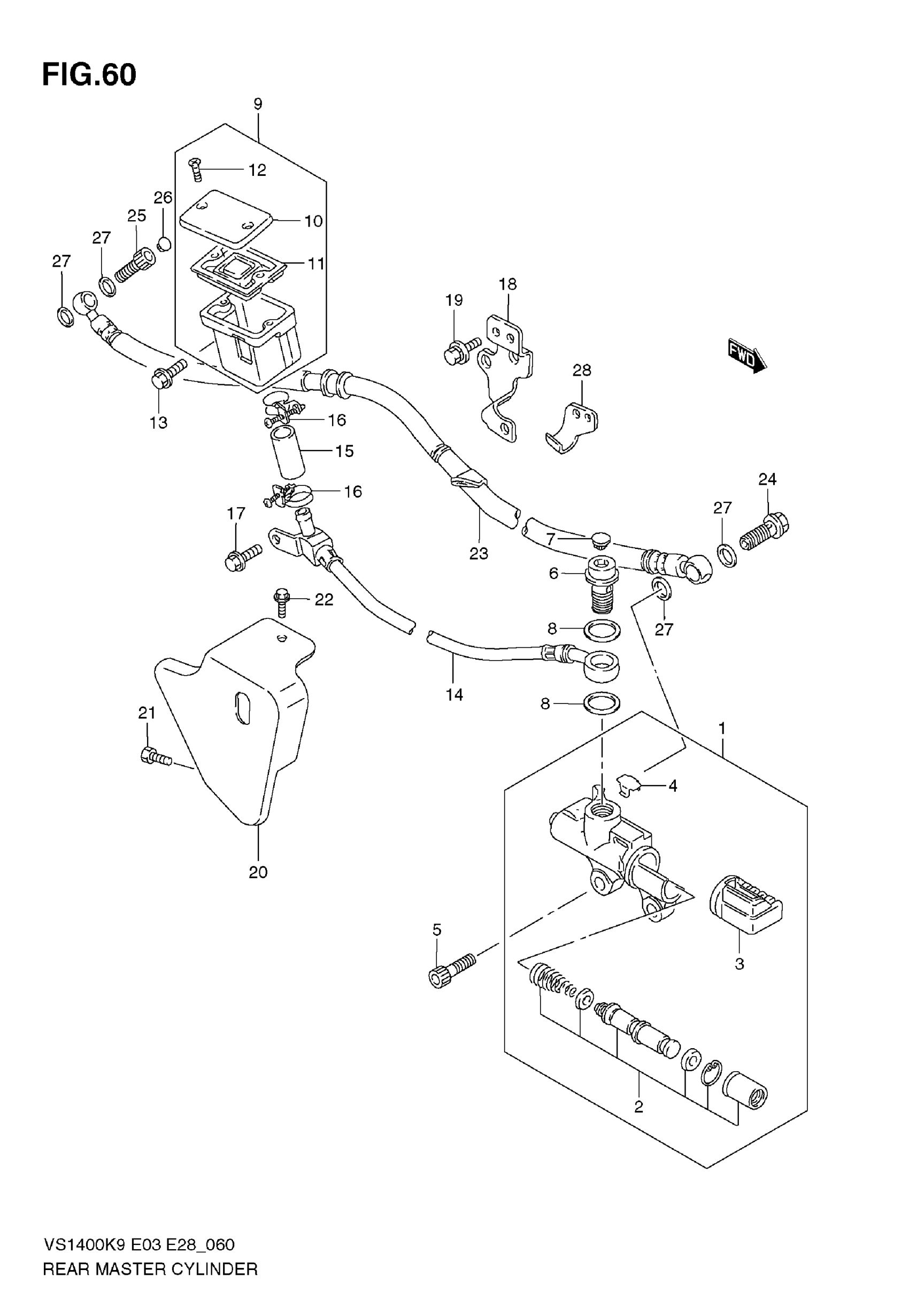

Suzuki VS1400 (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 4

69600-38B01

$267.08

2

PISTON & CUP SET

69600-38810

$51.24

3

BOOT

69691-38B00

$11.78

4

PLATE, STOP

69696-38B00

Unavailable

5

BOLT (8X23)

09106-08081

$2.90

6

BOLT, BRAKE FLUID

09360-14013

Unavailable

7

CAP

09250-08014

$2.85

8

WASHER

69662-38B00

$4.17

9

TANK ASSY, RESERVOIR | Includes Item(s) 10 - 12

69740-38B21

$103.83

10

CAP

59669-05D00

$16.76

11

DIAPHRAGM

59667-04700

$9.78

12

SCREW

69689-04A00

$1.78

13

BOLT

01550-0616B

$2.48

14

HOSE, TANK

69730-38B00

$307.15

15

HOSE, TANK

69731-38B00

$7.37

16

CLAMP

09401-13417

$2.26

17

BOLT

01550-0616B

$2.48

18

BRACKET, TANK

69750-38B00

Unavailable

19

BOLT

01550-0816B

$2.73

20

COVER, TANK (WITH HOLE)

69795-38B10

Unavailable

21

SCREW, REAR (6X10)

09128-06044

$1.49

22

BOLT, UPPER

01547-06107

$1.65

23

HOSE,RR BRAKE This part replaces 69480-38B02.

69480-38B03

$64.07

24

BOLT (10X1.00X22)

09360-10061

$6.43

25

BOLT (10X1.00X24)

09360-10028

Unavailable

26

CAP

09250-08012

$2.15

27

WASHER (10X15X1.5)

09161-10009

$1.84

28

CLAMP, HOSE

69244-38B00

Unavailable
