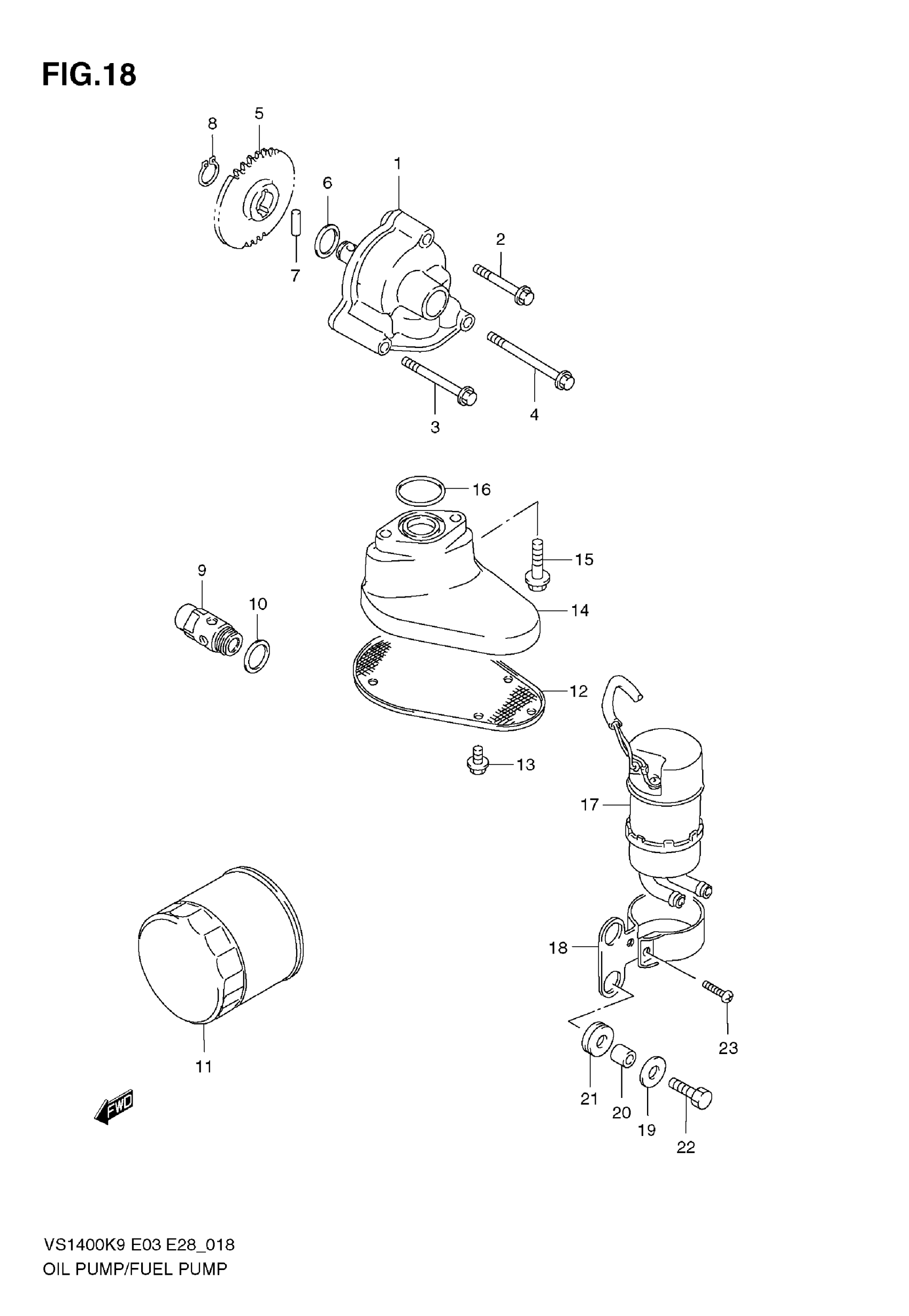

Suzuki VS1400 (2009) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL

16400-38B00

Unavailable

2

BOLT

01547-0645B

$2.73

3

BOLT

01547-0655B

$2.75

4

BOLT

01547-0665B

$3.18

5

GEAR, OIL PUMP DRIVEN (NT:31)

16331-38B01

Unavailable

6

WASHER

09181-12158

$2.26

7

PIN

09261-05006

$1.49

8

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

9

VALVE ASSY,OIL RELIEF

16440-17C20

$63.47

10

GASKET

09168-16002

$1.91

11

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$13.10

12

STRAINER, OIL

16520-38B10

Unavailable

13

BOLT

01550-0510A

$2.43

14

HOLDER, OIL STRAINER

16525-38B10

Unavailable

15

BOLT

01550-0625A

$1.97

16

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

17

PUMP ASSY,FUEL This part replaces 15100-38A00.

15100-38A01

$236.61

18

BRACKET, FUEL PUMP

15110-38B01

Unavailable

19

.WASHER (6.5X20X1.6)

09160-06088

$1.65

20

SPACER (6.5X10X9.4)

09180-06286

$2.50

21

CUSHION

09320-10015

$2.54

22

BOLT

01500-0625B

$2.38

23

SCREW

02142-04167

Unavailable
