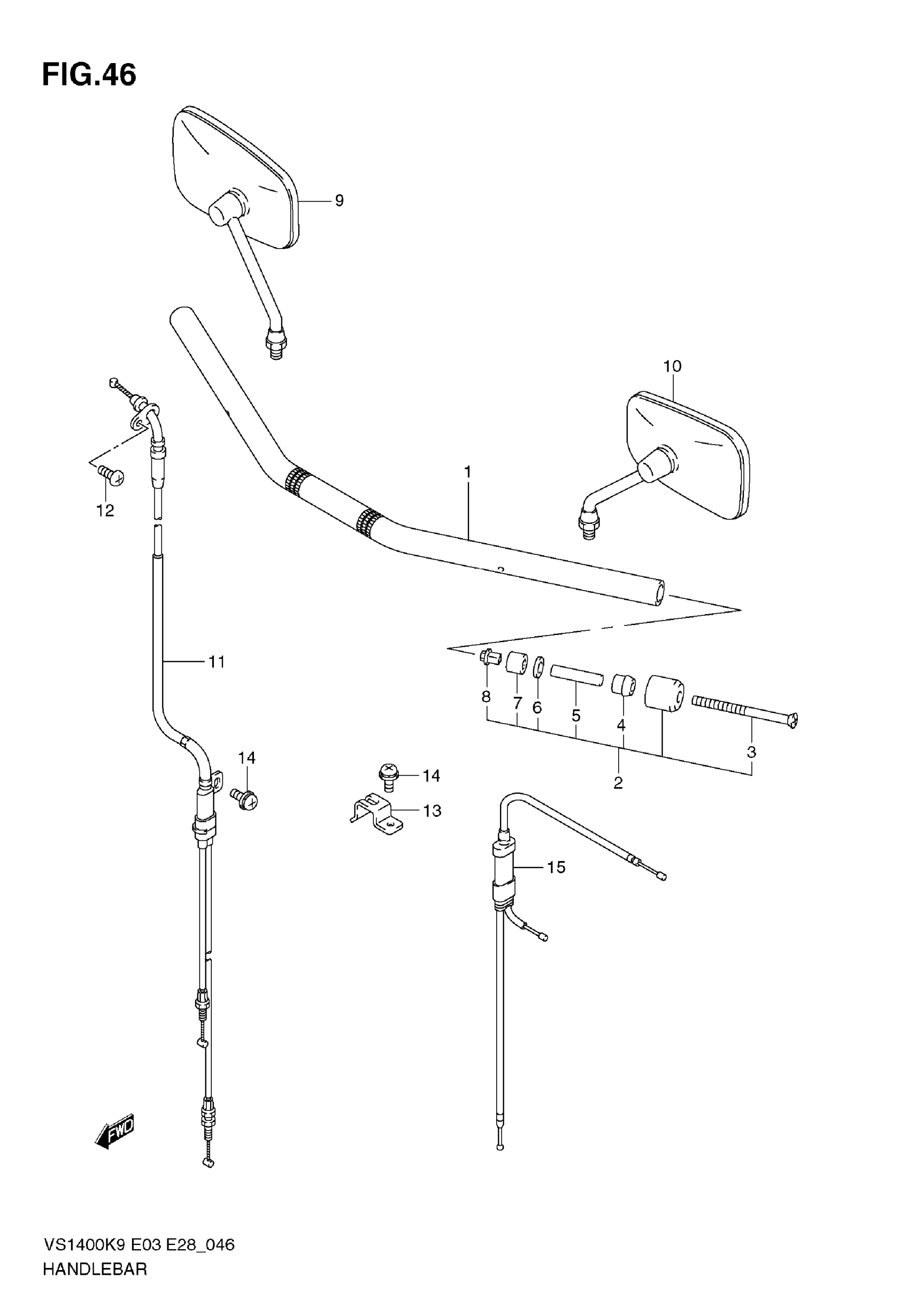

Suzuki VS1400 (2009) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-39B00

$180.18

2

BALANCER SET, HANDLEBAR | Includes Item(s) 3 - 8 This part replaces 56200-10891.

56200-10892

$57.38

3

SCREW (6X125)

09127-06017

$2.78

4

EXPANDER, HANDLE BALANCER

56272-26D01

$7.25

5

SPACER, EXPANDER

56276-17D00

$5.07

6

WASHER

09160-06131

$2.50

7

EXPANDER, INNER

56272-10G10

$4.73

8

NUT

56273-10G10

$8.65

9

MIRROR ASSY, REAR VIEW RH

56500-45C61

$237.13

10

MIRROR ASSY, REAR VIEW LH

56600-45C61

$237.13

11

CABLE ASSY, THROTTLE

58300-39B00

$86.63

12

SCREW

09139-05033

$2.20

13

CLAMP

58621-38B00

$6.38

14

SCREW

02112-7512B

Unavailable

15

CABLE, STARTER

58400-39B00

$36.08
