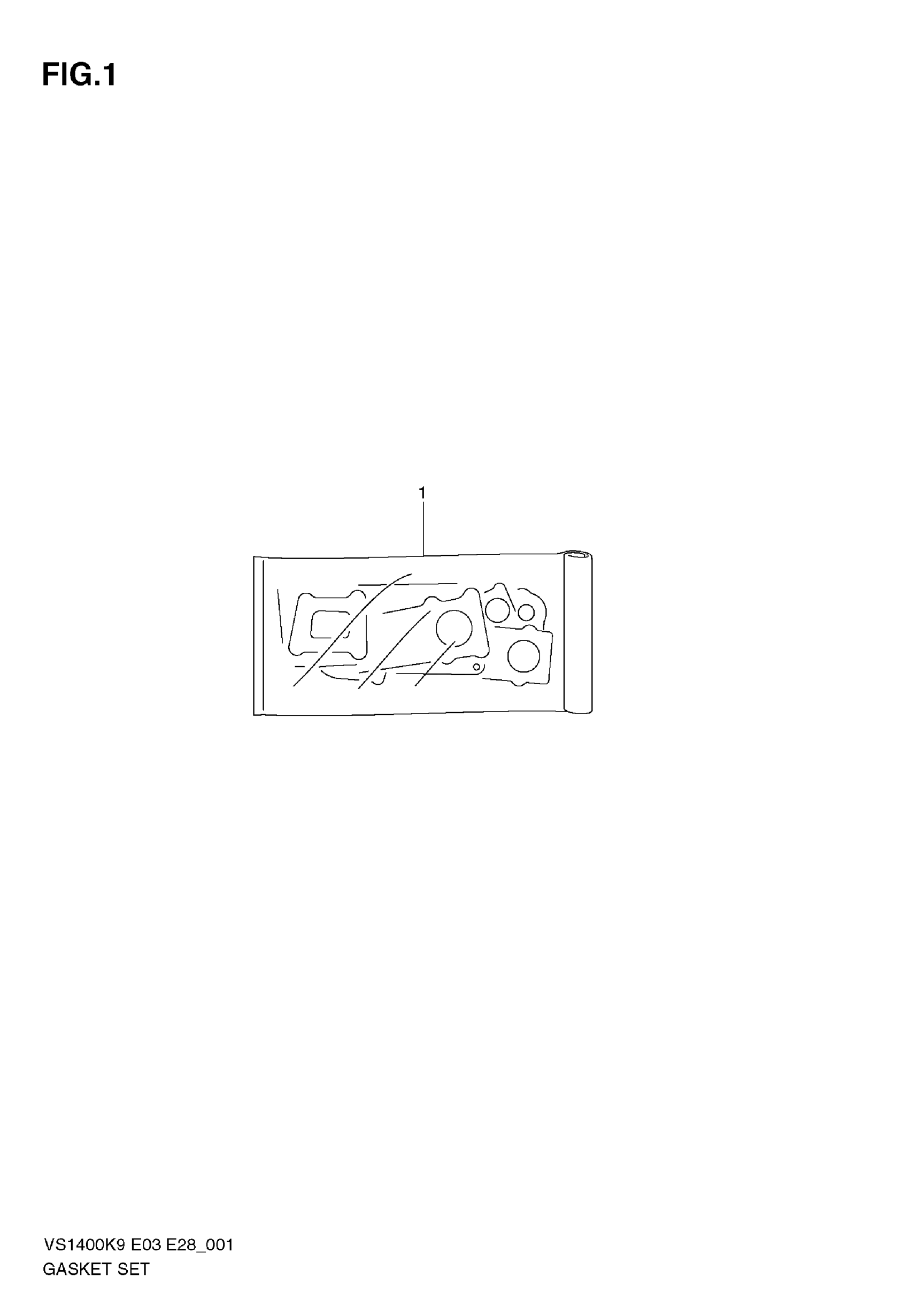

Suzuki VS1400 (2009) GASKET SET Diagram

#

Description
Price

1

GASKET SET | Includes Item(s) 2 - 23

11400-38865

$317.10

2

GASKET, CYLINDER HEAD FRONT | NOT SHOWN

11141-38B00

$61.55

3

GASKET, CYLINDER HEAD REAR | NOT SHOWN

11142-38B00

$61.55

4

GASKET, BREATHER COVER | NOT SHOWN

11177-38B01-H17

$12.35

5

GASKET, CYLINDER FRONT | NOT SHOWN

11241-38B00-H17

$29.10

6

GASKET, CYLINDER REAR | NOT SHOWN

11242-38B00-H17

$29.10

7

GASKET, CLUTCH COVER | NOT SHOWN

11482-38B20

$23.07

8

GASKET, GENERATOR COVER | NOT SHOWN

11483-38B10

$11.48

9

GASKET, GEAR SHIFT COVER | NOT SHOWN

11485-38B20

$7.58

10

GASKET, EXHAUST PIPE | NOT SHOWN

14181-45C00

$7.38

11

GASKET | NOT SHOWN

09168-06018

$1.77

12

GASKET (5.8X13X1.2) | NOT SHOWN

09168-06023

$2.35

13

GASKET (16X22X2) | NOT SHOWN

09168-16002

$1.91

14

GASKET (16X22X2) | NOT SHOWN

09168-16003

$1.91

15

GASKET (18X24.2X2) | NOT SHOWN

09168-18003

$1.49

16

O RING (D:1.2,ID:4.0) | NOT SHOWN

09280-04004

$1.91

17

O RING (D:1.9,ID:12.6) | NOT SHOWN

09280-12009

$3.18

18

O RING (D:3.1,ID:16.8) | NOT SHOWN

09280-17003

$1.65

19

O RING (D:3.1,ID:22.7) | NOT SHOWN

09280-22008

$2.27

20

O RING (D:2.4,ID:36.5) | NOT SHOWN

09280-36001

$3.29

21

O RING (D:1.9,ID:40.7) | NOT SHOWN This part replaces 09280-40012.

09280-41007

$9.04

22

O RING | NOT SHOWN

09280-42003

$8.65

23

O RING (D:3.7,ID:76.5) | NOT SHOWN

09280-78003

$7.55
