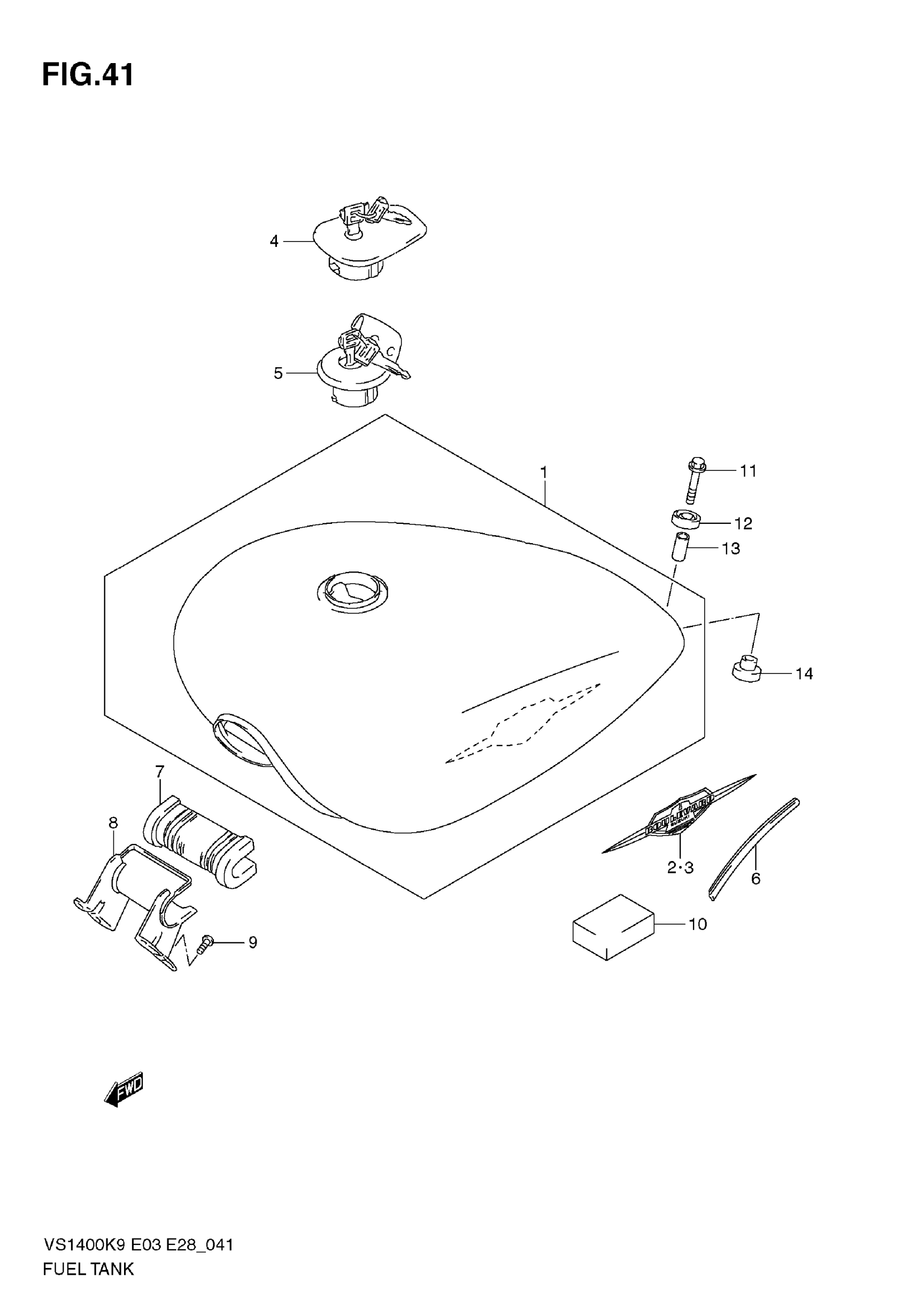

Suzuki VS1400 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-39B20-YAY

Unavailable

1

TANK ASSY, FUEL (GRAY)

44100-39B20-YHG

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-39B30-YAY

Unavailable

1

TANK ASSY, FUEL (GRAY) | E33

44100-39B30-YHG

Unavailable

2

EMBLEM, RH

68111-39B00

Unavailable

3

EMBLEM, LH

68121-39B00

Unavailable

4

CAP SET, FUEL TANK

44200-38820

$108.83

5

(CA)CAP,FUEL TA | E33 This part replaces 44200-24820.

44200-24821

$144.14

6

MOLDING

68241-04X50-300

$7.32

7

CUSHION, FRONT

44511-38B01

$11.38

8

BRACKET, FRONT (BLACK)

44250-38B00-019

Unavailable

9

SCREW

02112-7616B

Unavailable

10

CUSHION, SIDE This part replaces 44512-38B00.

56314-48B10

$7.75

11

BOLT

01550-0635B

$2.73

12

CUSHION

09320-14013

$2.11

13

SPACER

09180-06274

$3.72

14

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60
