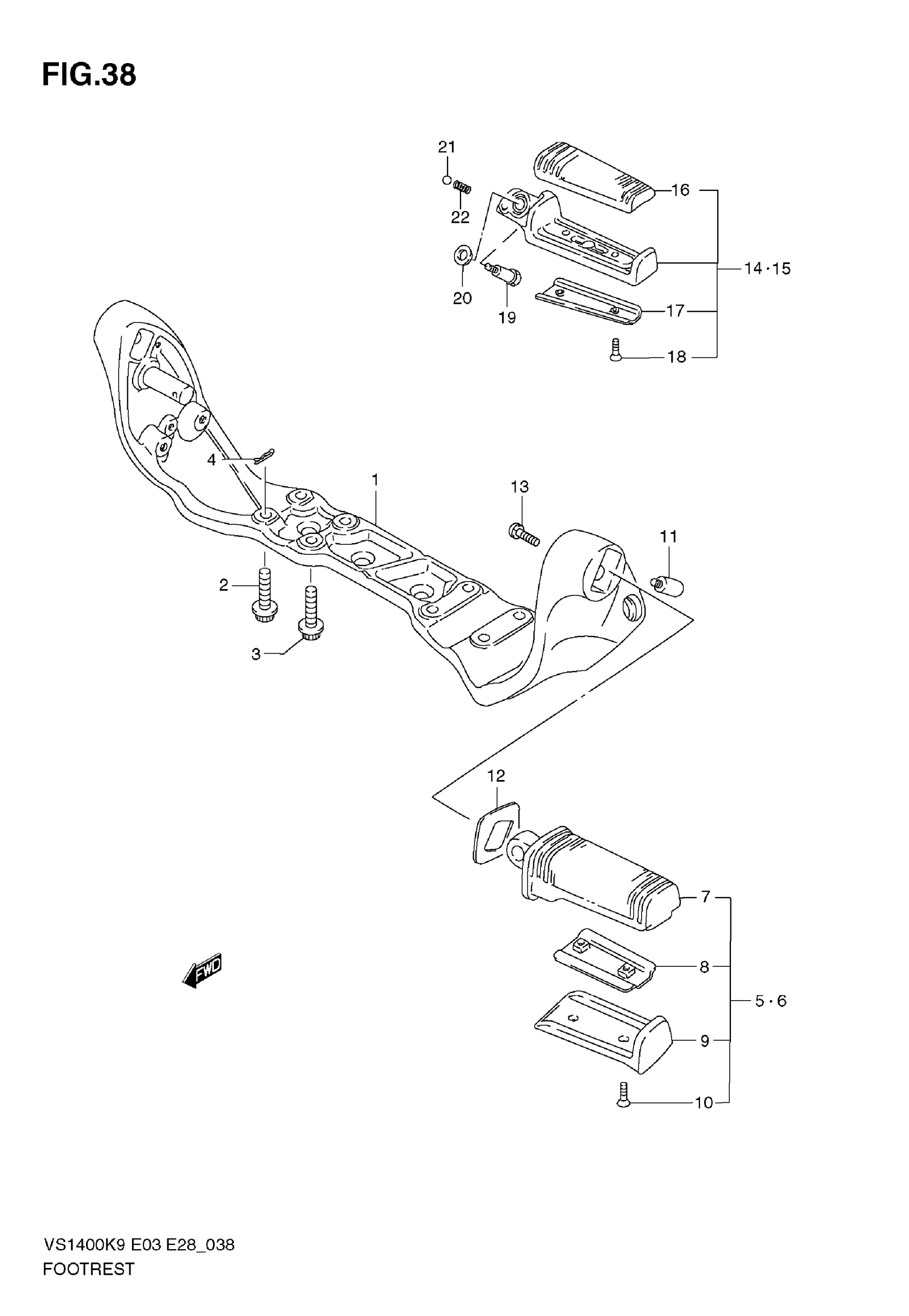

Suzuki VS1400 (2009) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST

43510-39B20

Unavailable

2

BOLT, OUTER

09106-08064

$3.91

3

BOLT, INNER

07120-0820B

$3.49

4

PIN

09385-08005

$2.14

5

FOOTREST ASSY, FRONT RH

43501-38B11

$152.40

6

FOOTREST ASSY, FRONT LH | Includes Item(s) 7 - 10

43502-38B11

$126.90

7

RUBBER,FR FOOTR This part replaces 43551-38B00.

43551-38B01

$13.15

8

PLATE, RUBBER

43580-38B10

$12.57

9

COVER, FRONT FOOTREST

43585-38B11

$80.83

10

SCREW

09127-05018

$2.40

11

BOLT, RUBBER

09106-06101

$3.29

12

WASHER, FRONT FOOTREST

43546-38B01

$7.51

13

SCREW, RUBBER STOPPER

02112-3512B

$2.58

14

FOOTREST ASSY,P This part replaces 43600-38E00.

43600-38E01

$75.53

15

FOOTREST ASSY,P | Includes Item(s) 16 - 18 This part replaces 43700-38E00.

43700-38E01

$65.73

16

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$8.57

17

PLATE, RUBBER STOPPER

43632-38A00

$7.37

18

SCREW

09127-05017

$2.47

19

BOLT

09111-06050

$3.91

20

SHIM

08221-08164

$2.15

21

BALL

06111-07004

$1.49

22

SPRING

09440-05005

$1.58
