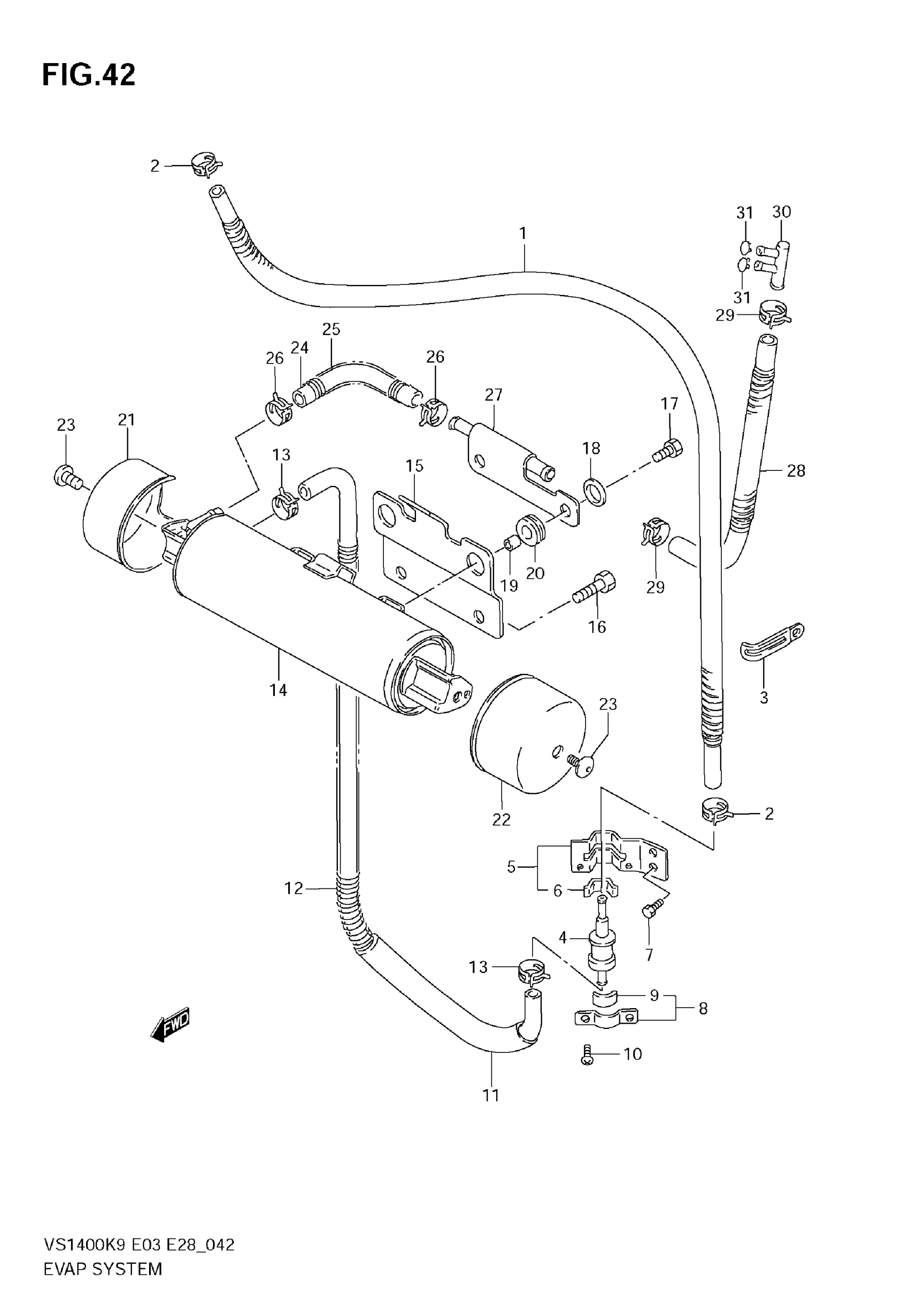

Suzuki VS1400 (2009) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, FUEL TANK JOINT

44460-38BA0

Unavailable

2

CLIP

09401-11413

$2.26

3

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

4

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

5

BRACKET, BREATHER VALVE | Includes Item(s) 6

44890-38B01

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

BOLT

01500-0510B

$1.80

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW

02142-0410B

Unavailable

11

HOSE, VALVE/CANISTER JOINT

44450-38BA0

Unavailable

12

SPRING

09440-14026

$10.81

13

CLIP

09401-11413

$2.26

14

CANISTER

17210-38B10

Unavailable

15

PLATE, CANISTER FITTING

44870-38B00

Unavailable

16

BOLT, PLATE

01580-0816B

Unavailable

17

BOLT, CANISTER

01580-0616B

Unavailable

18

WASHER

09160-06054

$1.62

19

SPACER

09180-06038

$1.98

20

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

21

COVER, CANISTER

44991-38B01

Unavailable

22

COVER, CANISTER

44991-38B10

Unavailable

23

SCREW

09139-06078

$2.79

24

HOSE, CANISTER PIPE JOINT

44445-38BA0

Unavailable

25

SPRING

09440-14025

Unavailable

26

CLIP

09401-11415

$2.23

27

PIPE, CANISTER

44940-38B00

Unavailable

28

HOSE, PIPE JOINT

44440-38BA0

Unavailable

29

CLIP

09401-11415

$2.23

30

SEPARATOR, VALVE

09367-06004

Unavailable

31

CLIP

09401-08401

$1.54
