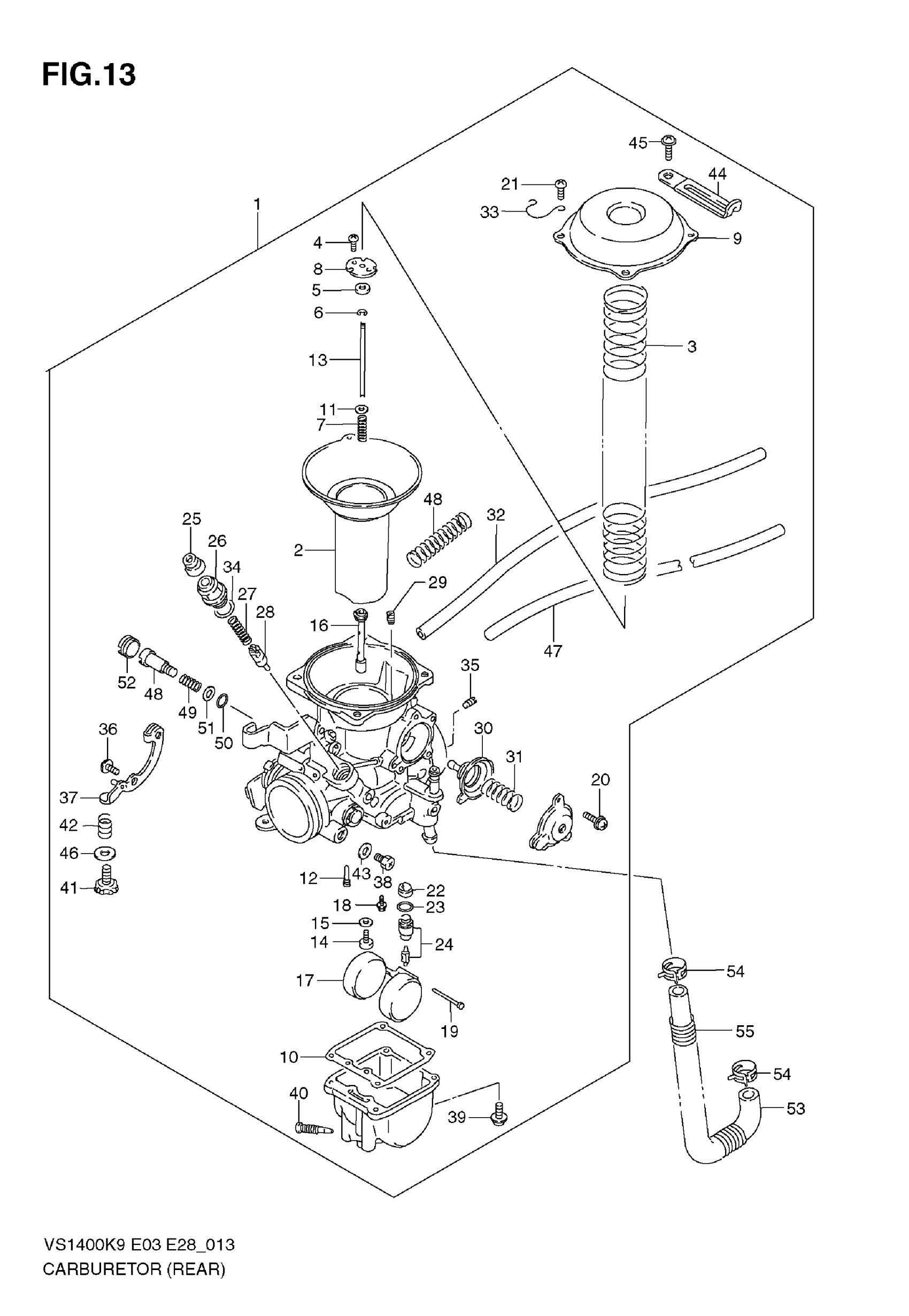

Suzuki VS1400 (2009) CARBURETOR (REAR) Diagram

#

Description
Price

1

CARBURETOR ASSY, REAR | E3,E28

13220-38BE1

$1,022.78

1

CARBURETOR ASSY, REAR | E33; Includes Item(s) 2 - 52

13220-38BG1

Unavailable

2

DIAPHRAGM ASSY

13500-38A10

$167.50

3

SPRING

13503-05A10

$12.57

4

SCREW

02112-33073

$2.60

5

RING

13387-47010

$7.22

6

E RING

13394-10010

$5.45

7

SPRING

13388-44030

$8.12

8

PLATE

13389-37400

$7.08

9

COVER

13502-45CE0

$41.05

10

GASKET

13251-38A10

$7.69

11

WASHER

13382-44030

$3.71

12

JET, PILOT (55)

09492-55014

$17.37

13

NEEDLE, JET (5D35-1)

13383-38B00

$18.43

14

.JET, MAIN (#140)

09491-28010

$9.69

15

WASHER

13382-03110

$2.80

16

JET, NEEDLE (P-2M)

09494-00895

$53.92

17

FLOAT

13252-23010

$20.65

18

SCREW

13602-05A10

$3.56

19

PIN

13254-92311

$2.07

20

SCREW

13602-19B50

$3.43

21

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

22

FILTER

13376-19F00

$10.28

23

O RING

13374-35C00

$5.99

24

VALVE ASSY, NEEDLE

13370-39A00

$60.40

25

.CAP This part replaces 13681-04010.

13681-04011

$4.93

26

HOLDER, GUIDE

13418-43410

$7.22

27

SPRING

13417-22010

$3.56

28

PLUNGER ASSY

13411-01400

$13.30

29

JET, PILOT AIR (1.55)

09493-31001

$16.87

30

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

31

SPRING

13481-38B40

$5.67

32

HOSE,5X10X600 | L:600!175 This part replaces 09352-50823-600.

44421-13ER0

$10.06

33

CLIP

13692-02500

$7.17

34

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

35

JET, PILOT AIR (40)

09492-40018

$18.02

36

SCREW

13602-05A30

$4.35

37

LEVER ASSY

13554-45C20

$41.63

38

SCREW

13605-73000

$11.95

39

SCREW

13601-04148

$2.81

40

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

41

ADJUSTER

13267-39E50

$14.20

42

SPRING

13271-93011

$5.32

43

WASHER

13249-78100

$2.92

44

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

45

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

46

WASHER

13277-37100

$2.15

47

HOSE ASSY | E33 L:430!150

13683-38B01

$34.98

48

PILOT (1,1/16)

13279-47070

$13.36

49

.SPRING (NT:45)

13268-47070

$4.34

50

O-RING This part replaces 13295-29900.

13295-29901

$4.34

51

WASHER

13291-29900

$1.98

52

PLUG

13281-05A00

$4.60

53

HOSE, FUEL (PUMP & CARB)

15801-38B01

$17.54

54

CLIP

09401-11415

$2.23

55

SPRING

09440-14030

$6.24
