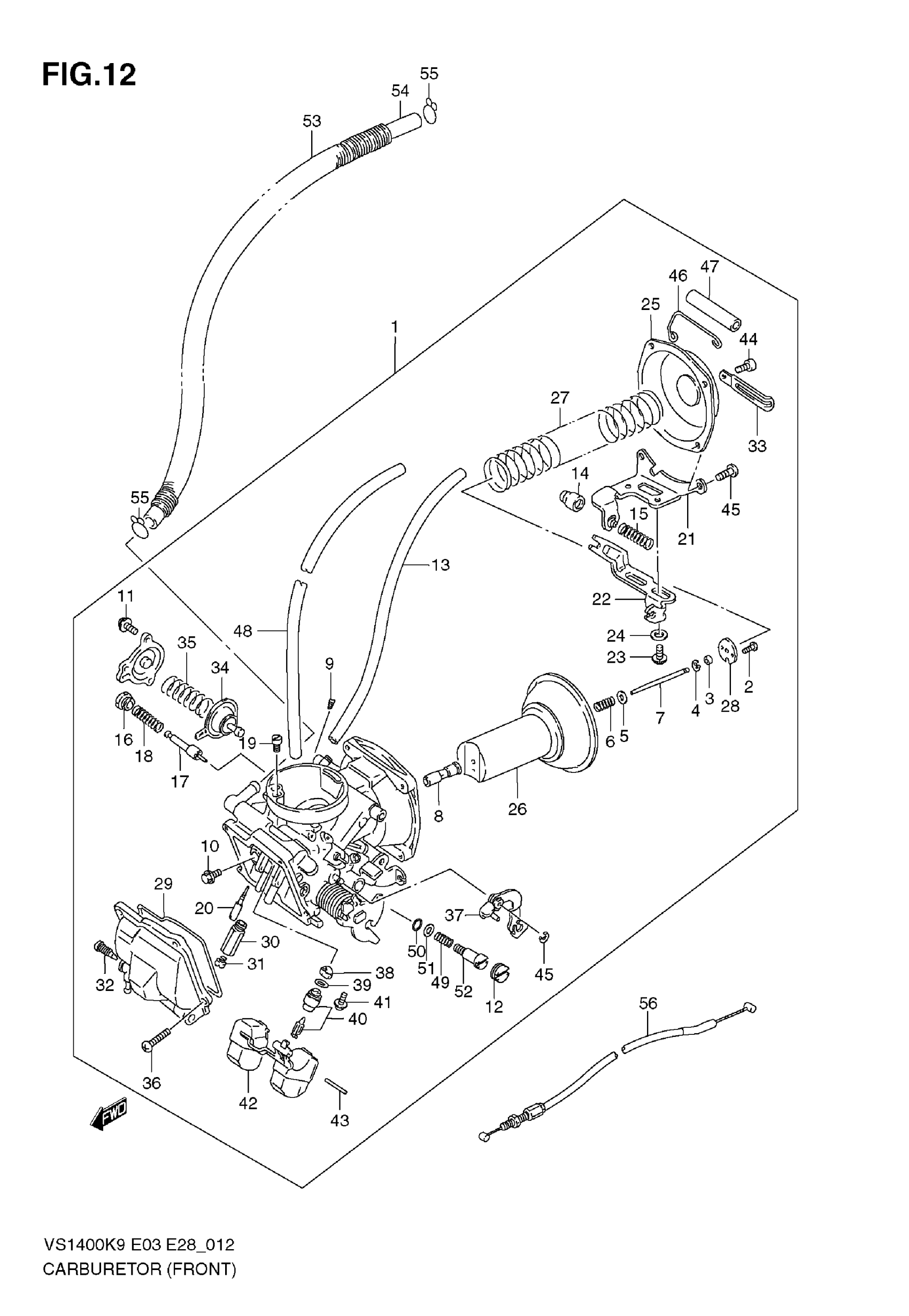

Suzuki VS1400 (2009) CARBURETOR (FRONT) Diagram

#

Description
Price

1

CARBURETOR ASSY, FRONT | E3,E28

13210-38BE1

Unavailable

1

CARBURETOR ASSY, FRONT | E33; Includes Item(s) 2 - 52

13210-38BG1

Unavailable

2

SCREW

02112-33073

$2.60

3

RING

13387-47010

$7.22

4

E RING

13394-10010

$5.45

5

WASHER

13382-44030

$3.71

6

SPRING

13388-44030

$8.12

7

NEEDLE, JET (5D51-1)

13383-38B40

$19.15

8

JET, NEEDLE (O-9M)

09494-00894

$51.93

9

JET, PILOT AIR (1.4)

09493-28006

$16.32

10

SCREW

13605-38B00

$7.95

11

SCREW

02112-04107

$1.55

12

PLUG

13281-05A00

$4.60

13

HOSE,5X10X600 | E3,E28 L:600!185 This part replaces 09352-50823-600.

44421-13ER0

$10.06

13

HOSE | E33

13683-38BG1

Unavailable

14

.CAP This part replaces 13681-04010.

13681-04011

$4.93

15

SPRING

13417-37100

$4.35

16

HOLDER, GUIDE

13418-05A10

$12.57

17

PLUNGER ASSY

13411-05300

$24.17

18

SPRING

13417-43010

$4.34

19

JET, PILOT AIR (70)

09492-70004

$11.83

20

JET, PILOT (50)

09492-50018

$17.37

21

BRACKET

13628-38B00

Unavailable

22

LEVER

13422-38B00

Unavailable

23

SCREW

13602-05A30

$4.35

24

WASHER

13332-05A20

$3.37

25

COVER

13502-38A00

$37.53

26

DIAPHRAGM ASSY This part replaces 13500-05A10.

13500-05A11

$115.12

27

SPRING

13503-38B00

$10.69

28

PLATE

13389-37400

$7.08

29

O RING

13251-38A00

$6.79

30

HOLDER

13385-05A11

$14.85

31

JET, MAIN (125)

09491-25014

$16.78

32

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

33

CLAMP

09404-06429

$1.83

34

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

35

SPRING

13481-38B40

$5.67

36

SCREW

13602-48B10

$3.43

37

LEVER ASSY

13554-45C20

$41.63

38

FILTER

13376-19F00

$10.28

39

O RING

13374-35C00

$5.99

40

VALVE ASSY, NEEDLE

13370-39A00

$60.40

41

SCREW

13602-05A10

$3.56

42

FLOAT

13250-38B00

$27.75

43

PIN, FLOAT

13254-20010

$4.28

44

SCREW

02112-05127

$1.97

45

E RING

13415-38300

$2.08

46

CLIP

13671-38A00

Unavailable

47

HOSE(6X10X600) | L:600!50 This part replaces 09352-60103-600.

09352-60104-600

$8.99

48

HOSE ASSY | E33

13683-38B01

$34.98

49

.SPRING (NT:45)

13268-47070

$4.34

50

O-RING This part replaces 13295-29900.

13295-29901

$4.34

51

WASHER

13291-29900

$1.98

52

SCREW

13279-47070

$13.36

53

SHIELD, FUEL HOSE HEAT

13684-38B10

$21.27

54

HOSE This part replaces 13683-38BE0.

13683-38BE1

$46.03

55

CLIP (ID:11)

09401-11403

$2.85

56

CABLE, ID SYNCRO

13641-38B03

$19.98
