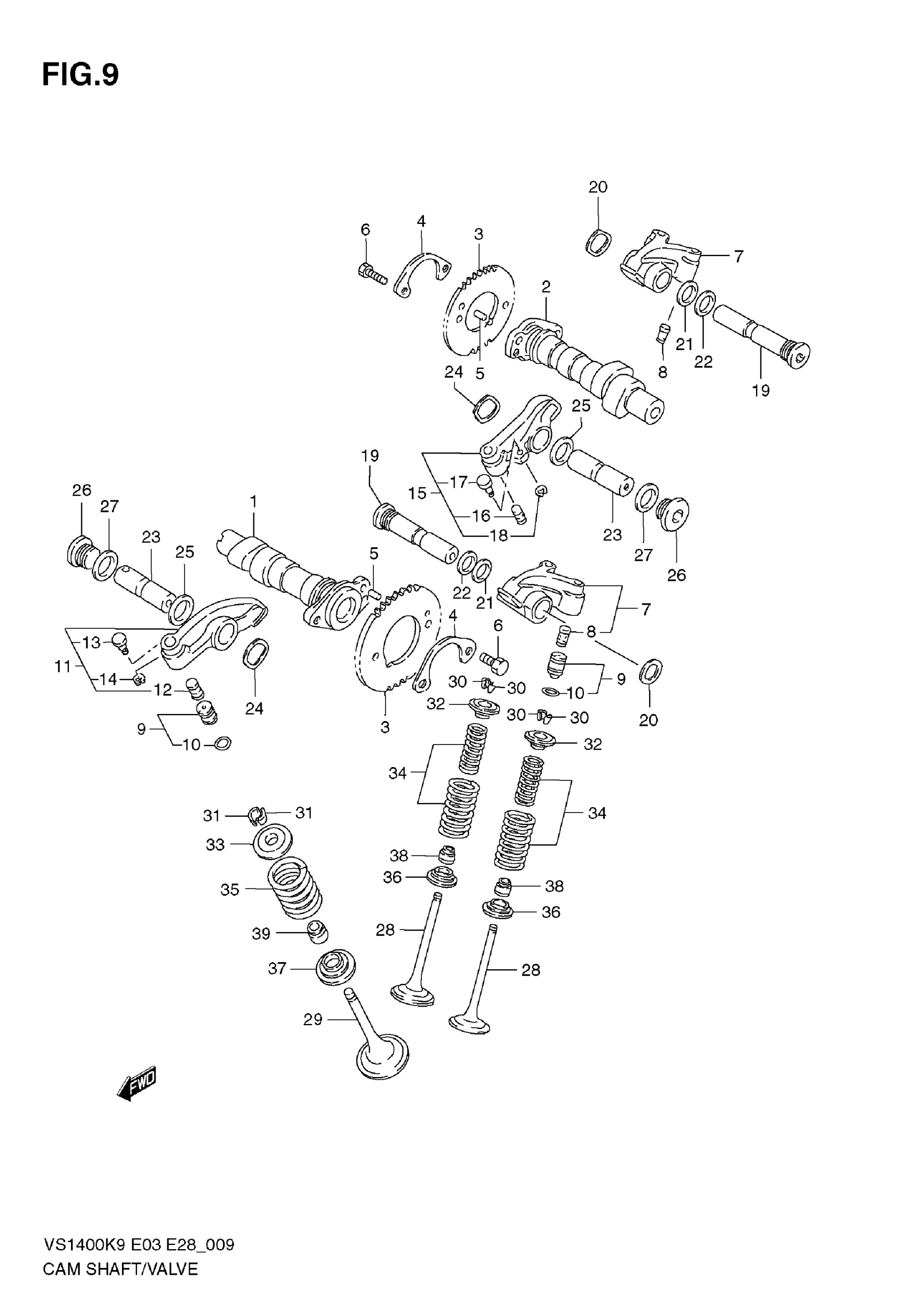

Suzuki VS1400 (2009) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT, FRONT

12711-38B00

Unavailable

2

CAMSHAFT, REAR

12713-38B00

Unavailable

3

SPROCKET, CAMSHAFT

12741-38B01

Unavailable

4

WASHER

12747-44001

$2.50

5

PIN

09261-05005

$1.49

6

BOLT (6X12.5)

09111-06027

$1.72

7

ARM, VALVE ROCKER, IN | Includes Item(s) 8

12840-38B01

Unavailable

8

CHAMBER, ADJUSTER

12863-38B00

$7.95

9

ADJUSTER, VALVE LASH | Includes Item(s) 10

12860-38B01

$86.13

10

O RING

12864-38B01

$8.18

11

ARM, VALVE ROCKER FRONT, EX | Includes Item(s) 12 - 14

12850-38B02

Unavailable

12

CHAMBER, ADJUSTER

12863-38B00

$7.95

13

PIN, DECOMP

12844-38B00

Unavailable

14

E RING

08332-1103A

$2.15

15

ARM, VALVE ROCKER REAR, EX | Includes Item(s) 16 - 18

12880-38B01

Unavailable

16

CHAMBER, ADJUSTER

12863-38B00

$7.95

17

PIN, DECOMP

12844-38B00

Unavailable

18

E RING

08332-1103A

$2.15

19

SHAFT, VALVE ROCKER ARM, IN

12861-38B00

Unavailable

20

WASHER, WAVE

09164-14012

Unavailable

21

WASHER

09181-14139

$2.60

22

GASKET

09168-16003

$1.91

23

SHAFT, VALVE ROCKER ARM, EX

12871-38B00

Unavailable

24

WASHER, WAVE

09164-16003

$2.45

25

WASHER

09160-16033

$2.90

26

PLUG, ROCKER ARM SHAFT

09248-18004

$15.42

27

GASKET

09168-18003

$1.49

28

VALVE, INTAKE

12911-38B00

$59.87

29

VALVE, EXHAUST

12912-38B00

$71.38

30

COTTER, VALVE

12932-24400

$1.94

31

COTTER, VALVE, EX

12932-82000

$3.05

32

RETAINER, SPRING, IN

12931-33201

$8.28

33

RETAINER, SPRING, EX

12931-45001

$8.12

34

SPRING SET, VALVE, IN

12920-06B00

$13.81

35

SPRING, VALVE, EX

12922-44110

Unavailable

36

SEAT, SPRING, IN

12933-33201

$6.05

37

SEAT, SPRING, EX

12933-45001

$6.27

38

OIL SEAL, IN (5.5X11X8.2)

09289-05015

$6.70

39

OIL SEAL, EX (7X14.4X9)

09289-07002

$7.98
