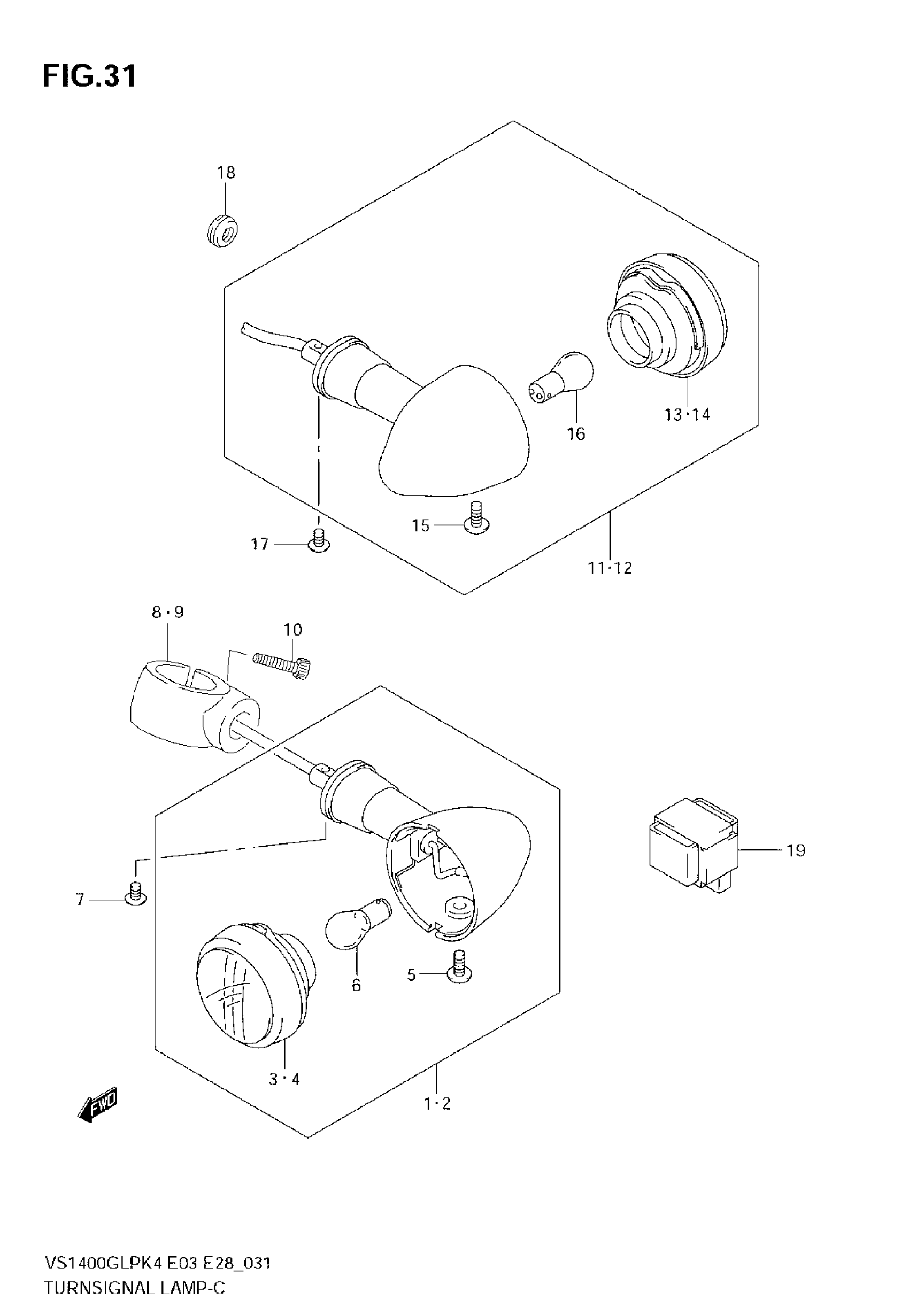

Suzuki VS1400 (2008) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL, R | MODEL K4/K5/K6

35601-38AB0

$140.17

1

LAMP ASSY, FRONT TURNSIGNAL, R | MODEL K7/K8

35601-38AD0

$139.48

2

LAMP ASSY, FRONT TURNSIGNAL, L | MODEL K4/K5/K6

35602-38AB0

$135.57

2

LAMP ASSY, FRONT TURNSIGNAL, L | MODEL K7/K8; Includes Item(s) 3 - 6

35602-38AD0

$114.67

3

LENS, RH

35610-38AA0

$31.91

4

LENS, LH

35630-38AA0

$31.91

5

SCREW

35623-38AA0

$5.11

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

7

SCREW

02142-06107

Unavailable

8

BRACKET, RH

35671-38B00

$134.78

9

BRACKET, LH

35681-38B00

Unavailable

10

BOLT

07130-06167

$3.16

11

LAMP ASSY, REAR TURNSIGNAL, R

35603-38AD0

$140.17

12

LAMP ASSY, REAR TURNSIGNAL, L | Includes Item(s) 13 - 16

35604-38AD0

$119.14

13

LENS, RH

35630-38AE1

$31.91

14

LENS, LH

35610-38AE1

$31.91

15

SCREW

35623-38AA0

$5.11

16

BULB (12V,21W)

09471-12045

$3.27

17

SCREW

02142-06107

Unavailable

18

GROMMET

09308-08011

$2.83

19

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

$58.97
