Description

Price

1

BRACKET, UNDER | Includes Item(s) 2

51410-38B21

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BOLT, LOWER

07130-10307

$4.41

4

BEARING, UPPER (25X47X15)

09265-25019

$56.53

5

DUST SEAL

51643-49002

$12.32

6

NUT, STEERING STEM

51631-28000

$17.37

7

BRACKET, UPPER

51311-39A10

Unavailable

8

NUT

51353-24B00

$30.67

9

WASHER

51356-24B01

$5.38

10

STAY, HANDLE

56231-38A50

$59.80

11

HOLDER, HANDLE LOWER

56221-38A01

$83.92

12

BOLT

07130-10257

$4.60

13

HOLDER, HANDLE UPPER

56211-38A01

$62.07

14

BOLT

07130-08307

$3.89

15

CAP

09250-06009

$3.42

16

CUSHION, HANDLE STAY UPPER

56240-38A42

$52.73

17

CUSHION, HANDLE STAY LOWER

56242-39A12

$46.22

18

WASHER

51354-38A40

$8.07

19

NUT

09159-10027

$3.10

20

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$87.06

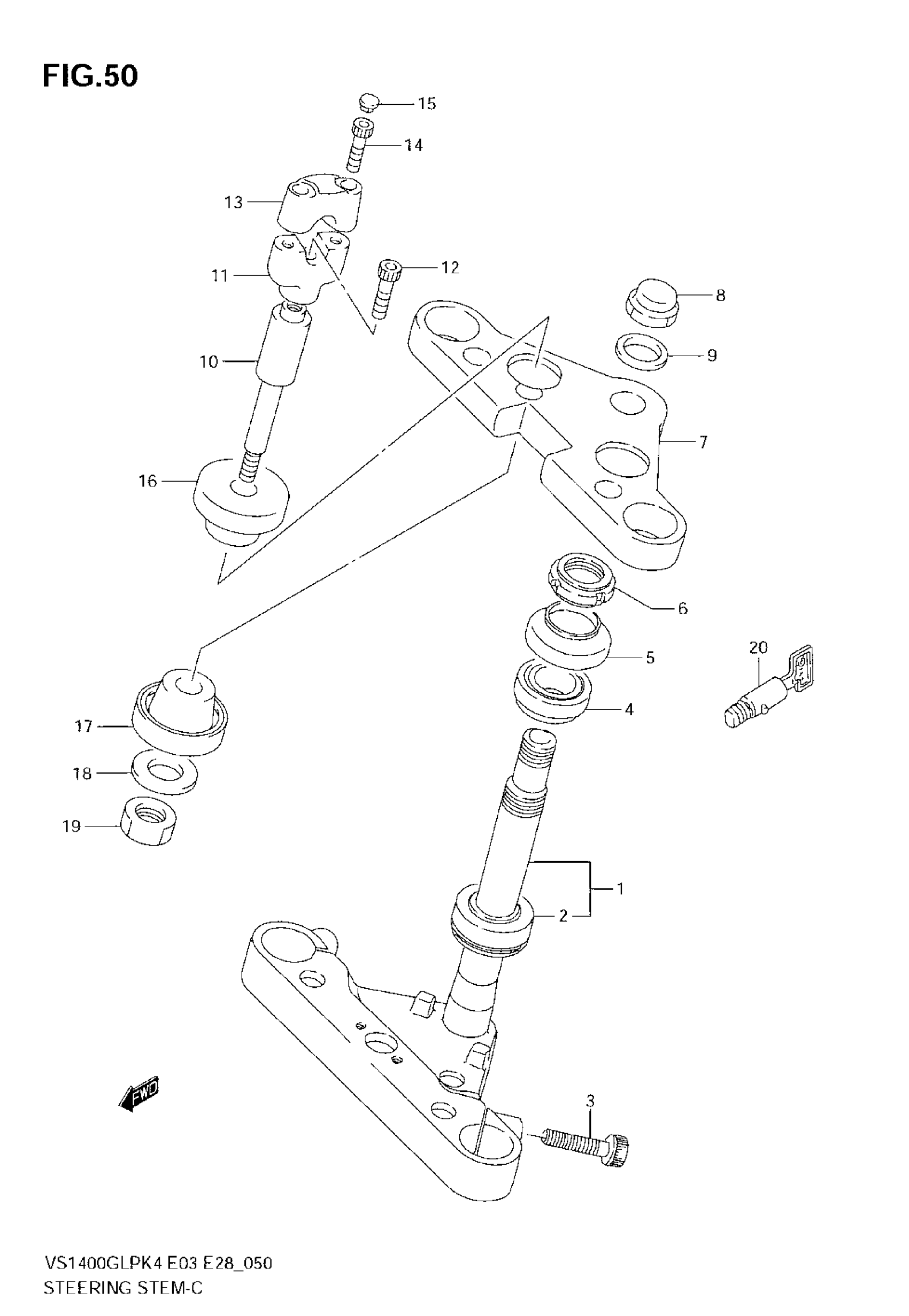

Suzuki VS1400 (2008) STEERING STEM (MODEL K4) Diagram

BRACKET, UNDER | Includes Item(s) 2

RT 30X55X17 BEA This part replaces 09265-30009.

BOLT, LOWER

BEARING, UPPER (25X47X15)

DUST SEAL

NUT, STEERING STEM

BRACKET, UPPER

NUT

WASHER

STAY, HANDLE

HOLDER, HANDLE LOWER

BOLT

HOLDER, HANDLE UPPER

BOLT

CAP

CUSHION, HANDLE STAY UPPER

CUSHION, HANDLE STAY LOWER

WASHER

NUT

LOCK ASSY,STEER This part replaces 51900-38810.
