Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-38B02

$649.60

2

BRACKET SET, FRONT

31150-38B00

Unavailable

3

O RING (D:2.1,ID:34.7) This part replaces 09280-35003.

09280-35005

$9.05

4

O RING This part replaces 31264-31300.

31264-32E00

$6.68

5

ARMATURE

31310-38B01

Unavailable

6

HOLDER SET, BRUSH

31132-38B00

$69.35

7

SPRING, BRUSH

31135-38B00

$5.40

8

TERMINAL SET, BRUSH

31130-38B00

$69.35

9

O RING

31143-49040

$3.71

10

BOLT This part replaces 31281-24B10.

31281-31D00

$8.65

11

BOLT (6X25)

09103-06212

$2.47

12

NUT

08361-3506A

$1.80

13

CLAMP (L:45)

09404-06429

$1.83

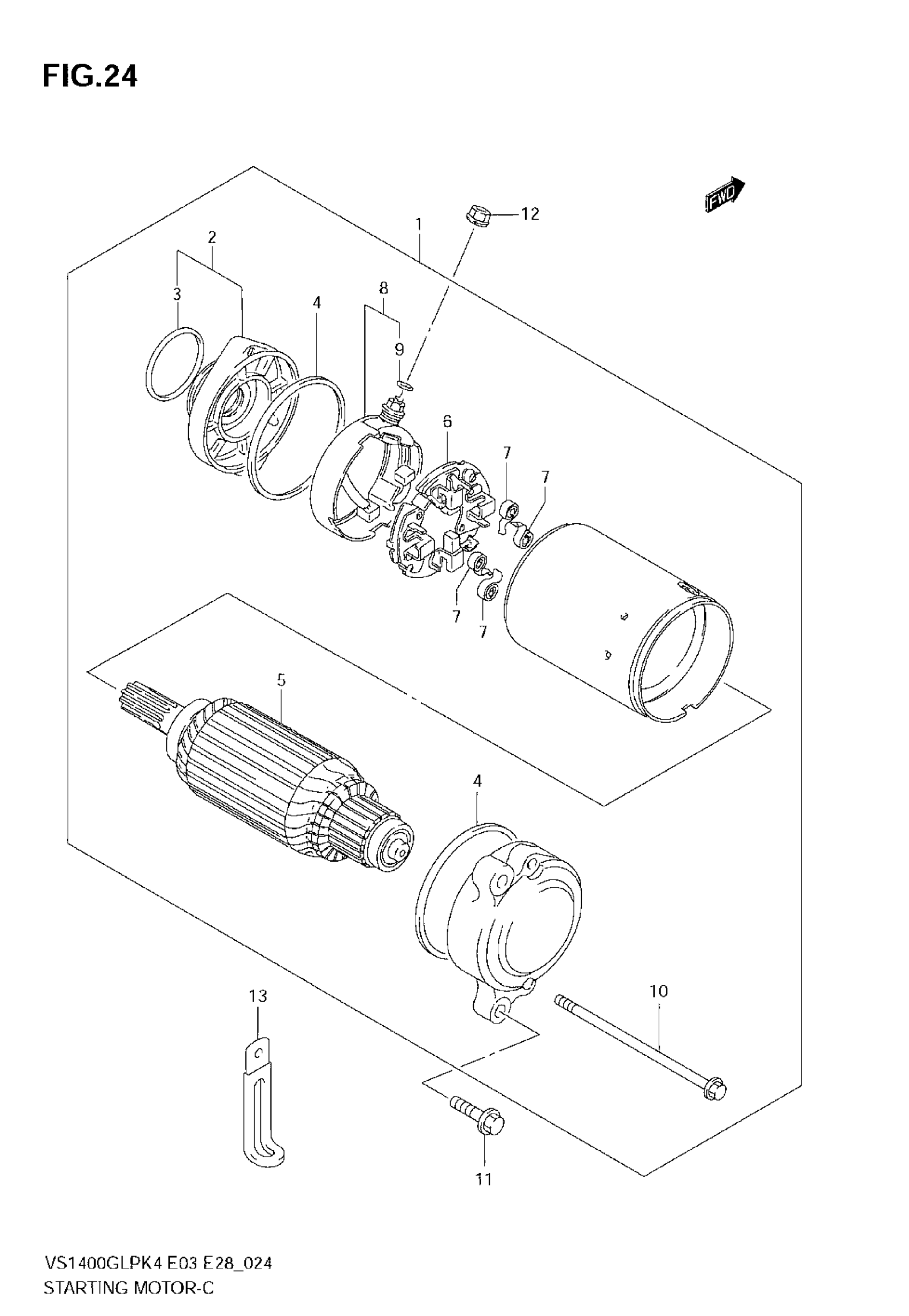

Suzuki VS1400 (2008) STARTING MOTOR Diagram
