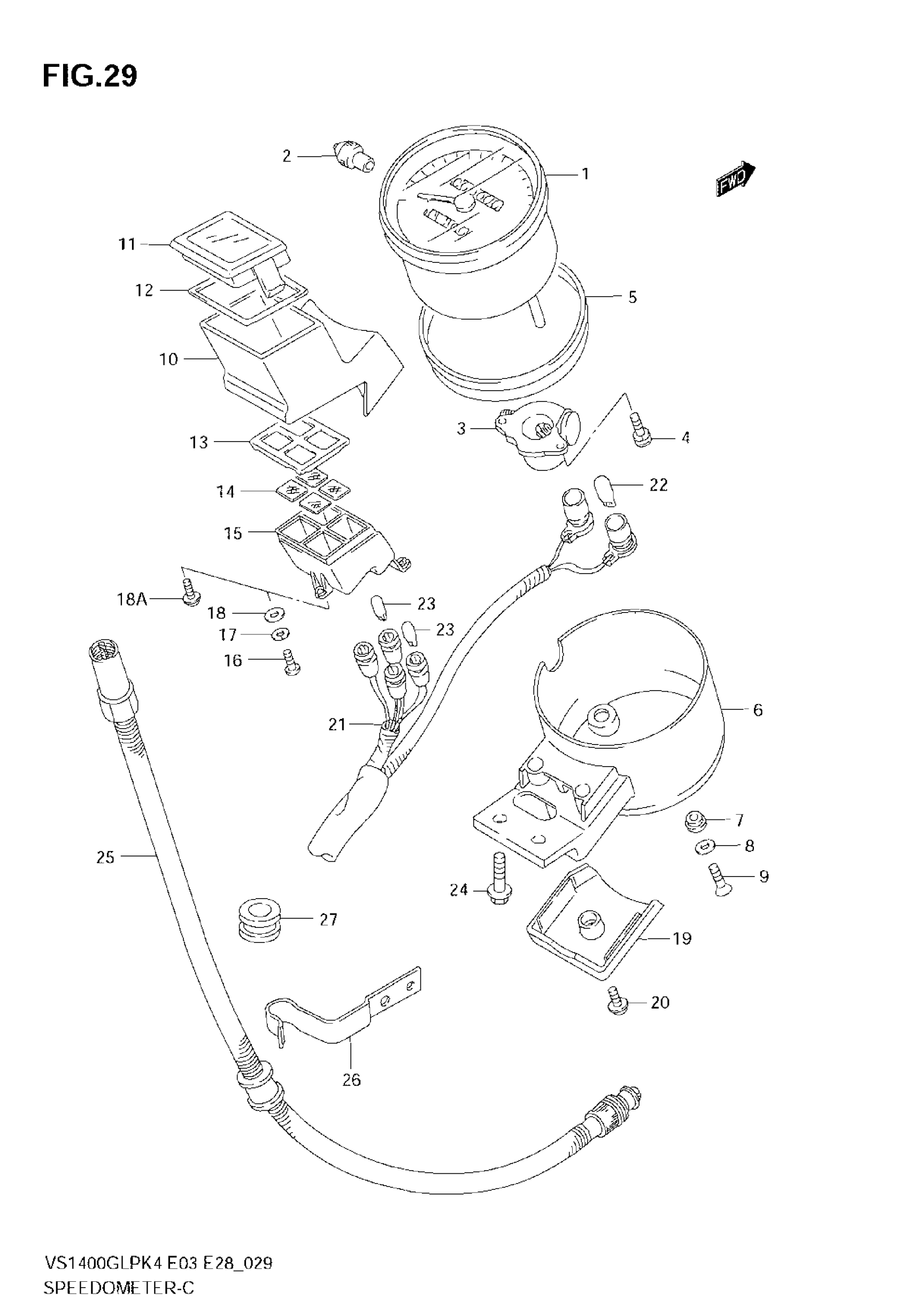

Suzuki VS1400 (2008) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-38B90

Unavailable

1

SPEEDOMETER (KILO) | E28

34110-38B60

Unavailable

2

KNOB, TRIP

34124-39A10

$15.92

3

BOX, METER GEAR

34131-19B00

Unavailable

4

SCREW

02112-3410A

$2.20

5

CUSHION, METER

34288-39A00

$12.21

6

COVER, METER

34193-38B00

$173.57

7

CUSHION This part replaces 34189-05A30.

34189-05A31

$5.32

8

WASHER

34181-38A00

$3.30

9

SCREW

02112-04087

$1.49

10

BOX, PILOT LAMP

36381-39A20

$107.25

11

LENS, PILOT BOX

36393-38B60

$16.13

12

CUSHION

36395-38A00

$7.37

13

PLATE, PILOT LENS

36386-38A00

Unavailable

14

LENS SET, PILOT LAMP

36300-38870

$14.00

15

CASE, PILOT LAMP

36382-38B30

$21.77

16

SCREW | MODEL K4/K5

02112-0308A

$1.80

17

LOCK WASHER | MODEL K4/K5 This part replaces 08321-21033.

08321-2103B

$1.49

18

WASHER | MODEL K4/K5 This part replaces 08322-01033.

08322-0103B

$2.45

18A

SCREW | MODEL K6/K7/K8

02112-73083

Unavailable

19

COVER, PILOT BOX | MODEL K4/K5/K6

34152-38B30

Unavailable

19

COVER, PILOT BOX | MODEL K7/K8

34152-38B31

Unavailable

20

SCREW This part replaces 02112-74083.

02112-7408B

$2.34

21

SOCKET, METER | MODEL K4/K5/K6

34173-38B60

Unavailable

21

SOCKET, METER | MODEL K7/K8

34173-38BA0

Unavailable

22

BULB (12V,3.4W)

09471-12028

$1.99

23

.BULB (12V1.7W)

09471-12108

$3.42

24

SCREW

02162-0616B

$2.03

25

CABLE ASSY,SPEE This part replaces 34910-38B11.

34910-38B12

$92.92

26

GUIDE, METER CABLE

34938-38A02

$10.65

27

GROMMET This part replaces 09308-13005.

09308-13006

$3.82
