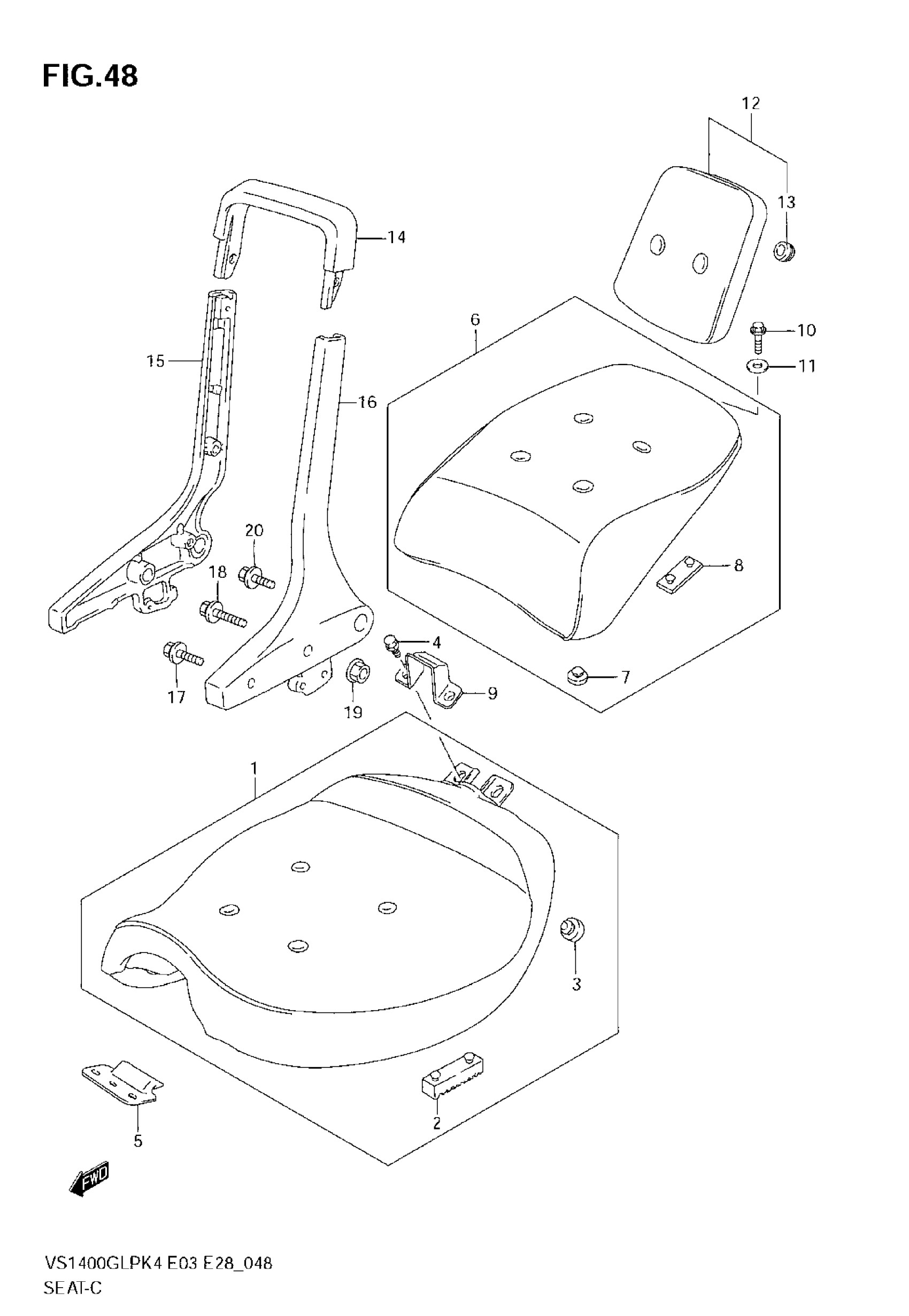

Suzuki VS1400 (2008) SEAT (MODEL K4) Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-38B60-E7T.

45100-38B61-E7T

$776.15

2

CUSHION

45148-38B01

$8.97

3

CUSHION

09321-10012

$2.92

4

BOLT This part replaces 02162-06203.

02162-0620C

$1.71

5

BRACKET, SEAT FRONT

45210-38B00

$19.72

6

SEAT ASSY, PILLION | Includes Item(s) 7 - 8

45300-38B60-E7T

Unavailable

7

CUSHION

09321-10022

$2.34

8

CUSHION, REAR

45149-38B00

Unavailable

9

BRACKET, SEAT FRONT

45119-38B00

$7.44

10

BOLT, PILLION REAR (6X17.5)

09111-06057

$5.00

11

WASHER

09160-09016

$2.30

12

PAD ASSY, SEAT | Includes Item(s) 13

45350-38A60-E7T

$169.53

13

CUSHION This part replaces 09320-09026.

09320-09062

$2.00

14

HANDLE, PILLION RIDER UPPER

46211-38B01

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 46212-38B01.

46212-38B11

Unavailable

16

HANDLE,PILLION This part replaces 46213-38B01.

46213-38B11

Unavailable

17

BOLT, FRONT This part replaces 01580-06403.

01580-0640B

$3.72

18

BOLT, CENTER This part replaces 01580-08453.

01580-0845B

$4.68

19

NUT This part replaces 08316-10083.

08316-1008B

$2.66

20

BOLT, REAR This part replaces 01580-06203.

01580-0620B

$3.30
