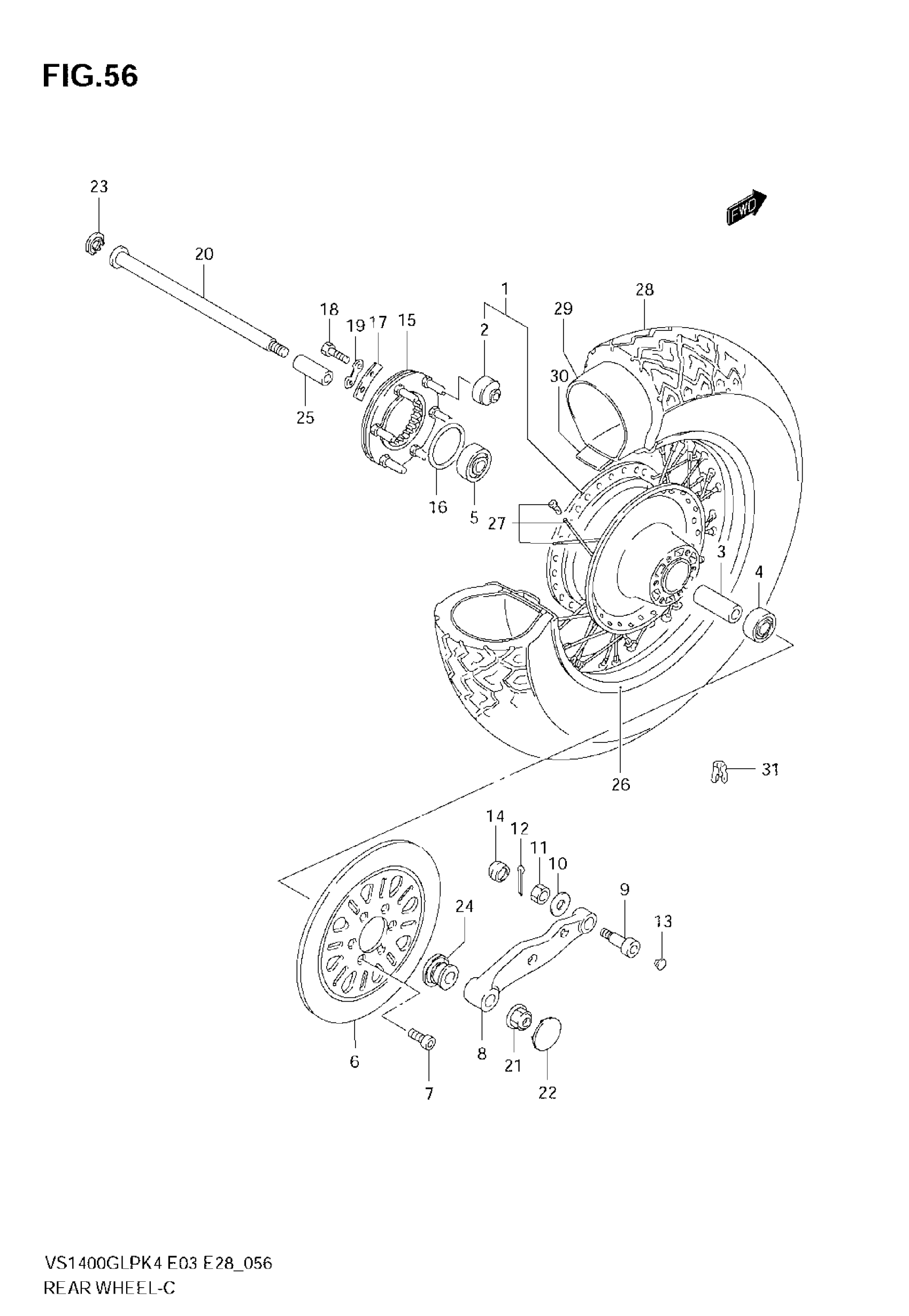

Suzuki VS1400 (2008) REAR WHEEL Diagram

HUB SET, REAR | Includes Item(s) 2

64100-38850

Unavailable

BUSHING (12X41X30)

09319-12029

Unavailable

SPACER, REAR HUB BEARING (17.5X25X113)

09180-17092

$25.33

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

BEARING, LH

08143-63037

$22.58

DISC, REAR BRAKE

69211-38B00

$307.10

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

BRACKET, CALIPER

69721-38B00

Unavailable

PIN BRACKET

64241-38B01

$23.77

WASHER

09160-12061

$2.15

NUT

09159-12026

$2.47

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

CAP, PIN

09250-08012

$2.15

CAP, NUT

09251-16001

$3.50

JOINT, HUB DRIVEN

64680-24A00

$277.25

O RING (ID:65,D:2.10)

09280-65003

$3.72

WASHER, THRUST

64677-45110

$2.92

BOLT (6X16)

09119-06049

$1.56

WASHER

09169-06030

$3.15

AXLE, REAR

64711-38B01

Unavailable

NUT

08319-3114A

$9.66

CAP, RH | RH

64791-38B00

$22.45

CAP, LH | LH

64792-38B00

$28.92

SPACER, RH

64740-38B00

$25.33

SPACER, LH (17.3X25X79.50)

09180-17088

Unavailable

RIM, WHEEL (MT4.00X15)

65311-38B04

$603.05

SPOKE SET, REAR WHEEL

65320-38B00

$265.62

TIRE, RR (170/80-15M/C 77H)

65110-38B20

Unavailable

TUBE ASSY, WHEEL INNER

65200-38B20

Unavailable

PROTECTOR,WHEEL This part replaces 65261-38B20.

65261-38B21

$6.88

BALANCER, WHEEL (20G) | MODEL K4 This part replaces 55412-38A00.

55412-41F00

$8.12

BALANCER WHEEL (30G) | MODEL K4 This part replaces 55413-38A00.

55413-41F00

$7.50

BALANCER, NO.2 | MODEL K5

55412-41F00

$8.12

BALANCER WHEEL (30G) | MODEL K5/K6/K7/K8

55413-41F00

$7.50

BALANCER WHEEL (15G) | MODEL K6/K7/K8

55411-26G00

$7.73
