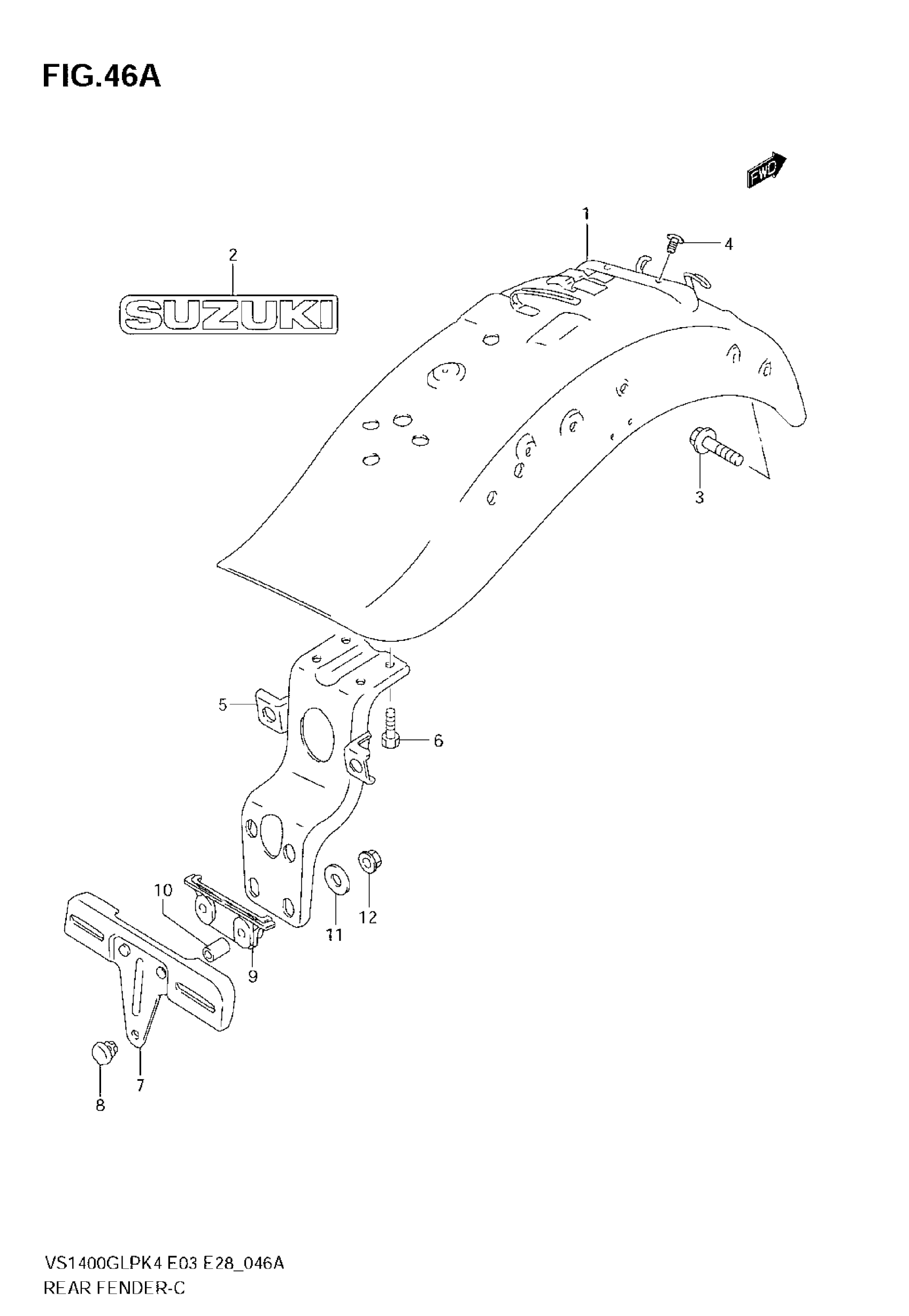

Suzuki VS1400 (2008) REAR FENDER (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63100-39B00-YAY.

63110-38B01-13L

Unavailable

1

FENDER, REAR (GRAY) | MODEL K5

63100-39B00-YU8

Unavailable

1

FENDER, REAR (RED) | MODEL K6

63100-39B00-YHL

Unavailable

1

FENDER, REAR (BLUE) | MODEL K7

63100-39B00-YBA

Unavailable

1

FENDER, REAR (GOLD) | MODEL K8; Includes Item(s) 2

63100-39B00-YLC

Unavailable

2

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

3

BOLT

01550-0820B

$2.83

4

CAP (BLACK)

09250-05011-5PK

Unavailable

5

BRACKET, LAMP

63460-38B00

$104.18

6

BOLT

01570-0612B

Unavailable

7

PLATE, LICENSE

63463-38B10

$45.38

8

CUSHION This part replaces 09321-08005.

09321-08025

$2.38

9

CUSHION, PLATE

63464-38B00

$17.23

10

SPACER

09180-05050

$4.68

11

WASHER | MODEL K5/K6

09160-05501

$1.84

11

WASHER (5.5X20X1.2) | MODEL K7/K8

09160-05051

Unavailable

12

NUT

08316-2005B

$2.80
